Electric Industrial Exhaust Fan , 25mm Mini Explosion Proof Ventilation Fan For Fatory Outlet
Electric Industrial Exhaust Fan , 25mm Mini Explosion Proof Ventilation Fan For Fatory Outlet
Specifications
Brand Name :
MX
Model Number :
MX8025ABH22
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
200pcs
Price :
US$3 - 5
Payment Terms :
T/T / PAYPAL
Supply Ability :
200,000pcs per month
Delivery Time :
7-15 working days after received your payment
Packaging Details :
Carton
Size :
80mm x 80mm x 25mm
Voltage :
1120V / 220V
Speed :
2400 / 3000RPM
Beraing Type :
Ball Bearing
Motor :
Impedance Protected
Frame :
Aluminum
Description

Electric Industrial Exhaust Fan , 25mm Mini Explosion Proof Ventilation Fan For Fatory Outlet

220V AC Exhaust Fan 80mm x 80mm x 25mm , high air flow and quiet , are widely used in industrial ventilation , as well as industrial production equipment , home appliances , medical equipment etc.

Description :

  • 220V AC FAN , used for cooling and ventilation.
  • Frame : Aluminum ADC-12 , Painted Black
  • Impeller : Plastic With 5 Blades
  • Stator& Rotor : Silicon steel
  • Magnet Wires : Copper 1 PEW
  • Bobbin : PA-66 UL 94 V-0
  • Bearing Type : Ball Bearing
Electric Industrial Exhaust Fan , 25mm Mini Explosion Proof Ventilation Fan For Fatory Outlet

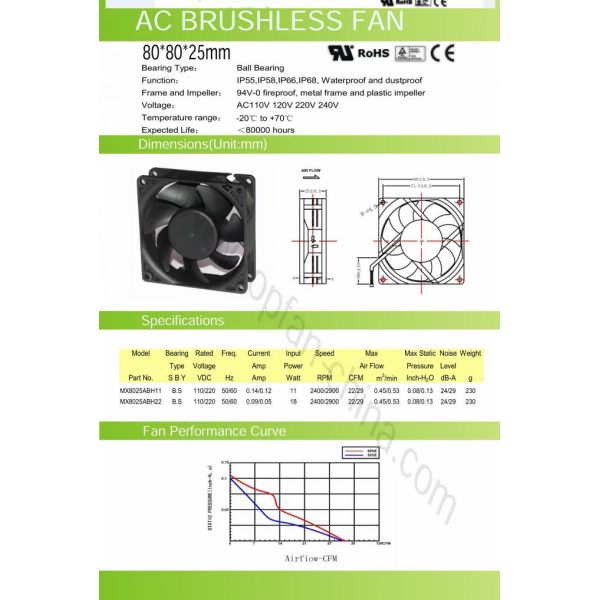

Specification

Model MX8025ABH22
Outline Dimension 80mm x 80mm x 25mm
Rated Voltage AC 220V
Voltage Range AC 200V~240V
Frequency 50/60Hz
Rated Current 0.33/0.28A±10%
Power Consumption 55/58W±10%
Speed 2400/3000RPM±10%
Max. Air flow 7/10CFM±10%
Max. Static Pressure 0.07/0.12Inch-H2O
Noise Level 27/28dB(A)
Weight 150g
Dielectric Strength 1800V/0.5mA/3s
Temperature Test of Run t=<70K
Locked Rotor Protection t=<130K
Environmental Specification

Operating Temperature:-20℃~70℃

Operating Humidity:20%~85%RH
