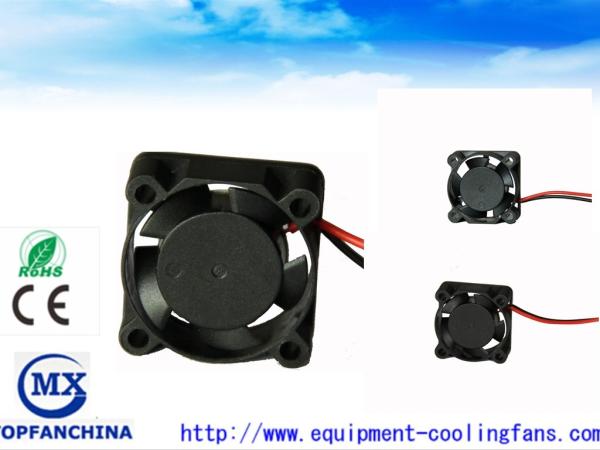

High Pressure 11000RPM DC Axial Fans 12V 25mm 2.44CFM with Sleeve Bearing
High Pressure 11000RPM DC Axial Fans 12V 25mm 2.44CFM with Sleeve Bearing
High Pressure 11000RPM DC Axial Fans 12V 25mm 2.44CFM with Sleeve Bearing
High Pressure 11000RPM DC Axial Fans 12V 25mm 2.44CFM with Sleeve Bearing
High Pressure 11000RPM DC Axial Fans 12V 25mm 2.44CFM with Sleeve Bearing
High Pressure 11000RPM DC Axial Fans 12V 25mm 2.44CFM with Sleeve Bearing
Specifications
Brand Name :
MX
Model Number :
MX2510AB(S/Y)U1
Certification :
CE/ROHS
Place of Origin :
Shen zhen,China
MOQ :
100pcs / 500pcs / 1000pcs / 2000pcs / 5000pcs / 10000pcs
Payment Terms :
T/T, Western Union
Supply Ability :
10000 / pieces / a week
Delivery Time :
7-15 working days
Packaging Details :
carton box
Current Amp :
0.10A
Rated Voltage :
12V
Bearing Type :
Sleeve Bearing / Ball Bearing / Hydraulic Bearing
Input Power :
1.2W
Speed :
12000rpm
Max Air Flow :
2.24cfm
Niose :
25dBA
Color :
Black
Description

High Pressure 11000RPM DC Axial Fans 12V 25mm 2.44CFM with Sleeve Bearing

1 . Scope

This documentation defines the thermal, mechanical & electrical characteristics of EC DC FAN MX2510AB(S/Y)U1 .

2 . CHARACTERISTICE ＆ DEFINITION

2 . 1 All rated characteristics were specified as per data sheet enclosed .

2 . 2 Rated Current: Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage .

2 . 3 Rated Speed: Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage .

2 . 4 Start Voltage : The voltage which is able to start the fan to operate by suddenly switching “ ON ”

ITEM SPECIFICATION/CONDITION

BEARING TYPE: Sleeve Bearing

RATING VOLTAGE: DC 12V

RATED VOLTAGE: DC 8V-13.8V

START-UP VOLTAGG: DC 6.0V (ON/OFF

RATED CURRENT: 0.10A±10﹪　

RATED SPEED: 11000RPM±10%

AIR FLOW: 2.44CFM

AIR PRESUURE: 5.65mmH2O

NOISE LEVEL: 25.33dB(A)

PROFECFION TRPE

RESISTANCE PROFECTED: YES

AUTO START: NO

TACHOMETER OUTPUT: NO

LOCK ROTOR ALARM OUTPUT: NO

PULSE WIDTH MODULATION : NO

THERMAL SPEED CONTROLLED: NO
High Pressure 11000RPM DC Axial Fans 12V 25mm 2.44CFM with Sleeve Bearing
