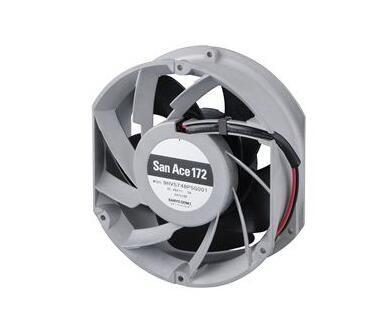

172 × 150 × 51 mm High Air Flow DC Axial Cooling Fans / High Speed DC Cooler fan

San Ace High Speed Computer Case Cooling Fan 172 × 150 × 51 mm , are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Gemneral Specification:

Frame and Impeller: Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-1)
Expected life : See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage)
Motor protection function : Locked rotor burnout protection, Reverse polarity protection
Dielectric strength: 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
Insulation resistance :10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)
Sound pressure level (SPL): At 1 m away from the air inlet
Storage temperature : -30 to +70˚C (Non-condensing)
Lead wire : Red Black or Blue Sensor Yellow
Mass : 90 g

Specifications:

The models listed below have pulse sensors with PWM control function

* PWM frequency: 25 kHz
Other sensor specifcations are available as options. Refer to the index (p. 558).

Electrical Specification:

Airflow - Static Pressure Characteristics / PWM Duty - Speed Characteristics Example

9SG5724P5H61 With pulse sensor with PWM control function

9SG5724P5H61 With pulse sensor with PWM control function

9SG5748P5H01 With pulse sensor with PWM control function

Dimensions (Unit:mm)

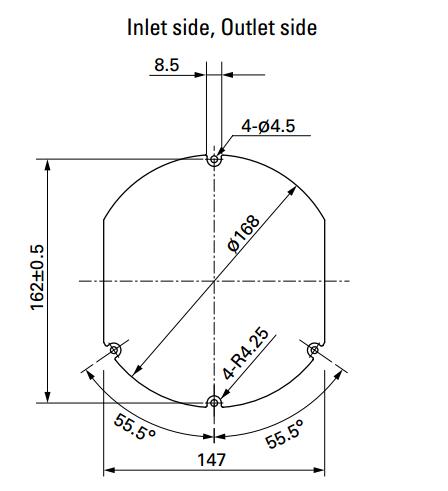

Reference Dimensions of Mounting Holes and Vent Opening (unit: mm)

■ Options
Finger guards page:
Model no.: 109-319J, 109-319E, 109-319H, 109-320

Shipment

You could choose the shipping way by yourself .

You could choose the freight forward company by yourself .

We could arrang the shipment according to your require .

If you have any requirements you could contact me soon .

1 . Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )

2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;

Fans quantity : over 5K , the delivery time is 15 - 20working days

3 . International express : UPS / DHL / FEDEX and so on .
