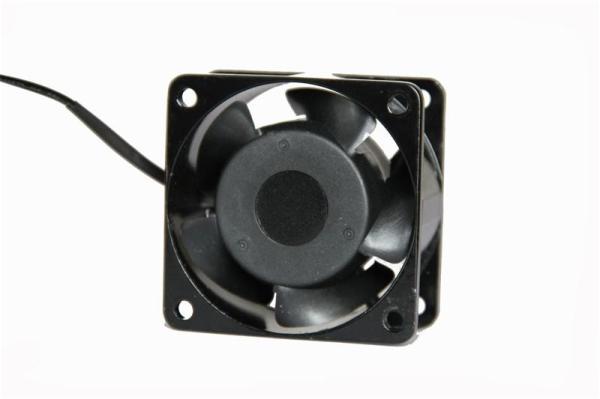

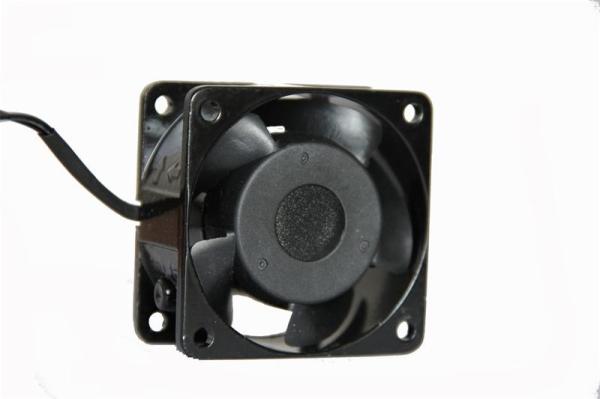

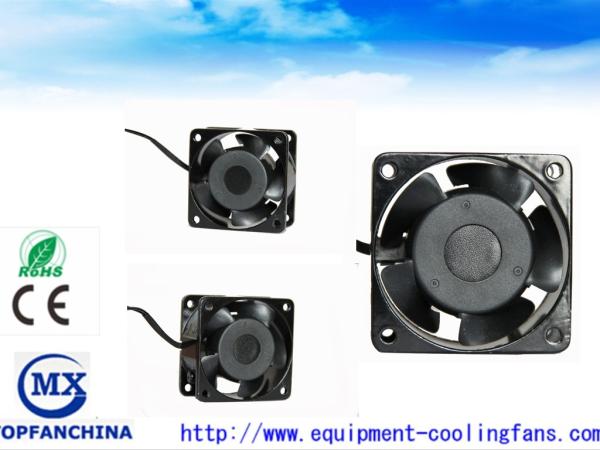

Low Noise 60mm Explosion Proof Exhaust Fan , 220V / 240V AC Fridge Cooling Fan
Low Noise 60mm Explosion Proof Exhaust Fan , 220V / 240V AC Fridge Cooling Fan
Low Noise 60mm Explosion Proof Exhaust Fan , 220V / 240V AC Fridge Cooling Fan
Low Noise 60mm Explosion Proof Exhaust Fan , 220V / 240V AC Fridge Cooling Fan
Low Noise 60mm Explosion Proof Exhaust Fan , 220V / 240V AC Fridge Cooling Fan
Low Noise 60mm Explosion Proof Exhaust Fan , 220V / 240V AC Fridge Cooling Fan
Low Noise 60mm Explosion Proof Exhaust Fan , 220V / 240V AC Fridge Cooling Fan
Low Noise 60mm Explosion Proof Exhaust Fan , 220V / 240V AC Fridge Cooling Fan
Low Noise 60mm Explosion Proof Exhaust Fan , 220V / 240V AC Fridge Cooling Fan
Low Noise 60mm Explosion Proof Exhaust Fan , 220V / 240V AC Fridge Cooling Fan
Specifications
Brand Name :
MX
Model Number :
MX6030ABH22
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton
Product Name :
Explosion Proof Exhaust Fan 60*60*30mm , AC Fridge Fan Motor , AC Motor Fan For Industrial 110V 220V
Voltage :
110V 120V 220V 240V 380V
Frequency :
50/60hz
Power Consumption :
6/7W
Air Flow :
7/10CFM
Weight :
150g
Description

Explosion Proof Exhaust Fan 60*60*30mm , AC Fridge Fan Motor , AC Motor Fan For Industrial 110V 220V

60*60*30mm AC fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 110/120V 220/240V AC FAN,used for cooling and ventilation.
  • Frame: Aluminum ADC-12,Painted Black
  • Blade:metal
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 1 PEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Ball Bearing

Specification:

Model Bearing Type Rated Voltage Freq. Current Amp Input Power Speed Max Air Flow Max Static Pressure Noise Level Weight
Part No. S B Y VDC Hz Amp Watt RPM CFM m3/min Inch-H2O dB-A g
MX6030ABH11 B 110/120 50/60 0.042/0.04 6 2400/3000 7.0/10 0.23/0.29 0.07/0.12 27/29 150
MX6030ABH22 B 220/240 50/60 0.04/0.03 7 2400/3000 7.0/10 0.23/0.29 0.07/0.12 27/29 150

Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃

Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃

Humidity:20%~95%RH

03

Life

50000H

Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0

Dimension:

Low Noise 60mm Explosion Proof Exhaust Fan , 220V / 240V AC Fridge Cooling FanLow Noise 60mm Explosion Proof Exhaust Fan , 220V / 240V AC Fridge Cooling Fan
