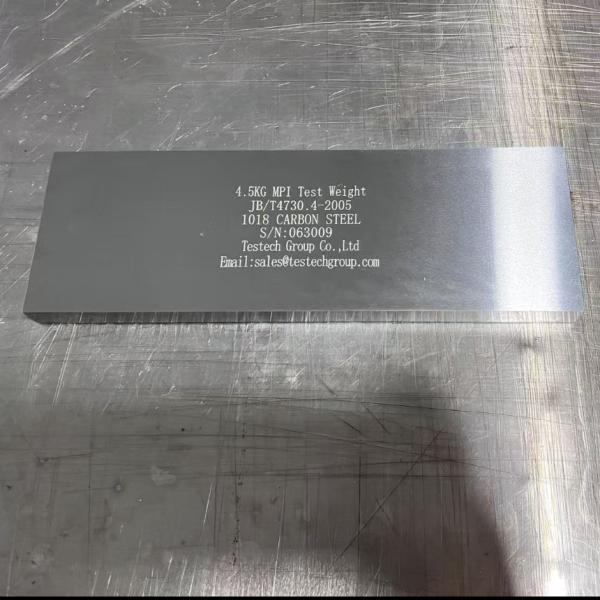

4.5kg 12kg 18kg 118N 177N Lifting Force Test Block for MPI Magnetic Particle Inspection Calibration
4.5kg 12kg 18kg 118N 177N Lifting Force Test Block for MPI Magnetic Particle Inspection Calibration
4.5kg 12kg 18kg 118N 177N Lifting Force Test Block for MPI Magnetic Particle Inspection Calibration
4.5kg 12kg 18kg 118N 177N Lifting Force Test Block for MPI Magnetic Particle Inspection Calibration
4.5kg 12kg 18kg 118N 177N Lifting Force Test Block for MPI Magnetic Particle Inspection Calibration
4.5kg 12kg 18kg 118N 177N Lifting Force Test Block for MPI Magnetic Particle Inspection Calibration
Specifications
Certification :
ISO, CE
Payment Terms :
T/T,Western Union,Credit card,PAYPAL
Product Name: :
Magnetic Particle Lifting Force Dead Weight Test Block
Delivery Time :
5-8 workdays
Material: :
45# Steel
Feature: :
Standard Dead Weight Block, Stable Calibration Reference
Standards: :
ASME, JB/T6066-200
Place of Origin :
CHINA
Supply Ability :
100pcs
Application: :
Calibration of Magnetic Particle Inspection (MPI) Yoke Lifting Capacity
Packaging Details :
In carton or wooden
Step Quantity:Lifting Force: :
N1:45N; N2:118N; N3:177N
MOQ :
1 piece
Brand Name :
TESTECH
Dead Weight: :
N1:4.5kgs; N2:12kgs; N3:18kgs
Description
Magnetic Particle Inspection Lifting Force Test Blocks
Precision calibration test blocks designed for MPI magnetic particle inspection equipment calibration. Available in multiple weight and force specifications to meet various testing standards.
Product Overview
N1 45N magnetic particle lifting force test blocks are essential tools for calibrating portable magnetic particle testing machines. These blocks measure the magnetic yoke's attraction force to ferromagnetic materials at maximum magnetic pole spacing.
Key Applications
  • Calibration of portable magnetic particle testing equipment
  • Verification of magnetic yoke lifting force specifications
  • Quality assurance in non-destructive testing processes
  • Compliance testing for industry standards
Technical Specifications
Test Block Type Lifting Force Weight
N1 Dead Weight Test Block 45N 4.5 kg
N2 Dead Weight Test Block 118N 12 kg
N3 Dead Weight Test Block 177N 18 kg
Performance Requirements
  • AC electromagnetic yoke: Minimum 45N lifting force at maximum spacing
  • DC electromagnetic yoke: Minimum 177N lifting force at maximum spacing
  • Cross magnetic yoke: Minimum 118N lifting force (0.5mm gap between magnetic pole and workpiece surface)
Standards Compliance & Material
Manufactured in compliance with ASME and JB/T6066-200 standards. Constructed from high-quality 45 steel for consistent magnetic properties and durability.
Additional Products
We also offer other magnetic particle testing standard blocks to meet comprehensive calibration needs.
