Ultrasonic Step Calibration Block Copper Aluminum Stainless Steel Carbon Steel for Ultrasonic Thickness Gauge Flaw Detector Calibration
Ultrasonic Step Calibration Block Copper Aluminum Stainless Steel Carbon Steel for Ultrasonic Thickness Gauge Flaw Detector Calibration
Ultrasonic Step Calibration Block Copper Aluminum Stainless Steel Carbon Steel for Ultrasonic Thickness Gauge Flaw Detector Calibration
Ultrasonic Step Calibration Block Copper Aluminum Stainless Steel Carbon Steel for Ultrasonic Thickness Gauge Flaw Detector Calibration
Ultrasonic Step Calibration Block Copper Aluminum Stainless Steel Carbon Steel for Ultrasonic Thickness Gauge Flaw Detector Calibration
Ultrasonic Step Calibration Block Copper Aluminum Stainless Steel Carbon Steel for Ultrasonic Thickness Gauge Flaw Detector Calibration
Ultrasonic Step Calibration Block Copper Aluminum Stainless Steel Carbon Steel for Ultrasonic Thickness Gauge Flaw Detector Calibration
Ultrasonic Step Calibration Block Copper Aluminum Stainless Steel Carbon Steel for Ultrasonic Thickness Gauge Flaw Detector Calibration
Specifications
Certification :
ISO, CE
Application: :
Ultrasonic Thickness Gauge Calibration, NDT Testing
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,Credit card,PAYPAL
Product Name: :
Ultrasonic Step Calibration Block
Delivery Time :
5-8 workdays
Material: :
Copper Aluminum Stainless Steel Carbon Steel
Industry Standard: :
Compliant with ASTM E797, ISO 16810
Supply Ability :
100pcs
OEM & ODM: :
Support
Packaging Details :
In carton or wooden
Step Quantity: :
4 Step / 5 Step / 6 Step / 10 Step
MOQ :
1 piece
Brand Name :
TESTECH
Type: :
Metric Step Block / Inch Step Block / Pipe Step Block
Description

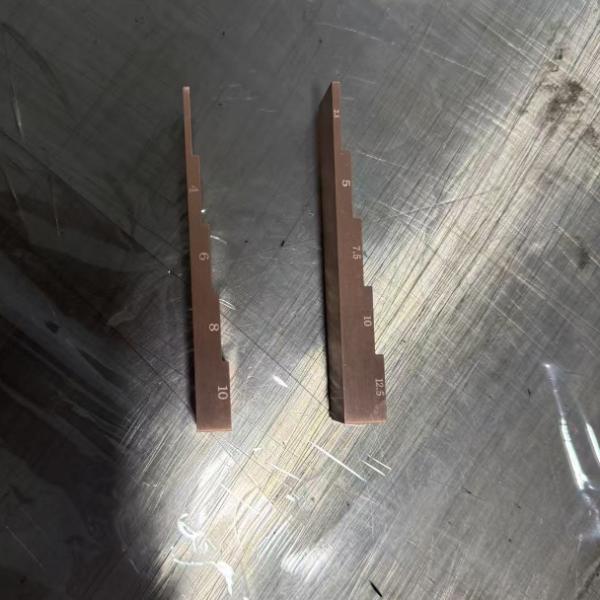

Ultrasonic Step Calibration Blocks
Precision calibration blocks for ultrasonic thickness gauges and flaw detectors, available in copper, aluminum, stainless steel, and carbon steel materials.

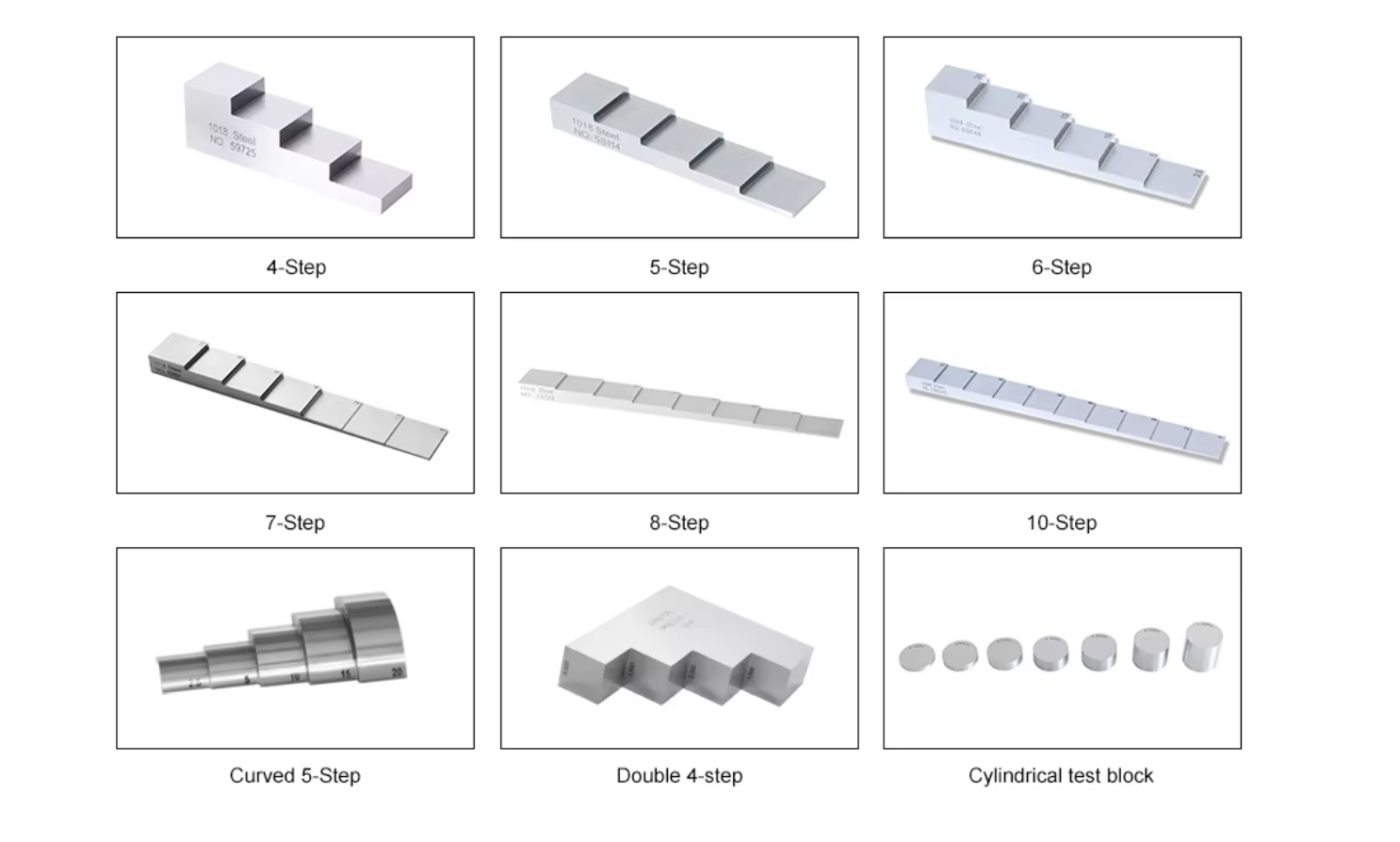

Available Models & Specifications
Model Step Thickness & Dimensions
4 Step Metric Block 3mm / 5mm / 10mm / 15mm
Dimension: 80 x 20mm
4 Step Inch Block 0.250" / 0.500" / 0.750" / 1.000"
Dimension: 3.15" x 0.8"
5 Step Inch Block 0.100" / 0.200" / 0.300" / 0.400" / 0.500"
Dimension: 4" x 0.8"
6 Step Block 1 1mm / 3mm / 5mm / 10mm / 15mm / 20mm
Dimension: 120 x 20mm
6 Step Block 2 2.5mm / 5mm / 10mm / 15mm / 20mm / 25mm
Dimension: 120 x 20mm
10 Step Block Range 1 1mm / 2mm / 3mm / 4mm / 5mm / 6mm / 7mm / 8mm / 9mm / 10mm
Dimension: 200 x 20mm
10 Step Block Range 2 2mm / 4mm / 6mm / 8mm / 10mm / 12mm / 14mm / 16mm / 18mm / 20mm
Dimension: 200 x 20mm
10 Step Inch Block 0.100" / 0.200" / 0.300" / 0.400" / 0.500" / 0.600" / 0.700" / 0.800" / 0.900" / 1.000"
Dimension: 8" x 0.8"
5 Step Pipe Calibration Block 2.5mm / 5mm / 10mm / 15mm / 20mm
Total Length: 100mm
Additional Step Block Configurations
  • 4A steps block: 6.25-25mm
  • 4B steps block: 5-20mm
  • 4 steps block: 0.25-1.00 inch
  • 5A steps block: 2.5-12.5mm
  • 5B steps block: 2-10mm
  • 5 steps block: 0.1-0.5 inch
  • 7A steps block: 3-48mm
  • 7B steps block: 1-10mm
