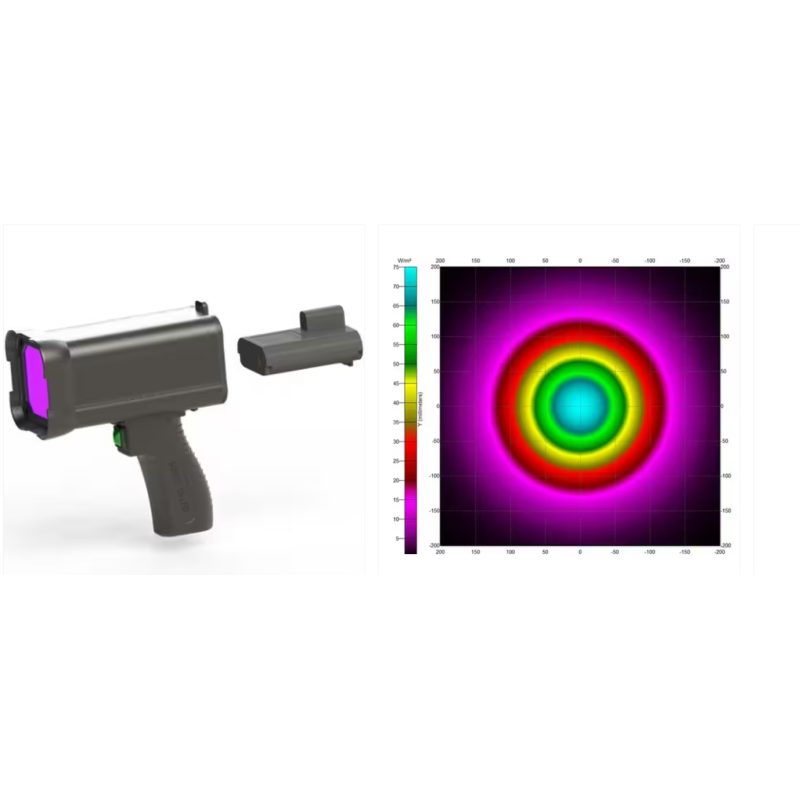

Portable Magnetic Flaw Detector AC/DC Dual Operation Fast Swap Battery Integrated Ultraviolet Black Light for Metal Crack Testing
Portable Magnetic Flaw Detector AC/DC Dual Operation Fast Swap Battery Integrated Ultraviolet Black Light for Metal Crack Testing
Portable Magnetic Flaw Detector AC/DC Dual Operation Fast Swap Battery Integrated Ultraviolet Black Light for Metal Crack Testing
Portable Magnetic Flaw Detector AC/DC Dual Operation Fast Swap Battery Integrated Ultraviolet Black Light for Metal Crack Testing
Portable Magnetic Flaw Detector AC/DC Dual Operation Fast Swap Battery Integrated Ultraviolet Black Light for Metal Crack Testing
Portable Magnetic Flaw Detector AC/DC Dual Operation Fast Swap Battery Integrated Ultraviolet Black Light for Metal Crack Testing
Portable Magnetic Flaw Detector AC/DC Dual Operation Fast Swap Battery Integrated Ultraviolet Black Light for Metal Crack Testing
Portable Magnetic Flaw Detector AC/DC Dual Operation Fast Swap Battery Integrated Ultraviolet Black Light for Metal Crack Testing
Specifications
Model Number :
UV-3051
Delivery Time :
5-8 workdays
Core Wavelength :
365nm ±3nm
Flux Error Range :
±10%
Supply Ability :
1000pcs
UV Flux Intensity :
6000μW/cm²
Power Supply :
AC100-240V 50/60Hz / Built-in DC Battery
Payment Terms :
T/T,Western Union,Credit card,PAYPAL
Max Uniform Irradiation Diameter :
Φ300mm (≥1000μW/cm²)
MOQ :
1 piece
Packaging Details :
In carton or wooden
Compliance Standard: :
ASTM E3022
Place of Origin :
CHINA
Product Name :
Handheld 365nm UVA LED Fluorescent Inspection Lamp
Certification :
ISO, CE
Brand Name :
TESTECH
Description
Portable Magnetic Flaw Detector with AC/DC Dual Operation
Handheld magnetic flaw detector featuring quick-swap battery and integrated ultraviolet black light for comprehensive metal crack testing and inspection applications.
For technical questions and custom requirements, contact us at +8613488765676
Portable Magnetic Flaw Detector AC/DC Dual Operation Fast Swap Battery Integrated Ultraviolet Black Light for Metal Crack Testing
Applications
  • Pollution detection: electronic components, main board flux, LCD board contamination, clean room entry inspection
  • Fluorescent inspection: non-destructive testing with fluorescent penetration and magnetic particle inspection
  • Degreasing cleaning confirmation: food industry equipment, kitchen tools, cooking utensils, tableware cleaning verification
  • Leakage inspection: engine lubricating oil, oil tanks, piping systems, and fluid containment systems
Key Features
  • Compliant with ASTM E3022 standards
  • UV-B content: 0%
  • Battery life: 2-3 hours continuous operation
  • Quick battery replacement system
  • Lightweight design: only 560g including battery
  • External surface temperature rise during continuous operation: < 8K (8℃)
  • Color filter glass with white light content less than 20LUX
  • Dual power operation: works with AC directly and DC battery
  • Rechargeable battery type: 18650
Technical Specifications
Parameter Specification
Style Handheld
UV Light Flux (25℃) 6000μW/cm²
White Light Content ≤ 3LUX
Irradiation Area (≥1000μW/cm² at 380mm) Φ300mm
Flux Error 0-40℃ ±10%
Light Distribution Central light distribution
Power Supply AC 100-240V, 50/60Hz
Power Consumption UV LED - 12VA
Wavelength (25℃) 365nm ±3nm (UVA)
Dimensions 157.5mm (W) × 76mm (D) × 177mm (H)
Weight 560g including battery
Battery Capacity 2200mAh, 12.6V
Charging Time 2-3 hours
Battery Life (UV LED) 2-3 hours cumulative time
