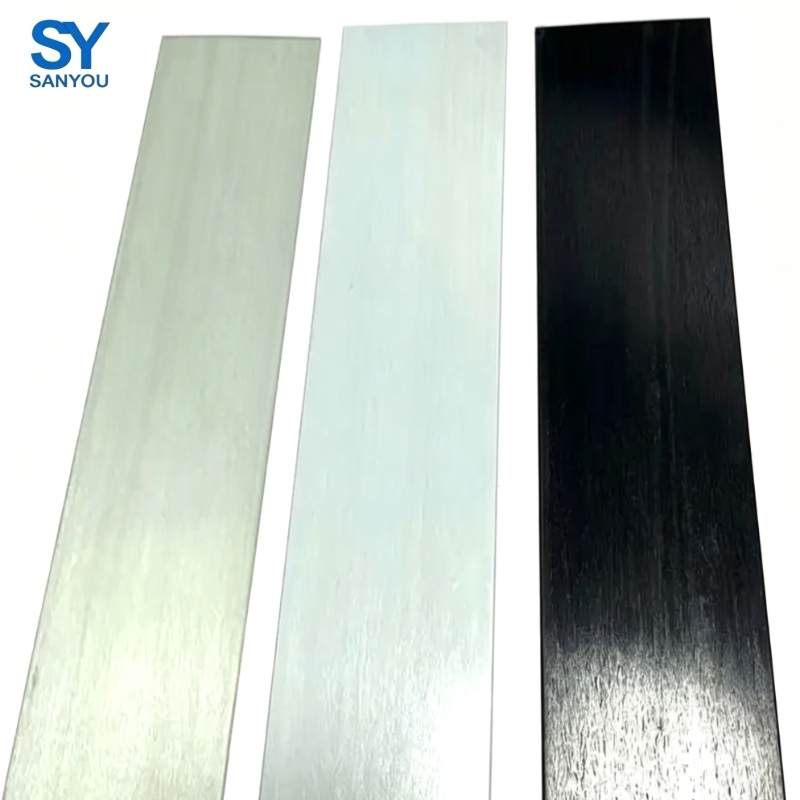

FRP High Strength Anti Aging Fiberglass Flat Strip Epoxy Bow Limb for Archery
FRP High Strength Anti Aging Fiberglass Flat Strip Epoxy Bow Limb for Archery
FRP High Strength Anti Aging Fiberglass Flat Strip Epoxy Bow Limb for Archery
FRP High Strength Anti Aging Fiberglass Flat Strip Epoxy Bow Limb for Archery
FRP High Strength Anti Aging Fiberglass Flat Strip Epoxy Bow Limb for Archery
FRP High Strength Anti Aging Fiberglass Flat Strip Epoxy Bow Limb for Archery
Specifications
Model Number :
SY-001
Electricalinsulation :
Excellent
Tensile strength :
200-400 MPa
MOQ :
100m-200m
Delivery Time :
15 - 20 days
Applications :
Electrical insulation, structural components, corrosion-resistant parts
Waterabsorption :
Low (e.g., <0.5%)
Density :
1.8 - 2.0 g/cm³
Payment Terms :
T/T
Productname :
Epoxy Pultruded Sheet
Color :
Typically amber or transparent
Width :
10mm - 300mm (Customizable)
Price :
Negotiable
Manufacturingprocess :
Pultrusion
Thickness :
0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.8mm / 1.0mm (Customizable)
Supply Ability :
10,000 meters
Flexuralstrength :
High (e.g., 300-600 MPa)
Reinforcement :
Fiberglass
Thermalresistance :
Up to 150°C
Place of Origin :
Dongguan, China
Tensilestrength :
High (e.g., 200-400 MPa)
Certification :
ISO900，CE，
Material :
Epoxy Resin
Thermal resistance :
Up to 150°C
Brand Name :
SABYOU
Length :
Customizable
Flexural strength :
300-600 MPa
Packaging Details :
Reinforced carton packaging
Chemicalresistance :
Resistant to acids, alkalis, and solvents
Description
FRP High Strength Anti Aging Fiberglass Flat Strip Epoxy Bow Limb for Archery
Product Overview

Engineered for exceptional performance and durability, our FRP High-Strength Anti-Aging Fiberglass Flat Strip is the ultimate material choice for high-performance archery bow limbs, outdoor recreational gear, and industrial tension applications. Manufactured using a precision pultrusion process with high-grade epoxy resin and premium glass fibers, this strip delivers an optimal balance of extreme tensile strength, high elasticity, and long-term environmental resistance.

Product Core Advantages

  • Key Features & Advantages

    • Superior Tensile Strength & Elasticity: Designed specifically to withstand high-stress cyclic bending without permanent deformation, ensuring consistent draw weight and snappy recovery for archery bows.

    • Anti-Aging & Weather Resistant: Advanced UV-resistant epoxy formulation protects against sunlight degradation, moisture absorption, and extreme temperature fluctuations for both indoor and outdoor use.

    • Precision Pultrusion Quality: Uniform thickness, smooth surface finish, and a high fiber volume fraction guarantee reliable, repeatable mechanical performance across every strip.

    • Lightweight Durability: Offers a high strength-to-weight ratio, reducing overall bow weight while maximizing kinetic energy transfer and arrow speed.

    • Customizable Dimensions: Available in a variety of widths, thicknesses, and lengths to accommodate different draw weights and bow designs (recurve, traditional, or youth bows).


    Product Application Scenarios

This epoxy pultruded fiberglass sheet and FRP flat strip is specially developed for archery sports equipment and precision elastic parts, with precise and professional application scenarios:

  • Recurve Laminated Bow Limbs: The core raw material for bonding and laminating recurve bow limbs, providing stable tension and excellent shooting rebound force
  • Compound Bow Accessories & Auxiliary Parts: Used for compound bow partial elastic support parts, balance strips and auxiliary structural parts
  • Bow and Arrow Custom Processing: Suitable for handmade laminated bows, customized sports bows, beginner practice bows and professional competition bow production
  • Sports Elastic Equipment: Widely used in various elastic structural parts of sports equipment, flexible support parts of fitness equipment
  • Outdoor Toy & Craft Parts: Applied in high-strength elastic parts of outdoor simulation bows, sports toys and craft elastic accessories
Product Specification Parameters
Item Detailed Specification
Product Name High Strength FRP Flat Bar, Epoxy Fiberglass Strip Roll, Epoxy Pultruded Sheet
Raw Material High-strength E-glass Fiber + Premium Epoxy Resin
Production Technology Continuous Epoxy Pultrusion Molding Process
Standard Thickness 0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.8mm / 1.0mm (Customizable)
Standard Width 10mm - 300mm (Customizable)

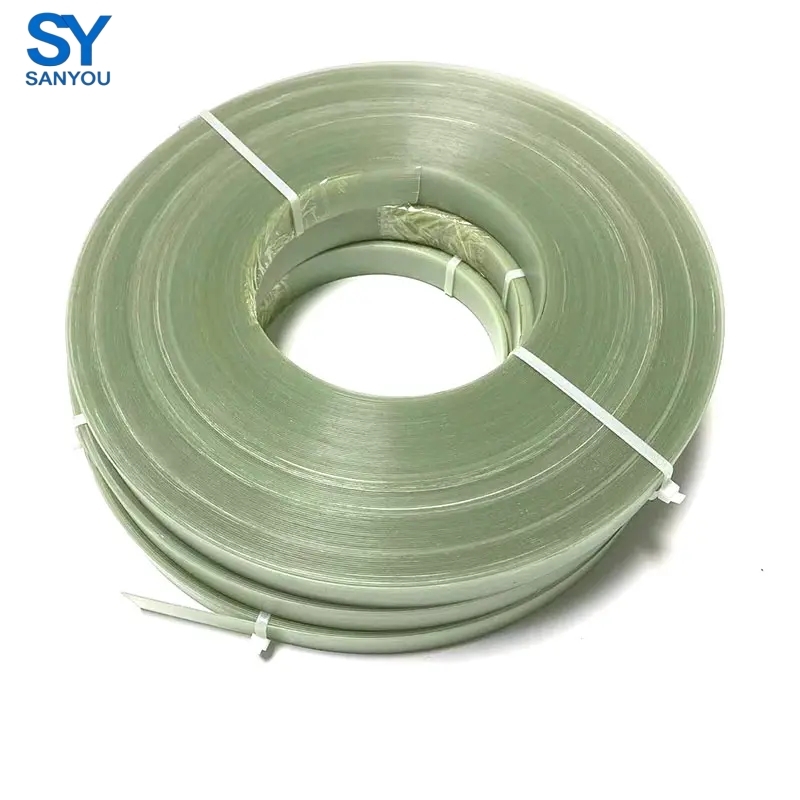

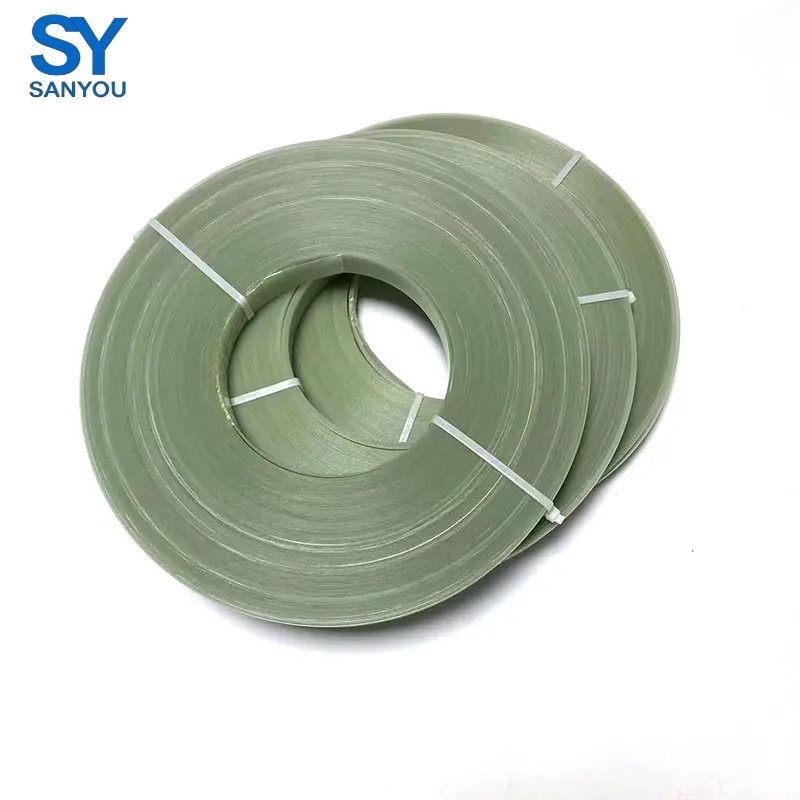

Product Form Continuous Roll / Fixed-length Cut Sheet
Surface Type Transparent Epoxy Sheet, Green Epoxy Sheet, Wood Grain Epoxy Sheet
Density 1.8 - 2.0 g/cm³
Hardness High hardness, tough and not easy to break
Main Applications Recurve bow limbs, compound bow accessories, archery equipment raw materials, sports elastic parts
Certification ISO9001 Quality Management System, CE Certification
MOQ Small quantity support, negotiable
Custom Service Support size, color, surface process customization
width Thickness
45mm 1.5mm
45mm 1.3mm
40mm 1.2mm
38mm 1.2mm
Customizable Various specifications

Key Advantages: corrosion resistance, low moisture absorption, high strength-to-weight ratio, excellent temperature stability

Frequently Asked Questions
Q1: What certifications does the Epoxy pultruded sheet have?
A1: The Epoxy pultruded sheet is certified with ISO900 and CE, ensuring high quality and compliance with international standards.
Q2: Where is the Epoxy pultruded sheet manufactured?
A2: The Epoxy pultruded sheet is manufactured in Dongguan, China.
Q3: What is the minimum order quantity for this product?
A3: The minimum order quantity for the Epoxy pultruded sheet ranges from 100 meters to 200 meters.
Q4: How is the product packaged for shipment?
A4: The Epoxy pultruded sheet is securely packaged in a wooden box to ensure safe delivery.
Q5: What are the payment terms and delivery time?
A5: Payment is typically made via T/T (telegraphic transfer), and the delivery time is between 15 to 20 days.
Q6: What is the brand name and supply capacity of the Epoxy pultruded sheet?
A6: The product is branded under SABYOU, with a supply ability of up to 10,000 meters.
Q7: Is the price of the Epoxy pultruded sheet fixed?
A7: The price is negotiable depending on the order quantity and specific requirements.
