1mm 1.2mm 1.3mm 1.5mm Clear Fiberglass From Material Fiberglass Flat Bar For Bow Limbs 100 Meters/ Roll
1mm 1.2mm 1.3mm 1.5mm Clear Fiberglass From Material Fiberglass Flat Bar For Bow Limbs 100 Meters/ Roll
1mm 1.2mm 1.3mm 1.5mm Clear Fiberglass From Material Fiberglass Flat Bar For Bow Limbs 100 Meters/ Roll
1mm 1.2mm 1.3mm 1.5mm Clear Fiberglass From Material Fiberglass Flat Bar For Bow Limbs 100 Meters/ Roll
1mm 1.2mm 1.3mm 1.5mm Clear Fiberglass From Material Fiberglass Flat Bar For Bow Limbs 100 Meters/ Roll
1mm 1.2mm 1.3mm 1.5mm Clear Fiberglass From Material Fiberglass Flat Bar For Bow Limbs 100 Meters/ Roll
Specifications
Certification :
ISO900，CE，
Tensile strength :
Up to 150 MPa
Model Number :
SY-003
Flexural strength :
Up to 250 MPa
Price :
Negotiable
Standard thickness :
0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.8mm / 1.0mm
Supply Ability :
10,000 meters
MOQ :
100m-200m
Delivery Time :
15 - 20 days
Thermal resistance :
Up to 130°C
Payment Terms :
T/T
Brand Name :
SABYOU
Density :
1.8 - 2.0 g/cm³
Packaging Details :
Reinforced carton packaging
Place of Origin :
Dongguan, China
Water absorption :
< 0.5%
Description
1mm 1.2mm 1.3mm 1.5mm Clear Fiberglass Flat Bar for Bow Limbs - 100 Meters/Roll
These transparent fiberglass flat bars are engineered specifically for the construction and reinforcement of bow limbs. Manufactured using high-quality fiberglass raw materials through precision pultrusion and curing processes, they feature a smooth transparent finish, uniform thickness, and stable mechanical properties.
Product Overview
Available in four standard thicknesses (1.0mm, 1.2mm, 1.3mm, and 1.5mm), these bars allow users to select the optimal specification based on draw weight, length, limb curvature, and handling preferences. Thinner gauges (1.0-1.2mm) suit lightweight or fast-response limbs; 1.3mm balances elasticity and strength; while 1.5mm is ideal for high-draw-weight limbs requiring greater rigidity.
Supplied in continuous 100-meter rolls without breaks, the material facilitates batch cutting and processing while minimizing waste. Fiberglass offers excellent specific strength and modulus, and the transparency allows easy inspection of adhesive layers during lamination with carbon fiber, bamboo, wood, or other composite materials.
Product Core Advantages
  • Stable Elastic Performance: Excellent bending recovery with no permanent deformation after long-term repeated use
  • High Strength & Light Weight: High tensile and compressive strength with light texture to optimize product load-bearing design
  • Super Durability: Corrosion-resistant, waterproof, and anti-aging—suitable for long-term outdoor and sports applications

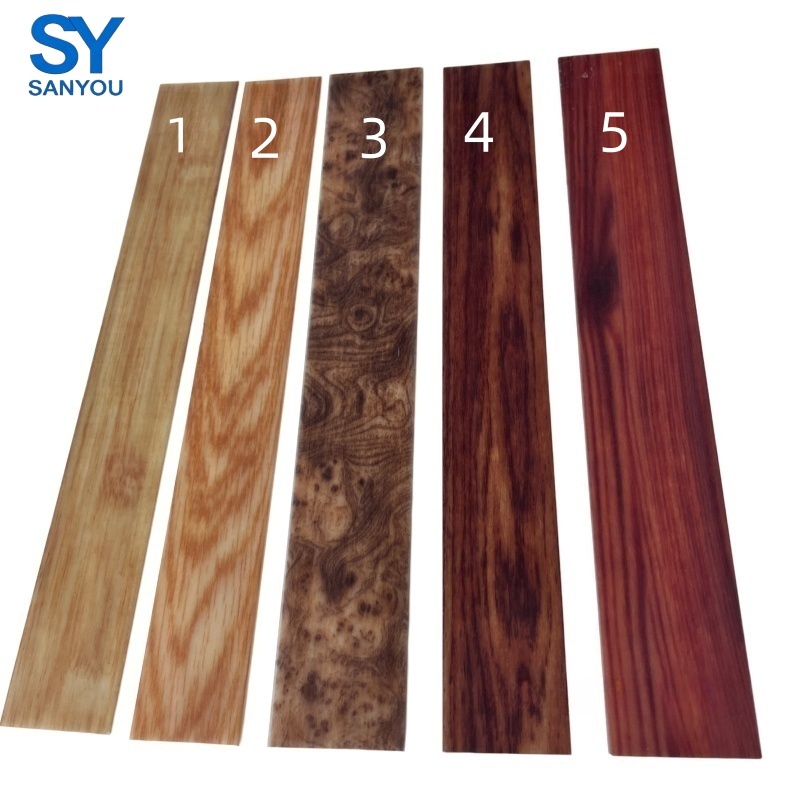

  • Diversified Surface Options: Transparent, pure green, and wood grain styles to meet different product appearance needs
  • Customizable Specification: Support for arbitrary customization of thickness, width, and length to adapt to various processing technologies
  • Industrial Grade Quality: ISO9001 & CE certified with whole-process quality inspection and stable batch consistency
Product Application Scenarios
  • Recurve Laminated Bow Limbs: Core raw material for bonding and laminating recurve bow limbs, providing stable tension and excellent shooting rebound force
  • Compound Bow Accessories & Auxiliary Parts: Used for compound bow partial elastic support parts, balance strips, and auxiliary structural components
  • Bow and Arrow Custom Processing: Suitable for handmade laminated bows, customized sports bows, beginner practice bows, and professional competition bow production
  • Sports Elastic Equipment: Widely used in various elastic structural parts of sports equipment and flexible support parts of fitness equipment
  • Outdoor Toy & Craft Parts: Applied in high-strength elastic parts of outdoor simulation bows, sports toys, and craft elastic accessories
Product Specification Parameters
Item Detailed Specification
Product Name High Strength FRP Flat Bar, Epoxy Fiberglass Strip Roll, Epoxy Pultruded Sheet
Raw Material High-strength E-glass Fiber + Premium Epoxy Resin
Production Technology Continuous Epoxy Pultrusion Molding Process
Standard Thickness 0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.8mm / 1.0mm (Customizable)
Standard Width 10mm - 300mm (Customizable)
Product Form Continuous Roll / Fixed-length Cut Sheet
Surface Type Transparent Epoxy Sheet, Green Epoxy Sheet, Wood Grain Epoxy Sheet
Density 1.8 - 2.0 g/cm³
Hardness High hardness, tough and not easy to break
Main Applications Recurve bow limbs, compound bow accessories, archery equipment raw materials, sports elastic parts
Certification ISO9001 Quality Management System, CE Certification
MOQ Small quantity support, negotiable
Custom Service Support size, color, surface process customization
width Thickness
45mm 1.5mm
45mm 1.3mm
40mm 1.2mm
38mm 1.2mm
Customizable Various specifications
Key Advantages: corrosion resistance, low moisture absorption, high strength-to-weight ratio, excellent temperature stability
Frequently Asked Questions
Q1: What certifications does the Epoxy pultruded sheet have?
A1: The Epoxy pultruded sheet is certified with ISO9001 and CE, ensuring high quality and compliance with international standards.
Q2: Where is the Epoxy pultruded sheet manufactured?
A2: The Epoxy pultruded sheet is manufactured in Dongguan, China.
Q3: What is the minimum order quantity for this product?
A3: The minimum order quantity for the Epoxy pultruded sheet ranges from 100 meters to 200 meters.
Q4: How is the product packaged for shipment?
A4: The Epoxy pultruded sheet is securely packaged in a wooden box to ensure safe delivery.
Q5: What are the payment terms and delivery time?
A5: Payment is typically made via T/T (telegraphic transfer), and the delivery time is between 15 to 20 days.
Q6: What is the brand name and supply capacity of the Epoxy pultruded sheet?
A6: The product is branded under SABYOU, with a supply ability of up to 10,000 meters.
Q7: Is the price of the Epoxy pultruded sheet fixed?
A7: The price is negotiable depending on the order quantity and specific requirements.
