Threshold Current 0.5A Laser Diode Chip Laser Printing Slope Efficiency 1.0W/A
Threshold Current 0.5A Laser Diode Chip Laser Printing Slope Efficiency 1.0W/A
Specifications
Brand Name :
GaNova
Place of Origin :
Suzhou China
Payment Terms :
T/T
Packaging Details :
Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Package Type :
Surface Mount, Standard Package
Type :
Laser Diode
Application :
Laser Printing
Operating Temperature :
15-55℃
Wavelength :
915nm
Output power :
10
Slope Efficiency :
1.0W/A
Emitter Size :
94μm
Description

Threshold Current 0.5A Laser Diode Chip Laser Printing Slope Efficiency 1.0W/A

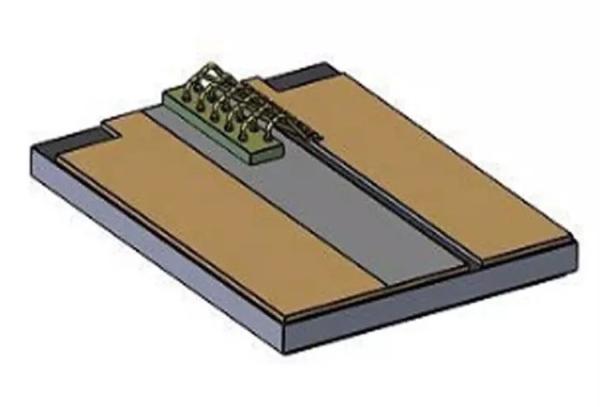

915nm 10W COS Diode Laser Chip On Submount Design

The light source is integrated by flip-chip bonding directly onto the Si substrate allowing for high temperature operation, and spot-size converters are used for efficient coupling to the Si waveguide. An InGaAs/InP metal-semiconductor-metal (MSM) structure is integrated using wafer bonding techniques and used for photodetection, and high responsivity is demonstrated.

Optical
Center Wavelength
915nm
Output Power
10W
Spectral Width FWHM
≤6nm
Slope Efficiency
1.0W/A
Fast Axis Divergence
60Deg
Slow Axis Divergence
11Deg
Polarization Mode
TE
Emitter Size
94um
Electrical
Threshold Current
0.5A
Operating Current
12A
Operating Voltage
1.65V
Power Conversion Efficiency
58%
Thermal
Operating Temperature
15-55℃
Storage Temperature
-30-70℃
Wavelength Temp. Coefficient
0.3nm/℃
Drawing

FAQ

Q1: What payment methods do you support?
T/T and Western Union, For your Choice

Q2: How long can I receive the package?
Normally 1-2 Weeks FedEx,DHL Express,UPS,TNT

Q3: What is the lead time?
Standard product are all in stock. Shipping via Express within 3~4 working days. Customized stack need 15 working days.

Q4: Are you trading company or manufacturer?
We are manufacturer with more than 11 years of experience, and also provide the technical solution to all customers.

Q5: Can you guarantee your quality?
Of course, we are one of top reputed manufacturers in China. Quality for us is the most important thing, we put high value on our reputation. Best quality is our principle all the time.
