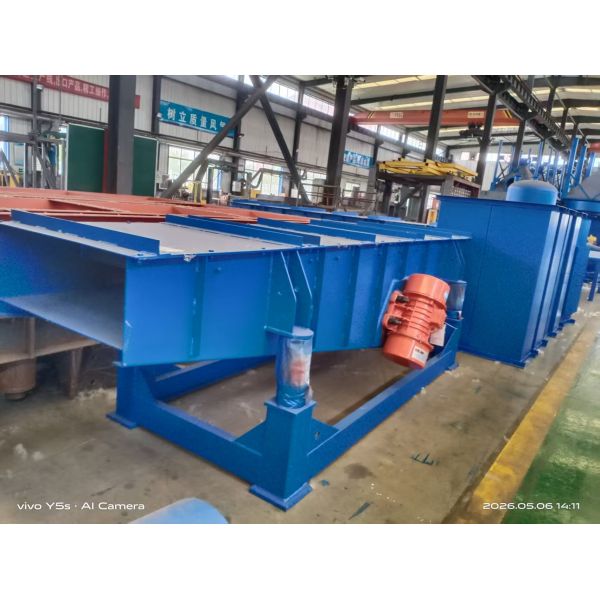

Dust Sealed Vibrating Screen Conveyor with 16Mn Steel Mesh for Low Energy Consumption Sand Processing
Dust Sealed Vibrating Screen Conveyor with 16Mn Steel Mesh for Low Energy Consumption Sand Processing
Dust Sealed Vibrating Screen Conveyor with 16Mn Steel Mesh for Low Energy Consumption Sand Processing
Dust Sealed Vibrating Screen Conveyor with 16Mn Steel Mesh for Low Energy Consumption Sand Processing
Dust Sealed Vibrating Screen Conveyor with 16Mn Steel Mesh for Low Energy Consumption Sand Processing
Dust Sealed Vibrating Screen Conveyor with 16Mn Steel Mesh for Low Energy Consumption Sand Processing
Specifications
Brand Name :
TOVAC
Model Number :
DSZ80400
MOQ :
1 unit/set
Payment Terms :
T/T
Supply Ability :
1000 units before the year
Delivery Time :
10-20 working days
Operatingtemperaturerange :
-10 to 45 °C
Productname :
Sand Processing Equipment
Warranty :
12 months
Color :
Default blue, customizable
Applicablematerial :
River Sand, Quartz Sand, Silica Sand
Noiselevel :
<75 dB
Powersource :
Electric motor
Motorpower :
15 kW
Weight :
2000 kg
Sandtype :
Unbonded sand
Description

Product Overview

The vibrating screen conveyor is used for short-distance transportation of materials like sand, old sand, crushed stone, and coke, with a fully enclosed design for dust sealing.

Components

The machine uses a vibration motor as the power source, with advantages like simple structure, long lifespan, uniform feeding, easy maintenance, adjustable settings, and low energy consumption.

The screen is made of 16Mn steel mesh, enhancing durability. It is fixed to the body with bolts, making screen replacement easy.

Parameters

Conveying capacity: ≥20t/h

Power: 2×1.5Kw

Width of trough: 800mm

Length of trough: 4000mm

Main Functions and Advantages

Even feeding

Multi-stage synchronous screening

Preliminary cooling of materials

Advantages:

High efficiency and compact design, saving space and cost

Simple structure and low maintenance

Low energy consumption and economical operation

Environmental protection with a sealed design

Flexible process, strong adaptability

Stable operation with relatively low noise

Usage Notes

Check the vibration motor bolts for tightness before use.

Ensure empty-load status before operation.

Monitor the discharge and ash outlets during operation to identify any damage to the screen.

Perform routine maintenance and regular checks after use.
