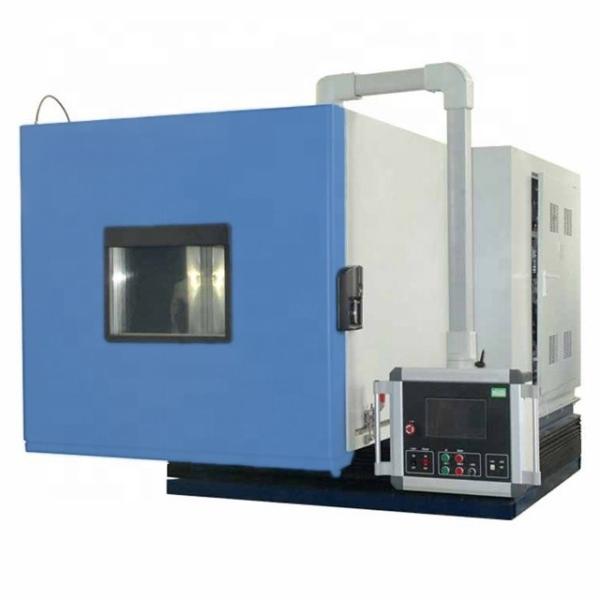

Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant
Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant
Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant
Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant
Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant
Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant
Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant
Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant
Specifications
Brand Name :
PRECISION
Model Number :
VTHC-225
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
$6000
Payment Terms :
T/T
Supply Ability :
100/month
Delivery Time :
15 working days
Packaging Details :
Standard export packaging
Customized support :
OEM ODM
Origin :
China
Material :
Stainless Steel
Controller :
Programmable LCD Touch Screen
Temp accuracy: :
0.5°C
Temp uniformity :
0.5°C
Refrigerant :
Environmental friendly
Vibration force :
2000kg.f(20kN)
Temp. range :
-60°C to +180°C
Humdity range :
10% to 98%
Description

Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant

Product Description:

Our custom-engineered environmental and vibration test chambers are designed to meet the rigorous requirements of SAE J1455, ensuring the reliability and durability of automotive electronic equipment under extreme conditions. These chambers combine precise temperature, humidity, and vibration simulation, providing a comprehensive testing solution for automotive manufacturers and suppliers.

Key Features:

  • SAE J1455 Compliance: Engineered to meet the environmental stress testing requirements outlined in SAE J1455.
  • Customizable Design: Tailored to meet specific automotive component dimensions and testing parameters.
  • Integrated Environmental & Vibration: Combines precise temperature, humidity, and vibration testing in a single system.
  • Advanced Vibration Simulation: Electro-dynamic or hydraulic shakers for accurate and repeatable vibration profiles.
  • Precision Environmental Control: State-of-the-art temperature and humidity systems for stable and uniform testing conditions.
  • Real-Time Data Acquisition: Comprehensive data logging and analysis for detailed test results.
  • Robust Construction: Designed for continuous operation and long-term reliability.
  • Enhanced Safety Features: Comprehensive safety mechanisms for equipment and test specimens.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force 1,100 kgf/1,100 kgf/2.200 kgf Armature Mass 11kg
Frequency Range 5-3.000 Hz Inserts Size (Standard) M8
Max./Continuous Displacement p-p 51 mm/ 51 mm Load Attachment Points (Standard) 17
Max. Velocity 2.0 m/s Natural Frequency-Thrust Axis <3Hz
Max.Sine/ Random Acceleration 100/60g Mac Vertical Load Support 300 kg
Armature Diameter 235 mm Stray field @ 152 mm above table ≤1mT (10 gauss)
Fundamental Resonance frequency 2,500 Hz (nom.) ± 5% Dimension LxWxH 940 mmx715 mmx780 mm
Allowable Armature Overturning Moment 300 Nm Weight (Uncrated) 1.000 kg

PA10K Power Amplifier Specifications Blower Specifications
Rated Output Capacity 10kVA Bl ewer Power 4kW
Signal to Noise Ratio ≥65 dB Air Flow 0.38 m3/s
Amplifier Efficiency ≥90% Air Pressure 0 048kgf/cm2
System Protection Multiple Air Duct Diameter/ Length 120/4000mm
Dimension (Uncrated) LxWxH 610mmx900mmx 1,550mm Dimension (Uncrated) LxWxH 610mmx750mmx 1,450mm
Weight (Uncrated) 400 kg Weight (Uncrated) 120Kg

Chamber Dimensions (mm)
Capacity 512L
Inner Chamber Dimensions 800×800×800mm (W width × D depth × H height mm)
Temperature Range -40℃～+150℃
Cooling Rate

+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range 20%RH～98%RH

Applications:

  • Automotive electronic control unit (ECU) testing.
  • Automotive sensor testing.
  • Infotainment system testing.
  • Automotive lighting system testing.
  • Environmental stress screening (ESS) for automotive electronics.
  • Reliability testing of automotive electronic components.

Custom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 CompliantCustom Environmental Chamber With Horizontal Vertical Vibration Test Machine SAE J1455 Compliant

Benefits:

  • Ensures compliance with SAE J1455 standards.
  • Enhances the reliability and durability of automotive electronic equipment.
  • Reduces the risk of in-field failures.
  • Accelerates product development and validation.
  • Provides comprehensive and integrated testing solutions.

Why Choose Us:

We specialize in providing high-quality environmental and vibration testing solutions for the automotive industry. Our custom chambers are designed and manufactured to the highest standards, ensuring reliable and accurate testing results.

Contact our team today to discuss your automotive electronic component testing needs and learn how our custom environmental and vibration test chambers can ensure your products meet SAE J1455 standards.
