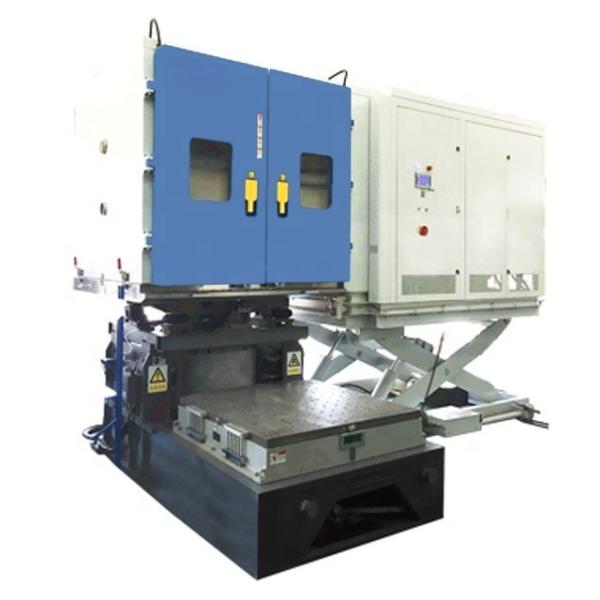

Three In One Vibration Temperature Humidity Test Chamber for Aerospace Industry
Three In One Vibration Temperature Humidity Test Chamber for Aerospace Industry
Three In One Vibration Temperature Humidity Test Chamber for Aerospace Industry
Three In One Vibration Temperature Humidity Test Chamber for Aerospace Industry
Three In One Vibration Temperature Humidity Test Chamber for Aerospace Industry
Three In One Vibration Temperature Humidity Test Chamber for Aerospace Industry
Three In One Vibration Temperature Humidity Test Chamber for Aerospace Industry
Three In One Vibration Temperature Humidity Test Chamber for Aerospace Industry
Three In One Vibration Temperature Humidity Test Chamber for Aerospace Industry
Three In One Vibration Temperature Humidity Test Chamber for Aerospace Industry
Specifications
Brand Name :
PRECISION
Model Number :
THV-20
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
$20000
Payment Terms :
T/T
Supply Ability :
60 sets/month
Delivery Time :
45 working days
Packaging Details :
Standard export packaging
Cooling System :
Mechanical refrigeration system
Power Supply :
AC 220V, 50/60Hz
Humidity Range :
10% to 98% RH
Inner Chamber Size :
600 mm x 600 mm x 600 mm
Vibration Frequency Range :
5 Hz to 2000 Hz
Acceleration Range :
up to 100g
Temperature Range :
-70°C to +180°C
Communication Interface :
RS232, RS485, USB
Chamber Material :
Stainless steel
Vibration Modes :
Sine, Random, Sine on Random, Random on Random
Display :
LCD touch screen
Safety Features :
Over-temperature protection, over-current protection, phase sequence protection
Description

Customized Vibration Temperature Humidity Three-in-One Environmental Test Chamber

Product Description:

Our Customized Vibration, Temperature, Humidity Three-in-One Environmental Test Chamber is specifically designed to simulate the extreme environmental conditions that products may encounter during actual use and transportation. It integrates advanced vibration, temperature, and humidity control systems to precisely simulate various complex environmental stresses, helping you comprehensively evaluate the reliability and durability of your products.

Key Features:

  • Comprehensive Environmental Simulation:
    • Simultaneous control of vibration, temperature, and humidity to achieve three-in-one environmental simulation.
    • Ability to simulate various environmental stresses encountered during product transportation, storage, and use.
    • Offers multiple test modes, including constant, cyclic, and combined tests.
  • High Customization:
    • Customizable chamber size, performance, and functions according to specific customer requirements.
    • Flexible vibration, temperature, and humidity parameter settings to meet various industry standards and test requirements.
    • Optional accessories and fixtures to accommodate test samples of different sizes and shapes.
  • Precise Control System:
    • Advanced sensors and control algorithms to ensure temperature and humidity stability and uniformity.
    • High-performance vibration tables and controllers for precise vibration control.
    • Data acquisition system for real-time recording and storage of test data, facilitating subsequent analysis and report generation.
  • Reliable Performance:
    • High-quality materials and components to ensure long-term stable operation of the test chamber.
    • Comprehensive safety protection functions, including over-temperature protection, over-humidity protection, overload protection, and emergency stop.
    • Compliance with relevant international and domestic standards, such as IEC, ASTM, MIL-STD, etc.
  • Easy Operation and Maintenance:
    • User-friendly operation interface for easy test setup and monitoring.
    • Remote control and monitoring functions for convenient remote operation and data access.
    • Comprehensive technical support and after-sales service, including installation, commissioning, training, and maintenance.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force 1,100 kgf/1,100 kgf/2.200 kgf Armature Mass 11kg
Frequency Range 5-3.000 Hz Inserts Size (Standard) M8
Max./Continuous Displacement p-p 51 mm/ 51 mm Load Attachment Points (Standard) 17
Max. Velocity 2.0 m/s Natural Frequency-Thrust Axis <3Hz
Max.Sine/ Random Acceleration 100/60g Mac Vertical Load Support 300 kg
Armature Diameter 235 mm Stray field @ 152 mm above table ≤1mT (10 gauss)
Fundamental Resonance frequency 2,500 Hz (nom.) ± 5% Dimension LxWxH 940 mmx715 mmx780 mm
Allowable Armature Overturning Moment 300 Nm Weight (Uncrated) 1.000 kg

PA10K Power Amplifier Specifications Blower Specifications
Rated Output Capacity 10kVA Bl ewer Power 4kW
Signal to Noise Ratio ≥65 dB Air Flow 0.38 m3/s
Amplifier Efficiency ≥90% Air Pressure 0 048kgf/cm2
System Protection Multiple Air Duct Diameter/ Length 120/4000mm
Dimension (Uncrated) LxWxH 610mmx900mmx 1,550mm Dimension (Uncrated) LxWxH 610mmx750mmx 1,450mm
Weight (Uncrated) 400 kg Weight (Uncrated) 120Kg

Chamber Dimensions (mm)
Capacity 512L
Inner Chamber Dimensions 800×800×800mm (W width × D depth × H height mm)
Temperature Range -40℃～+150℃
Cooling Rate

+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range 20%RH～98%RH
Overall Dimensions

1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight 1500kg

Application Areas and Success Stories

  • Aerospace Industry
    • An aerospace component manufacturer used the chamber to test a new type of landing gear mechanism. The tests, which included exposure to extreme cold and high humidity combined with intense vibrations, revealed a problem with the lubrication system. By developing a new lubricant and improving the sealing of the mechanism, they were able to enhance its reliability and safety during landing and takeoff.
    • A research institute in the aerospace field used the Customization Vibration Test, Temperature Humidity Three-in-one Environmental Test Chamber to study the effects of temperature and humidity cycling combined with random vibrations on the performance of new composite materials for aircraft wings. The data obtained led to the development of more durable and lightweight composites, improving the overall performance and fuel efficiency of aircraft.
  • Automotive Industry
    • An automotive parts supplier used the test chamber to evaluate the durability of a new engine mount. The tests, which simulated the temperature changes, humidity levels, and vibrations that occur during normal driving and harsh road conditions, identified a weakness in the rubber compound used. By modifying the compound and improving the design of the mount, they were able to reduce vibrations transmitted to the vehicle cabin and increase the lifespan of the component.
    • A major automotive manufacturer used the chamber to test the performance of their new infotainment system. The tests under different temperature, humidity, and vibration conditions showed that the touchscreen responsiveness was affected. By optimizing the software and improving the shock-absorbing design of the system, they were able to enhance the user experience and reliability of the infotainment unit.
  • Electronics Industry
    • An electronics manufacturer used the chamber to test a new server rack. The tests under high temperature, humidity, and vibration conditions revealed a problem with the cooling fans' stability. By redesigning the fan mounts and improving the vibration isolation, they were able to ensure proper cooling and prevent overheating-related failures.
    • A semiconductor research company used the Customization Vibration Test, Temperature Humidity Three-in-one Environmental Test Chamber to study the behavior of new chip designs under different temperature, humidity, and vibration profiles. The data helped them optimize the packaging and thermal management of the chips, leading to increased performance and reliability.

Three In One Vibration Temperature Humidity Test Chamber for Aerospace IndustryThree In One Vibration Temperature Humidity Test Chamber for Aerospace Industry

Why Choose Us:

We have years of experience in the research and development and production of environmental testing equipment, and can provide customers with high-quality, high-performance customized solutions. Our products and services have been recognized and trusted by many customers.

Contact Us:

If you need a customized vibration, temperature, humidity three-in-one environmental test chamber, please feel free to contact us, and we will provide you with professional consultation and solutions.
