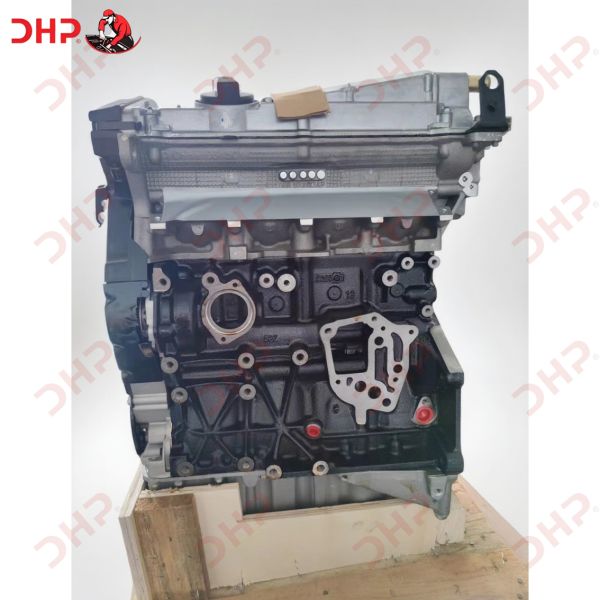

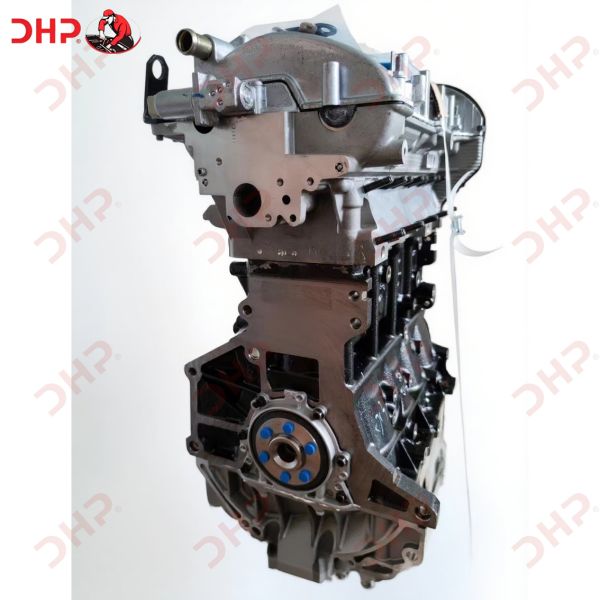

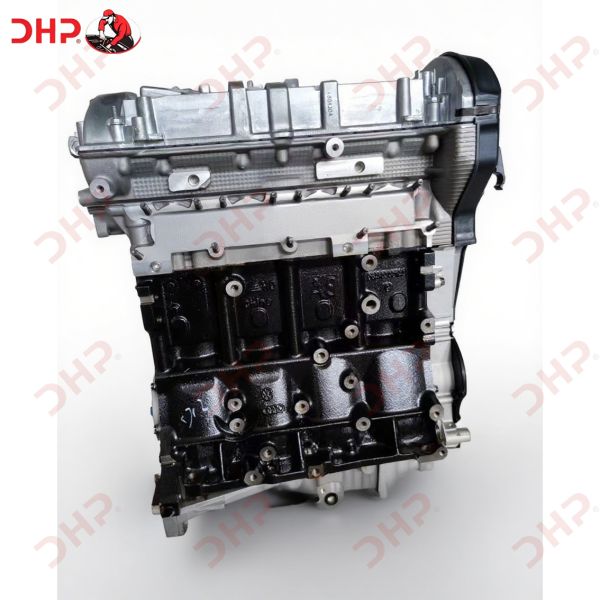

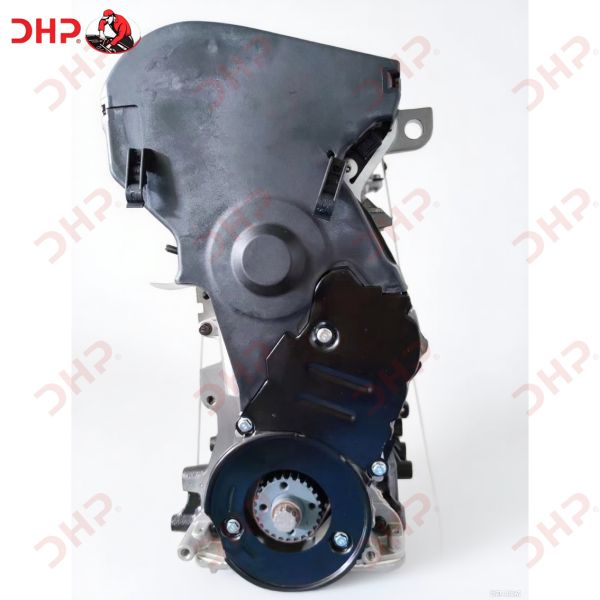

AWL EA113 1.8L 20V Turbo Engine with Cast-iron Block and 150HP for VW Passat B5 Bora
AWL EA113 1.8L 20V Turbo Engine with Cast-iron Block and 150HP for VW Passat B5 Bora
AWL EA113 1.8L 20V Turbo Engine with Cast-iron Block and 150HP for VW Passat B5 Bora
AWL EA113 1.8L 20V Turbo Engine with Cast-iron Block and 150HP for VW Passat B5 Bora
AWL EA113 1.8L 20V Turbo Engine with Cast-iron Block and 150HP for VW Passat B5 Bora
AWL EA113 1.8L 20V Turbo Engine with Cast-iron Block and 150HP for VW Passat B5 Bora
AWL EA113 1.8L 20V Turbo Engine with Cast-iron Block and 150HP for VW Passat B5 Bora
AWL EA113 1.8L 20V Turbo Engine with Cast-iron Block and 150HP for VW Passat B5 Bora
AWL EA113 1.8L 20V Turbo Engine with Cast-iron Block and 150HP for VW Passat B5 Bora
AWL EA113 1.8L 20V Turbo Engine with Cast-iron Block and 150HP for VW Passat B5 Bora
Specifications
Brand Name :
DHP
Model Number :
CAV
Place of Origin :
China
MOQ :
5
Price :
contact me
Supply Ability :
Steady mass production, short lead time, ready to support large orders.
Packaging Details :
Standard Export Wooden Case
Platform :
EA113, 1.8L 20V Turbo (5 valves/cyl)
Compressionratio :
9.3 : 1
Type :
Diesel Engine
Block / Head :
Cast‑iron block / Aluminum 20V head
Quality :
100%tested
Car Model :
AUDI A4
Description

Engine Code

AWL

Family

EA113, 1.8L 20V Turbo (5 valves/cyl)

Type

Inline‑4, DOHC 20V, Gasoline, Transverse FWD

Displacement

1.8L / 1781cc

Bore * Stroke

81.0 mm * 86.4 mm

Compression Ratio

9.3 : 1

Production

2000–2005

Block / Head

Cast‑iron block / Aluminum 20V head

Timing

Timing belt (interference, 120k km interval)

Fuel System

MPI Multi‑point Injection

Induction

K03 turbocharger, no intercooler (side‑mounted)

Weight

~150 kg

Power & Torque
  • Max Power: 110kW / 150HP @ 5700rpm
  • Max Torque: 210N·m @ 1750–4600rpm
Technical Highlights
  • 20V 5‑valve tech: 3 intake + 2 exhaust, high flow, strong top‑end
  • K03 turbo: Spools early, 210N·m from 1750rpm
  • Cast‑iron block: Overbuilt, high‑boost capable, durable
  • Solid 20V head: Good heat dissipation, less cracking vs later 16V
  • MPI injection: Simple, reliable, easy to diagnose & fix
  • EU2 emission: Robust, less sensitive to fuel quality
  • Oil capacity: 4.0L (5W‑40 recommended)
Application (VW / Audi)
  • VW Passat B5 / B5.5 1.8T
  • VW Bora / Jetta / Sagitar 1.8T
  • VW Golf Mk4 / GTI 1.8T
  • Audi A4 B5 / A6 C5 1.8T
  • Skoda Superb Mk1 1.8T
Common OE / Assembly Numbers
  • 06A100031Q (complete engine)
  • 06A100030AX, 06A100033DX (long block)
  • Cylinder head OE: 058103373D
Core Selling Points
  1. EA113 AWL 1.8L 20V Turbo: 150HP/210N·m, iconic 5‑valve turbo engine.
  2. Early turbo torque: 210N·m @ 1750rpm, quick off‑the‑line.
  3. Overbuilt cast‑iron block: Tunable & long‑lasting, great for high mileage.
  4. Simple MPI design: Fewer electronics, low maintenance cost, easy repair.
  5. 20V head: Excellent airflow, strong high‑rpm power.
  6. Wide fitment: Passat/Bora/Golf/A4, huge aftermarket demand.
  7. Tested complete assembly: Ready to install, quality guaranteed.
