Robust and Portable Engine Driven Arc Welder with Fast Welding for Rebar Φ14-32 and Comprehensive Protection
Robust and Portable Engine Driven Arc Welder with Fast Welding for Rebar Φ14-32 and Comprehensive Protection
Specifications
Brand Name :
GENWELD
Certification :
CE
Place of Origin :
Chongqing, China
Description

Features

Fast welding for rebar Φ14-32, with neat and attractive butt welds

Advanced IGBT inverter technology, featuring fast dynamic response

Dual IGBT modules, with good consistency in device performance and parameters, ensuring reliable operation

Comprehensive undervoltage, overvoltage, overheating and overcurrent protection, making it safe and reliable

Precise digital display current preset, enabling convenient and intuitive operation

User-friendly, elegant and generous appearance design, for more convenient operation

Three-proof design for key components, suitable for various harsh environments, with stable and reliable operation

Small size and easy to carry

Specially designed for rebar butt-joint in the construction industry


Product Type LWG-630D LWG-630M LWG-630A
Input Power Source Three-phase 380V Three-phase 380V Three-phase 380V
Rated Input Capacity 38.5KVA 38.5KVA 38.5KVA
Inverting Frequency 28KHZ 20KHZ 20KHZ
No-Load Voltage 87V 87V 87V
Duty Cycle 20% 20% 40%
Current Adjustment Range 30–630A 30–630A 30–630A
Rebar Diameter ≤28 ≤32 ≤32
Efficiency 80% 80% 80%
Insulation Class Class F Class F Class F
Dimensions 340×190×330mm 390×215×370mm 485×245×420mm
Weight 9.7KG 11.5KG 14.5KG

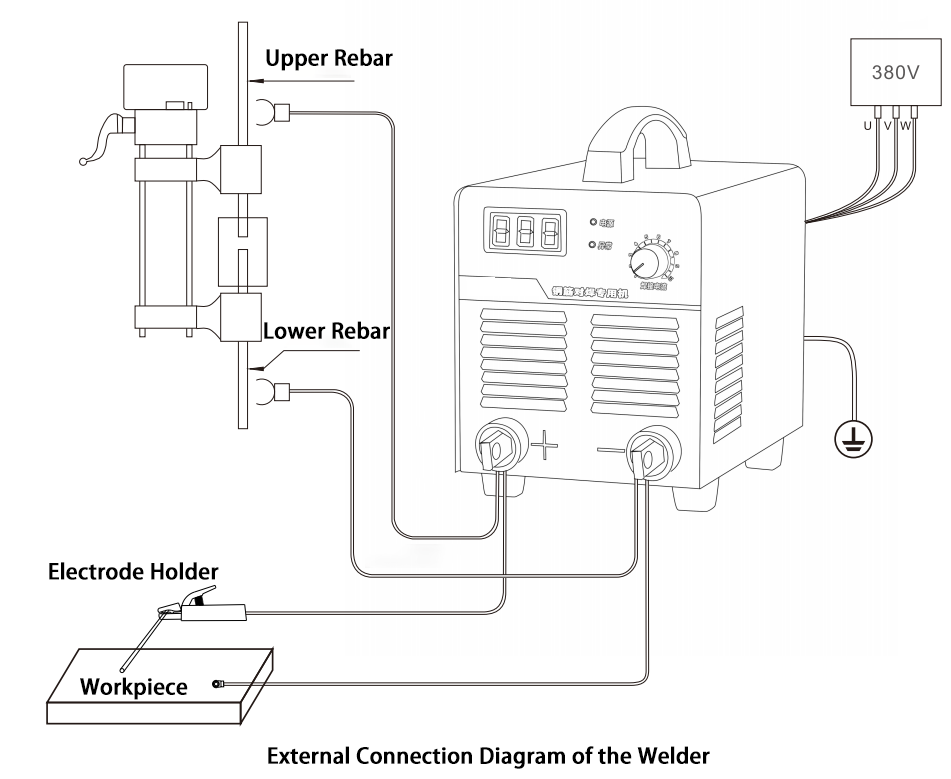

Installation Precautions

Input Voltage: AC3P~380V, 50/60HzInput Cable: ≥6mm², length ≤5 metersDistribution Switch: 63AOutput Cable: 50mm², length ≤30 metersAmbient Temperature: -10℃~+40℃Operating Environment: Do not block the air inlets and outlets; avoid direct sunlight exposure; and pay attention to dust prevention
