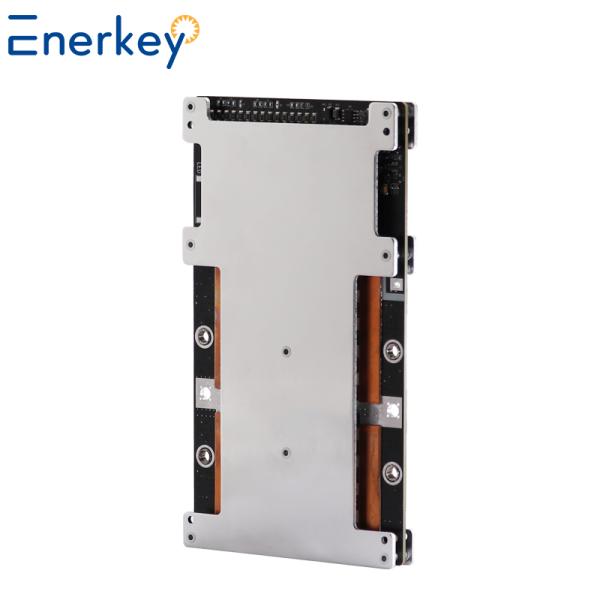

Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Specifications
Model Number :
JW-S3-B14S300A
Place of Origin :
Guangdong, China
Brand Name :
ENERKEY
Packaging Details :
Carton
Supply Ability :
50000 Piece/Pieces per Month
MOQ :
5 pieces
Price :
$50.00/pieces 5-99 pieces
Certification :
ISO9001/ROHS/CE
Base Material :
FR-4
Copper Thickness :
3oz
Board Thickness :
1.6mm
Min. Hole Size :
0.2mm
Min. Line Width :
0.1mm
Min. Line Spacing :
0.1mm
Surface Finishing :
HASL Lead Free
Working Current :
300A
Voltage :
59.2V
Suitable for battery string :
14S
Battery type :
Lithium Battery/Lifepo4 Battery
Size :
L178*W100*T15mm
Solder mask color :
Green.White.Black.Red.Yellow.Blue.Purple.Matte Green. Matte Black
Application :
bms for ebike batetries, bms for solar batteries etc..
Protection function :
Overcharge ,Overdischarge ,Overcurrent ,Short-circuit
Other function :
Balancer
Port :
shenzhen
Description
Enerkey Smart BMS 14S 300A Li-ion/LiFePO4 Battert BMS Board with RS232/RS422/RS485/CAN/USART Protocol
Product Description
Product Name
14S rohs protect bms pcb board
Model Number
JW-S3-B14S300A
PCB Size
L175*W100*T15mm
Charging voltage
DC:16.8V CC/CV
Continuous current
300A
Max. continue charging current
300A
Max. continue discharging current
300A
Over current (adjustable)
800A±10A
Operating Temperature Range
40~+85℃
Storage Temperature Range
40~+125℃
Balance Function
support
Balance current
≤50 mA
Single section voltage accuracy
±25 mV (At 25ºC)
Total voltage accuracy
±100 mV
Product Use Tutorial
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
Li-Ion LiFePO4 Battery BMS Board 14S 300A With RS232 RS422 RS485 CAN USART Protocol
