4200VA 6200VA Hybrid Solar Inverter Pure Sine Wave MPPT - Tianon
4200VA 6200VA Hybrid Solar Inverter Pure Sine Wave MPPT - Tianon
Specifications
Maximum PV Array Power :
5000W – 6000W
Max AC Charge Current :
100A
Brand Name :
TIANON
Net Weight :
8.2kg
Model Number :
SY002-A
Delivery Time :
35 Calendar Days
Series :
SY002
Transfer Time :
10ms (UPS), 20ms (Appliances)
Remote WiFi :
Built inside
Output Waveform :
Pure Sine Wave
MPPT Range Operation Voltage :
60–450VDC
AC Voltage Regulation (Batt. Mode) :
230VAC ±5%
Humidity :
5%–95% RH (Non-condensing)
Price :
Inquiries are welcome
Payment Terms :
L/C,T/T
Packaging Details :
Export-grade carton box with shock-proof foam insert and reinforced outer packaging
MPPT :
Built-in MPPT solar charger
Communication :
RS485 (BMS) communication port
Frequency :
50/60Hz (Auto sensing)
Gross Weight :
8.8–9.2kg
Place of Origin :
Xi'an, China
MOQ :
1 Piece
Battery Voltage :
24VDC / 48VDC (according to model)
Display :
LCD & APP
Maximum Efficiency :
98%
Dual AC Output :
Yes
Power Factor :
0.85 – 0.88
Packing Size :
560×393×196mm
Parallel Capability :
W/O
Operating Temperature :
0°C to 55°C
No Load Power Consumption :
<30W – <40W
Certification :
CE, ISO
Input Voltage :
230VAC
Peak Efficiency :
>93.5% – >94%
Maximum PV Array Open Circuit Voltage :
500VDC
Model Options :
4200VA/3600W, 6200VA/5500W
Storage Temperature :
-15°C to 60°C
Supply Ability :
500 Pieces per Month
Product Type :
On/Off Grid MPPT Solar Inverter
Surge Power :
8400VA – 12400VA
Description
SY002-A 4200VA 6200VA Hybrid Solar Inverter Pure Sine Wave MPPT

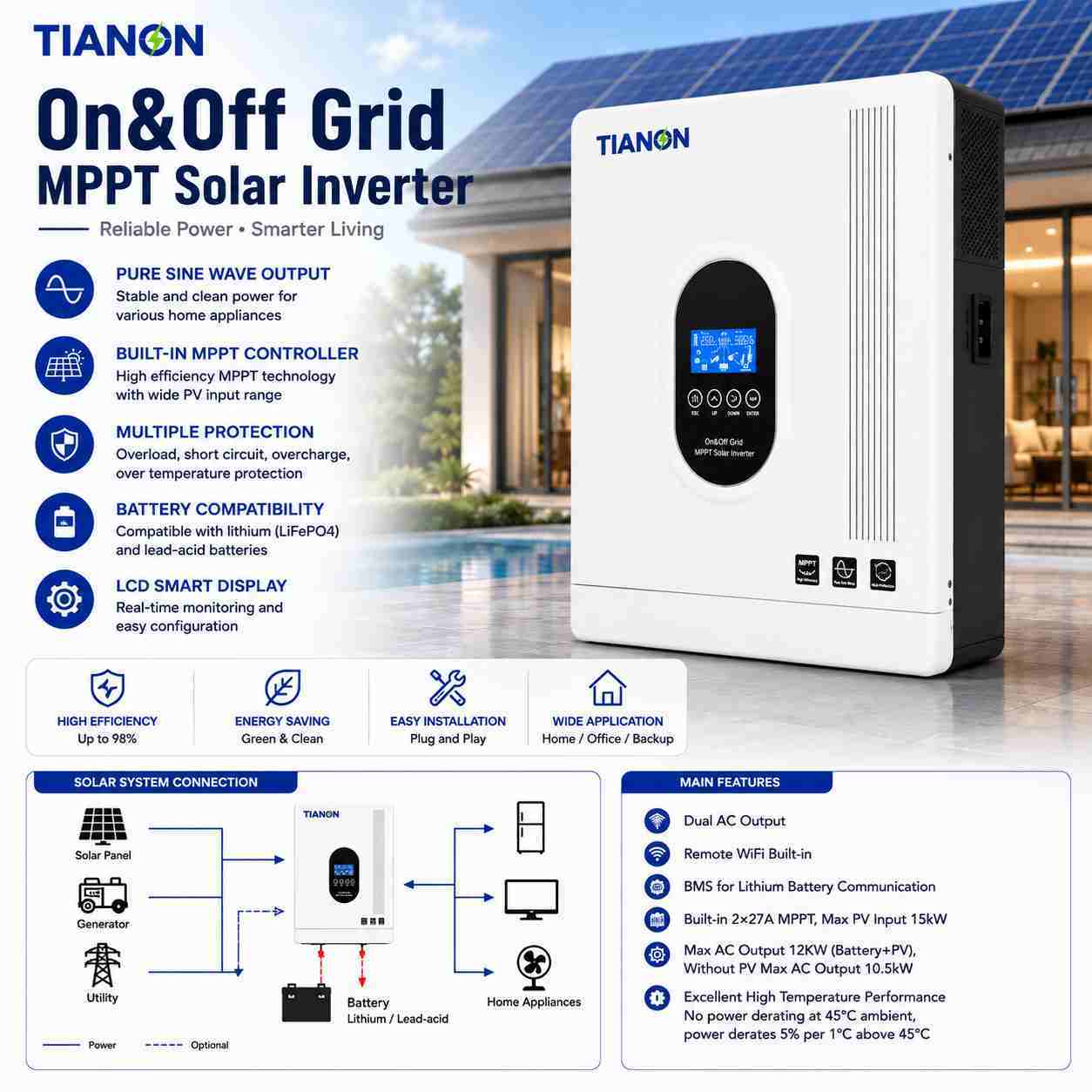

The TIANON SY002-A is an on/off grid MPPT solar inverter available in 4200VA/3600W and 6200VA/5500W ratings. It features pure sine wave output, built-in MPPT solar charging, RS485 BMS communication, dual AC output and remote WiFi, providing reliable hybrid power for residential and backup applications.

Key Features
  • Dual AC output - provides flexible output for on-grid and off-grid operation.
  • Remote WiFi built inside - supports remote monitoring and control.
  • BMS for lithium battery communication - RS485 (BMS) communication port for lithium / LiFePO4 batteries.
  • Built-in 2*27A MPPT - maximum PV input up to 15KW.
  • Max AC output 12KW (Battery+PV) - 10.5KW maximum AC output without PV.
  • Excellent high-temperature performance - no power derating at 45°C ambient; 5% derating per 1°C above 45°C.
Certifications
  • CE - Conformité Européenne marking for European market compliance
  • ISO - International Organization for Standardization quality management
Technical Specifications
Product TypeOn/Off Grid MPPT Solar Inverter
SeriesSY002
Model Options4200VA/3600W, 6200VA/5500W
Input Voltage230VAC
Output WaveformPure Sine Wave
Battery Voltage24VDC / 48VDC (according to model)
MPPTBuilt-in MPPT solar charger
Maximum PV Array Power5000W – 6000W
MPPT Range Operation Voltage60–450VDC
Maximum PV Array Open Circuit Voltage500VDC
Max AC Charge Current100A
CommunicationRS485 (BMS) communication port
DisplayLCD & APP
Parallel CapabilityW/O
Frequency50/60Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode)230VAC ±5%
Transfer Time10ms (UPS), 20ms (Appliances)
Surge Power8400VA – 12400VA
Power Factor0.85 – 0.88
Peak Efficiency>93.5% – >94%
No Load Power Consumption<30W – <40W
Maximum Efficiency98%
Dual AC OutputYes
Remote WiFiBuilt inside
Humidity5%–95% RH (Non-condensing)
Operating Temperature0°C to 55°C
Storage Temperature-15°C to 60°C
Packing Size560*393*196mm
Net Weight8.2kg
Gross Weight8.8–9.2kg
CertificationCE, ISO
Typical Applications
  • Residential solar energy systems
  • Home backup power systems
  • On-grid and off-grid solar power applications
  • Solar battery energy storage systems
  • High-power PV and battery backup applications
  • Systems using lithium / LiFePO4 batteries with BMS communication
FAQ
  1. What power ratings are available? - 4200VA/3600W and 6200VA/5500W.
  2. What is the battery voltage? - 24VDC (4200VA) and 48VDC (6200VA).
  3. Does it work on-grid and off-grid? - Yes, it is an on/off grid (hybrid) solar inverter.
  4. Does it have MPPT? - Yes, a built-in MPPT solar charger is included.
  5. Does it support BMS communication? - Yes, via the RS485 (BMS) communication port.
  6. Can units be connected in parallel? - No, parallel capability is W/O.
Company Introduction

Shaanxi Tianon New Energy Technology Co., Ltd. is a professional manufacturer of integrated energy storage systems with dual manufacturing hubs in Xi'an (R&D and software) and Anhui (high-volume automated production). With over 10 years of lithium battery export experience, we deliver high-quality ESS products backed by rigorous testing and international certification. We serve distributors and installers in 50+ countries across Europe, North America, and Southeast Asia, with full OEM/ODM support and flexible MOQ from 1 module.

For pricing, samples, or OEM inquiries, contact TIANON ENERGY.
