10200VA 12000W Hybrid Solar Inverter Pure Sine Wave MPPT - Tianon
10200VA 12000W Hybrid Solar Inverter Pure Sine Wave MPPT - Tianon
Specifications
Payment Terms :
L/C,T/T
Series :
SY002
Transfer Time :
10ms (UPS), 20ms (Appliances)
Remote WiFi :
Built inside
Place of Origin :
Xi'an, China
Output Waveform :
Pure Sine Wave
MPPT Range Operation Voltage :
90–450VDC / 60–450VDC
AC Voltage Regulation (Batt. Mode) :
230VAC ±5%
Humidity :
5%–95% RH (Non-condensing)
MOQ :
1 Piece
MPPT :
Built-in MPPT solar charger
Communication :
RS485 (BMS) communication port
Frequency :
50/60Hz (Auto sensing)
Gross Weight :
16.2–17.5kg
Battery Voltage :
48VDC
Display :
LCD / LCD & APP
Parallel Capability :
W/O
Operating Temperature :
0°C to 55°C
Maximum PV Array Power :
10800W – 15000W
Max AC Charge Current :
120A – 160A
Supply Ability :
500 Pieces per Month
Net Weight :
14.5kg / 15kg
Price :
Inquiries are welcome
Maximum Efficiency :
98%
Dual AC Output :
Yes
Delivery Time :
35 Calendar Days
Power Factor :
0.8 – 1.0
Packing Size :
607×487×227mm / 595×515×212mm
Brand Name :
TIANON
Certification :
CE, ISO
Packaging Details :
Export-grade carton box with shock-proof foam insert and reinforced outer packaging
Model Options :
10200VA/8200W, 12000W(PV+BAT)
Storage Temperature :
-15°C to 60°C
No Load Power Consumption :
<75W – <110W
Model Number :
SY002-B
Input Voltage :
230VAC
Peak Efficiency :
>93% – >94%
Maximum PV Array Open Circuit Voltage :
500VDC
Product Type :
On/Off Grid MPPT Solar Inverter
Surge Power :
20400VA – 24000VA
Description

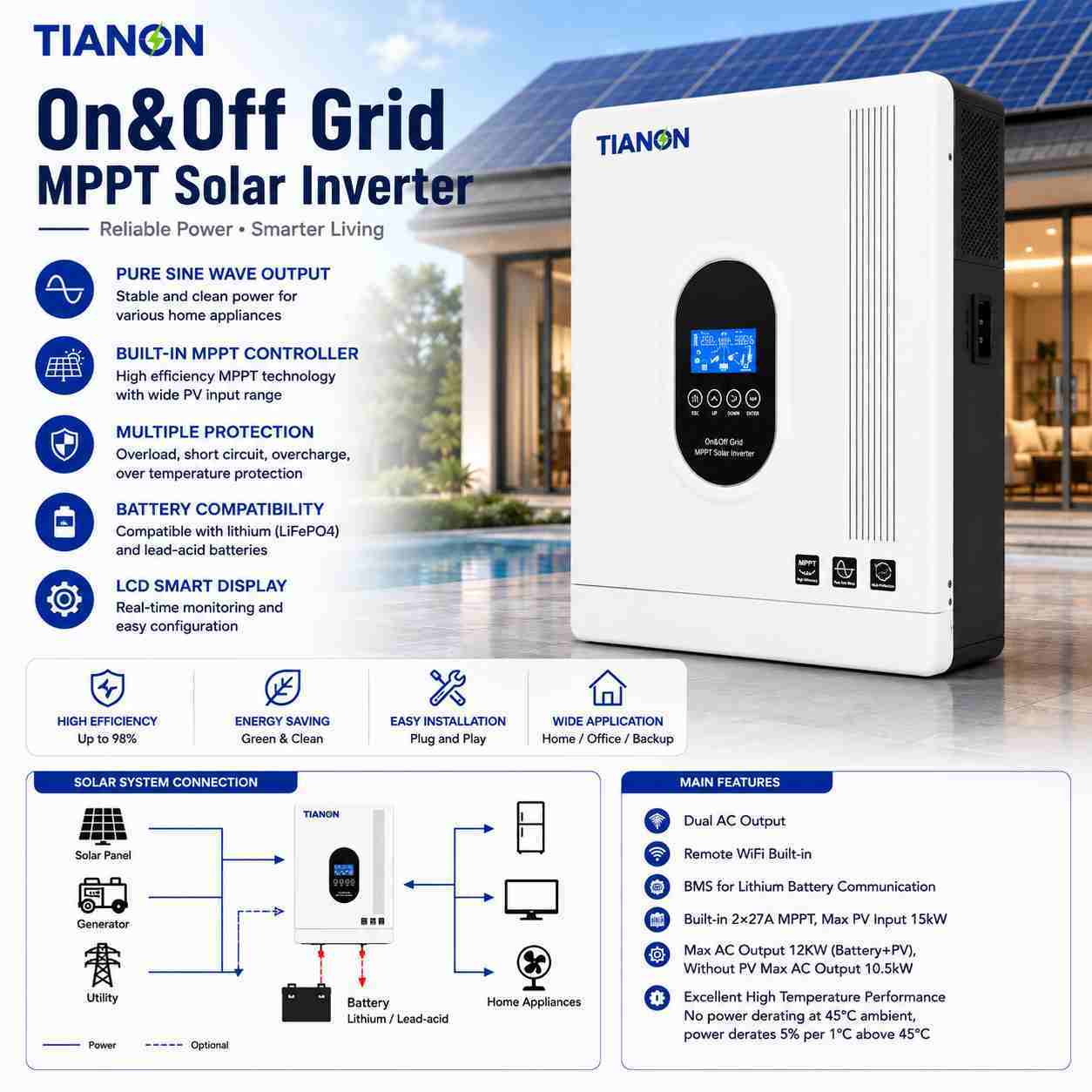

SY002-B 10200VA 12000W Hybrid Solar Inverter Pure Sine Wave MPPT

The TIANON SY002-B is an on/off grid MPPT solar inverter available in 10200VA/8200W and 12000W(PV+BAT) ratings. It features pure sine wave output, built-in MPPT solar charging, RS485 BMS communication, dual AC output and remote WiFi, providing reliable hybrid power for residential and backup applications.

Key Features
  • Dual AC output - provides flexible output for on-grid and off-grid operation.
  • Remote WiFi built inside - supports remote monitoring and control.
  • BMS for lithium battery communication - RS485 (BMS) communication port for lithium / LiFePO4 batteries.
  • Built-in 2*27A MPPT - maximum PV input up to 15KW.
  • Max AC output 12KW (Battery+PV) - 10.5KW maximum AC output without PV.
  • Excellent high-temperature performance - no power derating at 45°C ambient; 5% derating per 1°C above 45°C.
Certifications
  • CE - Conformité Européenne marking for European market compliance
  • ISO - International Organization for Standardization quality management
Technical Specifications
Product TypeOn/Off Grid MPPT Solar Inverter
SeriesSY002
Model Options10200VA/8200W, 12000W(PV+BAT)
Input Voltage230VAC
Output WaveformPure Sine Wave
Battery Voltage48VDC
MPPTBuilt-in MPPT solar charger
Maximum PV Array Power10800W – 15000W
MPPT Range Operation Voltage90–450VDC / 60–450VDC
Maximum PV Array Open Circuit Voltage500VDC
Max AC Charge Current120A – 160A
CommunicationRS485 (BMS) communication port
DisplayLCD / LCD & APP
Parallel CapabilityW/O
Frequency50/60Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode)230VAC ±5%
Transfer Time10ms (UPS), 20ms (Appliances)
Surge Power20400VA – 24000VA
Power Factor0.8 – 1.0
Peak Efficiency>93% – >94%
No Load Power Consumption<75W – <110W
Maximum Efficiency98%
Dual AC OutputYes
Remote WiFiBuilt inside
Humidity5%–95% RH (Non-condensing)
Operating Temperature0°C to 55°C
Storage Temperature-15°C to 60°C
Packing Size607*487*227mm / 595*515*212mm
Net Weight14.5kg / 15kg
Gross Weight16.2–17.5kg
CertificationCE, ISO
Typical Applications
  • Residential solar energy systems
  • Home backup power systems
  • On-grid and off-grid solar power applications
  • Solar battery energy storage systems
  • High-power PV and battery backup applications
  • Systems using lithium / LiFePO4 batteries with BMS communication
FAQ
  1. What power ratings are available? - 10200VA/8200W and 12000W(PV+BAT).
  2. What is the battery voltage? - 48VDC.
  3. Does it work on-grid and off-grid? - Yes, it is an on/off grid (hybrid) solar inverter.
  4. Does it have MPPT? - Yes, a built-in MPPT solar charger is included.
  5. Does it support BMS communication? - Yes, via the RS485 (BMS) communication port.
  6. Can units be connected in parallel? - No, parallel capability is W/O.
Company Introduction

Shaanxi Tianon New Energy Technology Co., Ltd. is a professional manufacturer of integrated energy storage systems with dual manufacturing hubs in Xi'an (R&D and software) and Anhui (high-volume automated production). With over 10 years of lithium battery export experience, we deliver high-quality ESS products backed by rigorous testing and international certification. We serve distributors and installers in 50+ countries across Europe, North America, and Southeast Asia, with full OEM/ODM support and flexible MOQ from 1 module.
