1200W Off Grid MPPT Solar Inverter Pure Sine Wave 12V - Tianon
1200W Off Grid MPPT Solar Inverter Pure Sine Wave 12V - Tianon
Specifications
Series :
SY001
Rated Power :
1200W
Low Battery Alarm :
11.0VDC
MPPT Trackers :
1
Supply Ability :
500 Pieces per Month
Frequency :
50/60Hz (Auto sensing)
Battery Compatibility :
LiFePO4 compatible
Certification :
CE
Low Battery Cut-off :
10.5VDC
Max PV Current :
50A
Net Weight :
3.7kg
Payment Terms :
L/C,T/T
Transfer Time :
10ms (UPS), 20ms (Appliances)
Parallel Capability :
W/O
Storage Temperature :
-15°C to 60°C
MPPT Operating Range :
20–100VDC
Brand Name :
TIANON
Packaging Details :
Export-grade carton box with shock-proof foam insert and reinforced outer packaging
AC Voltage Regulation :
230VAC ±5%
Humidity :
5%–95% RH (Non-condensing)
Maximum Efficiency :
98%
MPPT :
Solar charge controller inside
Communication :
W/O
Maximum PV Array Power :
800W
No Load Consumption :
<23W
Battery Voltage :
12VDC
Gross Weight :
4.2kg
Model Number :
SY001-A
Operating Temperature :
0°C to 55°C
Low Battery Recovery :
11.5VDC
Max AC Charge Current :
50A
Place of Origin :
Xi'an, China
Input Voltage :
230VAC
Float Charge Voltage :
13.5VDC
Peak Efficiency :
>92.5%
Max PV Open Circuit Voltage :
120VDC
MOQ :
1 Piece
Delivery Time :
35 Calendar Days
Output Waveform :
Pure Sine Wave
Power Factor :
1.0
Price :
Inquiries are welcome
Display :
LCD
Best Panel Configuration :
600W 1PCS in 1S
Product Type :
Off Grid MPPT Solar Inverter
Selectable Voltage Range :
170–280VAC (UPS)
Surge Power :
2400VA
Overcharge Protection :
16.0VDC
Packing Size :
347×247×103mm
Description

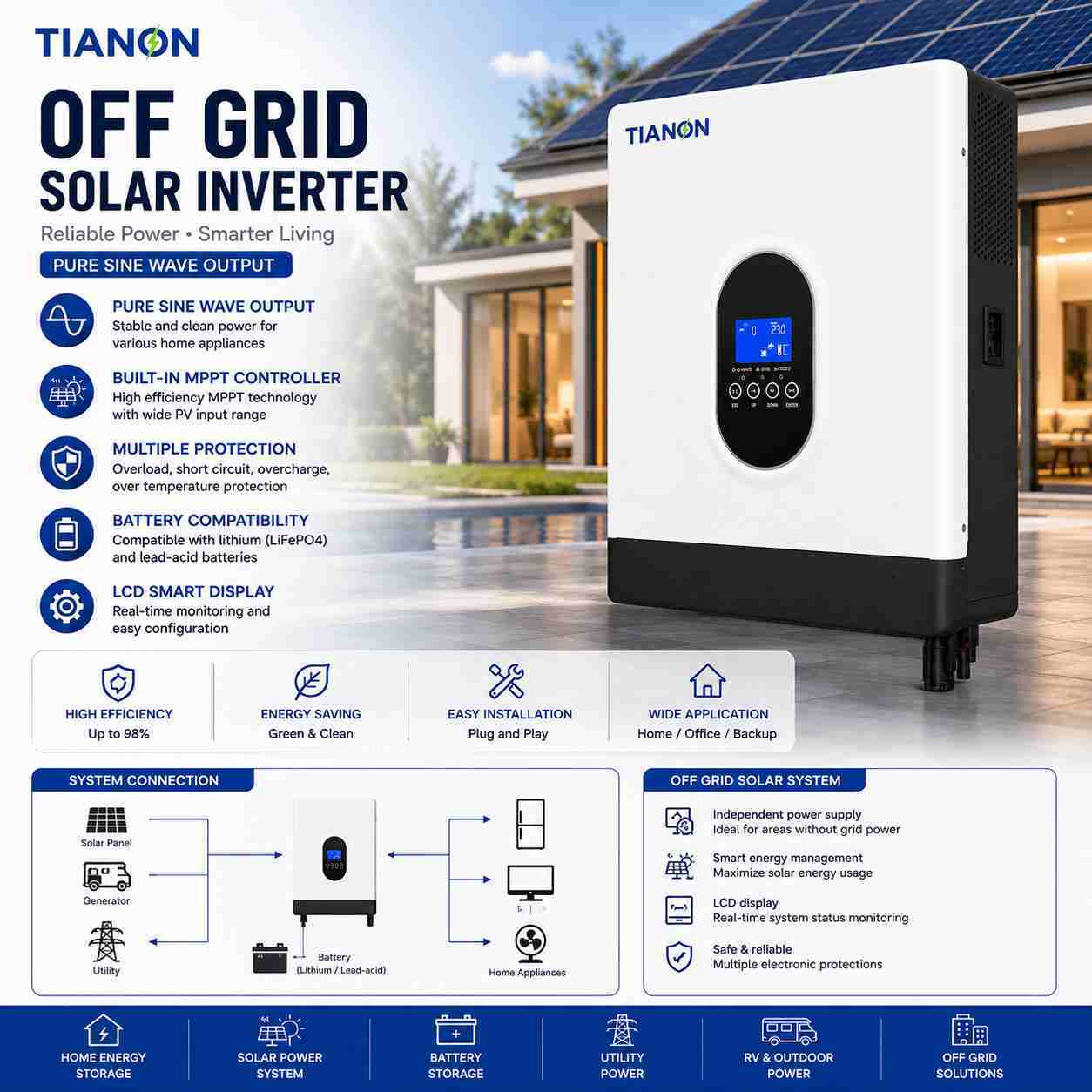

SY001-A 1200W Off Grid MPPT Solar Inverter Pure Sine Wave

The TIANON SY001-A is a 1200W off-grid MPPT solar inverter with pure sine wave output. It integrates an MPPT solar charge controller, LCD display, smart battery protection and LiFePO4 battery compatibility, providing reliable power for off-grid residential, home backup and remote-area applications.

Key Features
  • MPPT solar charge controller inside - integrated MPPT for maximum solar harvesting.
  • Wide PV input range - supports flexible solar panel configurations.
  • Pure sine wave output - clean and stable power for sensitive loads.
  • Smart battery protection - protects the battery from overcharge and deep discharge.
  • LiFePO4 compatibility - works with LiFePO4 lithium batteries.
  • Configurable battery & AC/solar priority - adjustable priority via LCD setting.
  • Reliable quality, economic design - cost-effective solution for off-grid power.
Certifications
  • CE - Conformité Européenne marking for European market compliance
Technical Specifications
Product TypeOff Grid MPPT Solar Inverter
SeriesSY001
Input Voltage230VAC
Output WaveformPure Sine Wave
Frequency50/60Hz (Auto sensing)
AC Voltage Regulation230VAC ±5%
Transfer Time10ms (UPS), 20ms (Appliances)
Maximum Efficiency98%
Battery CompatibilityLiFePO4 compatible
DisplayLCD
MPPTSolar charge controller inside
Parallel CapabilityW/O
Humidity5%–95% RH (Non-condensing)
Operating Temperature0°C to 55°C
Storage Temperature-15°C to 60°C
CertificationCE
Rated Power1200W
Selectable Voltage Range170–280VAC (UPS)
Surge Power2400VA
Power Factor1.0
Peak Efficiency>92.5%
No Load Consumption<23W
Battery Voltage12VDC
Low Battery Alarm11.0VDC
Low Battery Cut-off10.5VDC
Low Battery Recovery11.5VDC
Float Charge Voltage13.5VDC
Overcharge Protection16.0VDC
Maximum PV Array Power800W
MPPT Operating Range20–100VDC
Max PV Open Circuit Voltage120VDC
MPPT Trackers1
Max PV Current50A
Max AC Charge Current50A
Best Panel Configuration600W 1PCS in 1S
CommunicationW/O
Packing Size347*247*103mm
Net Weight3.7kg
Gross Weight4.2kg
Typical Applications
  • Off-grid residential solar systems
  • Home backup power systems
  • Solar battery energy storage systems
  • Remote-area power applications
  • Solar systems using LiFePO4 batteries
FAQ
  1. What is the rated power? - 1200W (1.2KVA).
  2. What is the battery voltage? - 12VDC.
  3. Does it output pure sine wave? - Yes, it provides pure sine wave output.
  4. Does it have an MPPT controller? - Yes, an MPPT solar charge controller is integrated.
  5. Is it LiFePO4 compatible? - Yes, it is compatible with LiFePO4 lithium batteries.
  6. Can units be connected in parallel? - No, parallel capability is W/O.
Company Introduction

Shaanxi Tianon New Energy Technology Co., Ltd. is a professional manufacturer of integrated energy storage systems with dual manufacturing hubs in Xi'an (R&D and software) and Anhui (high-volume automated production). With over 10 years of lithium battery export experience, we deliver high-quality ESS products backed by rigorous testing and international certification. We serve distributors and installers in 50+ countries across Europe, North America, and Southeast Asia, with full OEM/ODM support and flexible MOQ from 1 module.

For pricing, samples, or OEM inquiries, contact TIANON ENERGY.
