Specifications
Inverter Type :
Pure Sine Wave
Max PV Charging Current :
16A
Noise Level :
Low Noise Operation
Product Dimensions :
350*175*612mm
MOQ :
1 Unit
Supply Ability :
3000 Units per Month
Packaging Details :
Form-fitted EPE foam and protective PE bag, double-wall reinforced export-grade carton
Rated Power (AC Output) :
1200W (1.2kW)
IP Protection :
IP20
Net Weight :
33kg
Model Number :
P003
Certification :
CE, UN38.3, MSDS
Price :
Inquiries are welcome
Delivery Time :
35 working days
Nominal Battery Voltage :
12.8V / 51.2V Configuration
PV Input Voltage Range :
17V-115Vdc
Storage Temperature :
-10C to 45C
Housing Material :
High-Strength SPCC Steel
AC Output Frequency :
50Hz / 60Hz (Auto-sensing)
Controller Type :
Built-in MPPT
Charge Temperature :
0C to 60C
Place of Origin :
Shaanxi, China
AC Output Voltage :
220V/230V/240Vac
Cycle Life :
6000+ Cycles @ 25C (80% DOD)
Discharge Temperature :
-10C to 65C
Maximum Altitude :
1000m (Standard)
Communication :
BMS-Inverter Linkage Control (RS485/CAN)
Warranty :
10 Years
Brand Name :
Tianon
Rated Energy (Battery) :
4000Wh (4kWh)
Design Life :
15-20 Years
Cooling :
Intelligent Air Cooling
Battery Type :
LiFePO4 (LFP)
BMS Logic :
Dual-system Linkage Management
Payment Terms :
T/T,L/C
Max PV Input Power :
800W
Product Type :
All-in-One Solar ESS
Display :
Digital LCD Status Screen
Description

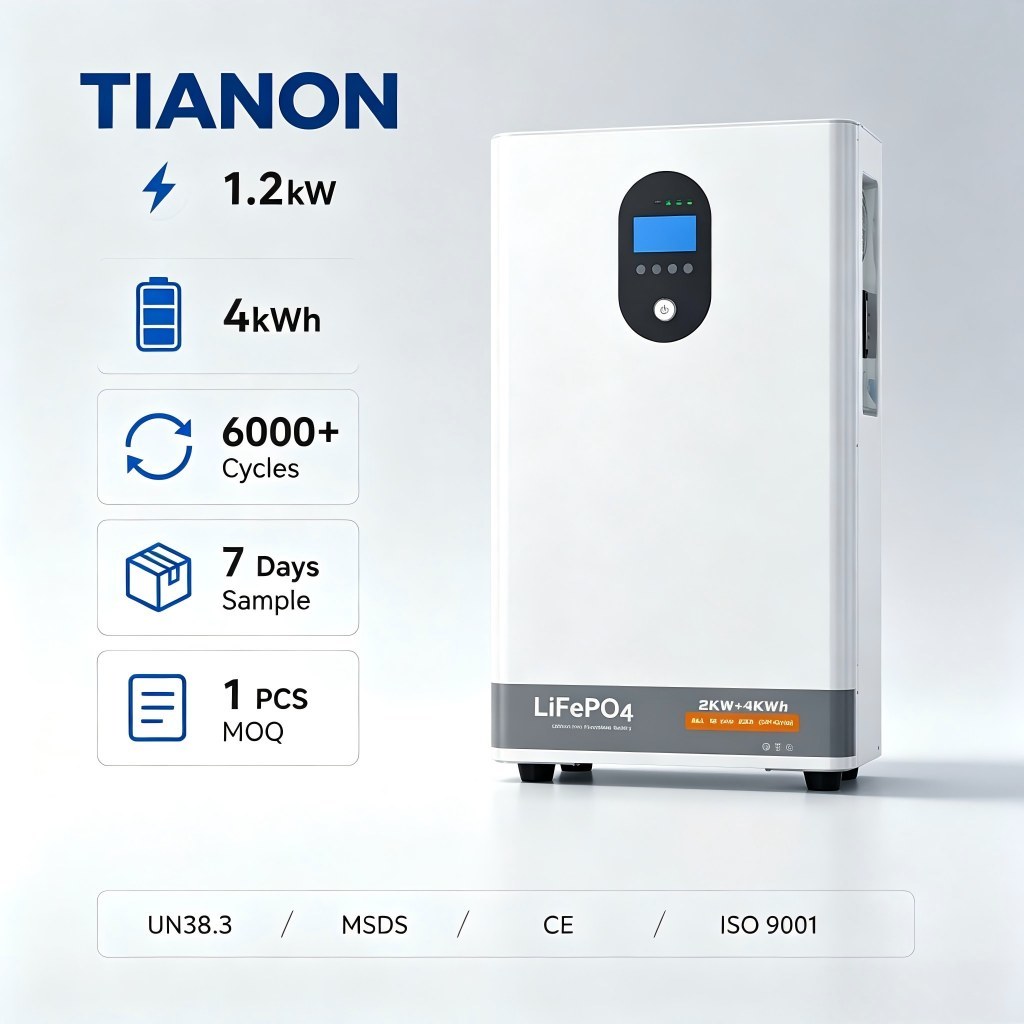

P003 1.2kW 4kWh All-in-One Solar Energy Storage System LiFePO4 Battery Pure Sine Wave Off-Grid Home Kit

The Tianon P003 is a masterpiece of energy integration, combining a high-performance 1.2kW pure sine wave inverter and a robust 4kWh LiFePO4 battery into a single, compact floor-standing unit. Designed for modern residential needs and small-scale off-grid applications, this all-in-one system eliminates the complexity of separate components, providing a true plug-and-play energy solution. Built with genuine Grade A Lithium Iron Phosphate (LFP) cells, the system offers unmatched safety and reliability. The integrated 1.2kW inverter delivers a clean pure sine wave output, perfectly suited for sensitive electronics like laptops, medical devices, and high-efficiency home appliances.

Key Features

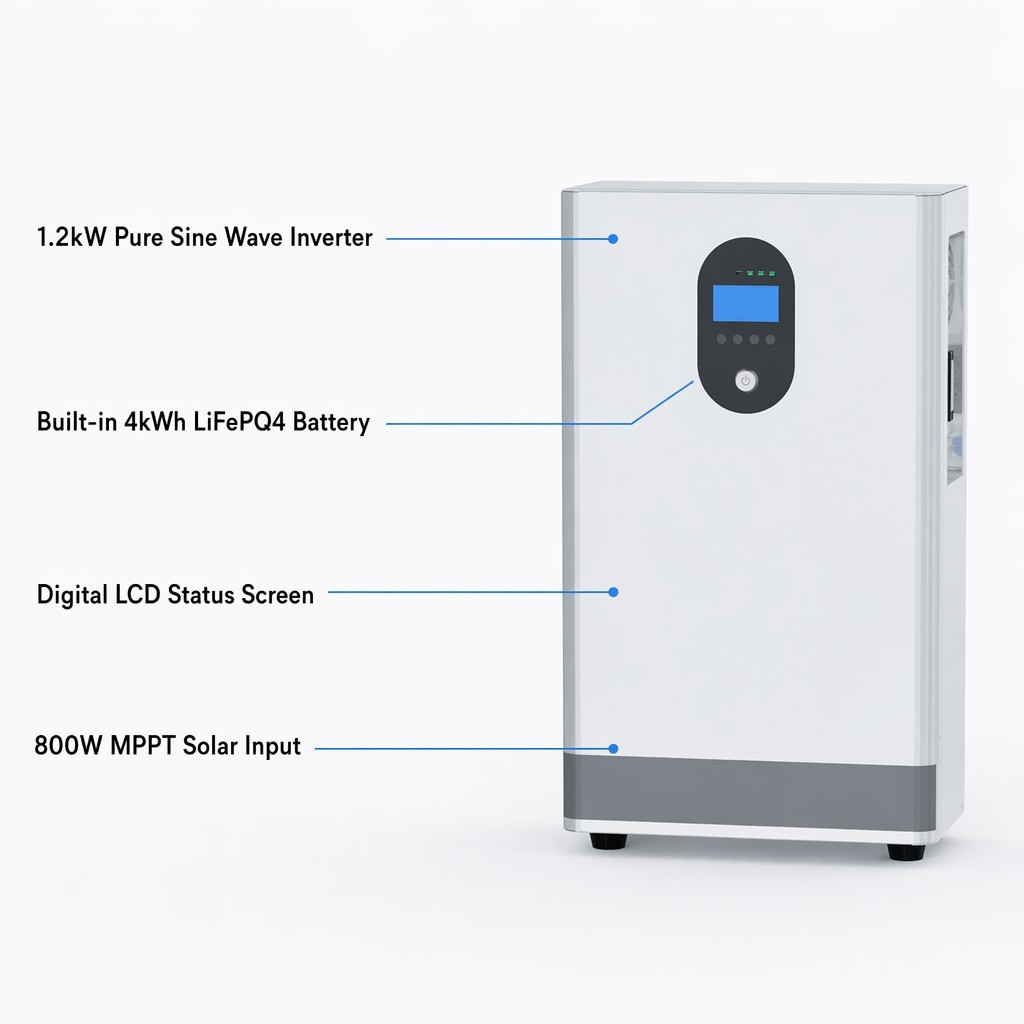

  • Integrated All-in-One Design - Combines inverter, battery, BMS, and MPPT controller in one compact cabinet for space-saving efficiency. Simplifies installation and reduces labor costs for installers.
  • 1.2kW Pure Sine Wave Output - High-efficiency 1200W inverter ensures stable power for all sensitive home appliances. Protects your electronics from damage while maximizing performance.
  • Massive 4kWh Energy Bank - Single unit provides enough storage for basic whole-house essential loads. Guarantees long-term autonomy during power outages or off-grid living.
  • Grade A LiFePO4 Technology - Uses brand new Tier 1 Grade A cells for maximum safety and thermal stability. Highest industry standard for cell quality and fire protection.
  • 6000+ Deep Cycles at 25C - Superior longevity with over 6000 cycles at 80% DOD under room temperature. Delivers incredible ROI with a 15-20 year design life.
  • 800W High-Power MPPT - Built-in solar controller supports fast charging from solar arrays up to 800W. Ensures rapid system recovery using sustainable clean energy.
  • -10C Winter Resilience - Designed to maintain stable discharge performance in cold climates down to -10C. Reliable year-round energy supply even in harsh winter environments.
  • 10-Year Factory Warranty - Direct backing from Tianon specialized Xi'an and Anhui production bases. Complete confidence with professional technical support and long-term service.
Technical Specifications
Product TypeIntegrated All-in-One Solar ESS
Rated Power (AC Output)1200W (1.2kW) Pure Sine Wave
Rated Energy (Battery)4000Wh (4kWh)
Battery TypeLiFePO4 (LFP) Grade A
Nominal Battery Voltage12.8V / 51.2V Configuration
AC Output Voltage220V/230V/240Vac
AC Output Frequency50Hz / 60Hz (Auto-sensing)
PV Input Voltage Range17V-115Vdc
Max PV Input Power800W
Max PV Charging Current16A
Controller TypeBuilt-in MPPT
Cycle Life6000+ Cycles (25C, 80% DOD)
Discharge Temperature-10C to 65C
Charge Temperature0C to 60C
Storage Temperature-10C to 45C
IP ProtectionIP20
DisplayDigital LCD Status Screen
CommunicationBMS-Inverter Linkage (RS485/CAN)
BMS LogicDual-system Linkage Management
CoolingIntelligent Air Cooling
Noise LevelLow Noise Operation
Product Dimensions350*175*612mm
Net Weight33kg
Housing MaterialHigh-Strength SPCC Steel
Maximum Altitude1000m (Standard)
Design Life15-20 Years
CertificationCE / UN38.3 / MSDS
Warranty10 Years
Typical Applications
  • Small Home Backup - Powering lights, TV, and fridge during outages with clean pure sine wave output
  • Tiny House and Cabin - Complete off-grid energy solution for remote living and weekend getaways
  • Garden Office - Stable power for PCs, monitors, and office equipment in detached workspaces
  • Emergency Power Supply - Reliable energy for disaster relief and medical equipment backup
  • Remote Farm Monitoring - Powering irrigation controllers, sensor kits, and small pumps
  • Mobile Coffee Shop - Energy for small espresso machines, grinders, and lighting
  • RV and Caravan Solar - Compact all-in-one storage for travel and camping adventures
  • Apartment Balcony Solar - Integrated storage for urban residents with limited space
FAQ
  1. Is this a complete system? - Yes, it includes the battery, inverter, BMS, and MPPT controller in one unit. Just connect your solar panels and start using.
  2. Can I charge it with solar panels? - Absolutely. It supports up to 800W of solar PV input with the built-in MPPT controller.
  3. What is the discharge limit? - It provides a stable 1.2kW continuous pure sine wave output suitable for sensitive electronics.
  4. Does it work in cold weather? - Yes, it supports discharge down to -10C, making it suitable for diverse climates.
  5. How long can it power my fridge? - With 4kWh energy, it can power a standard fridge for 24-48 hours depending on usage.
  6. What is the minimum order quantity? - Starting from 1 unit. Samples ship within 7 days with UN-certified packaging.
