12.8V 50Ah LiFePO4 Battery Pack Lead Acid Replacement Smart BMS - Tianon
12.8V 50Ah LiFePO4 Battery Pack Lead Acid Replacement Smart BMS - Tianon
Specifications
Brand Name :
TIANON
Model Number :
F001
Cut-off Voltage :
10V
Max Discharge Power :
640W
Supply Ability :
500 Pieces per Month
Packaging Details :
Export-grade carton box with shock-proof foam insert and reinforced outer packaging
Certification :
IEC62619
Product Size (L×W×H) :
198×166×170 mm
Net Weight :
~6 kg
Series :
F001
BMS :
Smart BMS
Nominal Capacity :
50Ah
Max Charge Current :
50A
Case Material :
ABS/Metal
Charge Voltage :
14.6V
Terminal :
M6
Place of Origin :
Xi'an, China
Nominal Energy :
640Wh
Series & Parallel :
4S and 4P
Payment Terms :
L/C,T/T
Cycle Life :
≥3000 Times
Price :
Inquiries are welcome
Warranty :
3 years
Delivery Time :
35 Calendar Days
Product Type :
LiFePO4 Battery Pack
Protection :
Overcharge / Overdischarge / Short-circuit / Overtemperature
Battery Type :
LiFePO4
Operating Temperature :
Charge 0~50°C; Discharge -20~60°C
MOQ :
1 Piece
Nominal Voltage :
12.8V
Optional Function :
Bluetooth or LCD screen
Max Discharge Current :
50A
Description

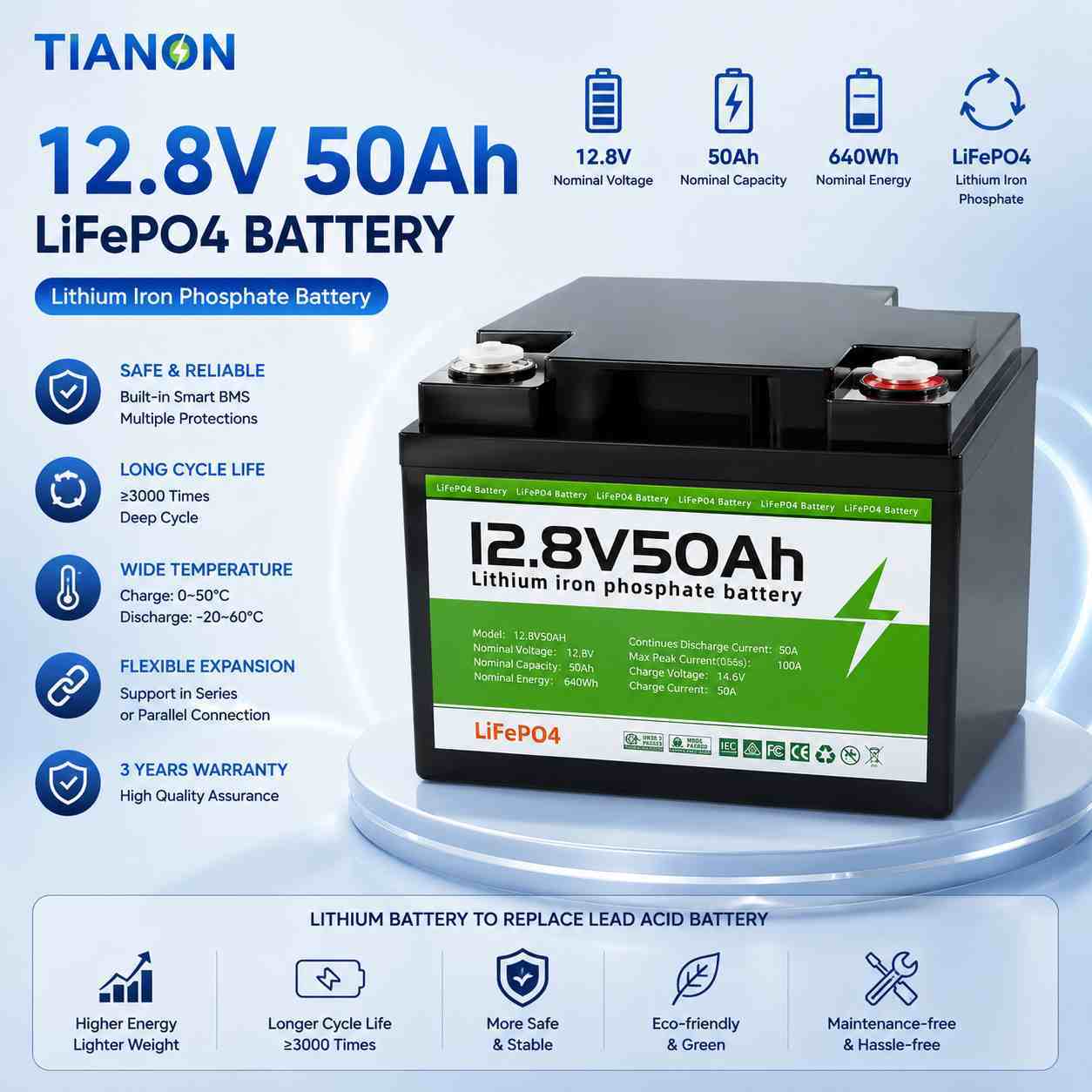

F001 12.8V 50Ah LiFePO4 Battery Pack Lead Acid Replacement Smart BMS

The TIANON F001 is a 12.8V 50Ah LiFePO4 battery pack designed as a drop-in replacement for lead-acid batteries. It delivers 640Wh of nominal energy with a smart BMS, full protection functions and a cycle life of ≥3000 times, making it ideal for RV, marine, golf cart, solar storage and off-grid applications.

Key Features
  • 12.8V 50Ah LiFePO4 chemistry - 640Wh nominal energy for a lightweight, long-life replacement of lead-acid batteries.
  • Drop-in lead-acid replacement - 12.8V nominal voltage matches standard 12V lead-acid systems for direct replacement.
  • Smart BMS - built-in battery management system for cell protection and monitoring.
  • Full protection - overcharge, overdischarge, short-circuit and overtemperature protection.
  • ≥3000 cycle life - long service life with IEC62619 certification.
  • 4S and 4P connection - supports series and parallel connection for flexible system building.
Certifications
  • IEC62619 - safety requirements for secondary lithium cells and batteries for industrial applications
Technical Specifications
Product Type LiFePO4 Battery Pack
Series F001
Battery Type LiFePO4
Nominal Voltage 12.8V
Charge Voltage 14.6V
Cut-off Voltage 10V
Series & Parallel 4S and 4P
Cycle Life ≥3000 Times
Certification IEC62619
Case Material ABS/Metal
BMS Smart BMS
Protection Overcharge / Overdischarge / Short-circuit / Overtemperature
Warranty 3 years
Optional Function Bluetooth or LCD screen
Operating Temperature Charge 0~50°C; Discharge -20~60°C
Nominal Capacity 50Ah
Nominal Energy 640Wh
Max. Charge Current 50A
Max. Discharge Current 50A
Max. Discharge Power 640W
Terminal M6
Product Size (L*W*H) 198*166*170 mm
Net Weight ~6 kg
Typical Applications
  • RV and recreational vehicle energy systems
  • Marine and boat power systems
  • Golf cart power systems
  • Solar energy storage
  • Off-grid energy storage
  • Backup power systems
  • Lead-acid battery replacement applications
FAQ
  1. What is the capacity of this battery? - This model provides 50Ah nominal capacity (640Wh nominal energy) at 12.8V.
  2. Is it a drop-in replacement for lead-acid batteries? - Yes, the 12.8V nominal voltage matches standard 12V lead-acid systems for direct replacement.
  3. What protection is built in? - A smart BMS provides overcharge, overdischarge, short-circuit and overtemperature protection.
  4. What is the cycle life? - The battery is rated for ≥3000 cycles.
  5. What is the warranty? - A 3-year warranty is provided.
  6. Can the battery be connected in series or parallel? - Yes, it supports 4S and 4P series and parallel connection.
Company Introduction

Shaanxi Tianon New Energy Technology Co., Ltd. is a professional manufacturer of integrated energy storage systems with dual manufacturing hubs in Xi'an (R&D and software) and Anhui (high-volume automated production). With over 10 years of lithium battery export experience, we deliver high-quality ESS products backed by rigorous testing and international certification. We serve distributors and installers in 50+ countries across Europe, North America, and Southeast Asia, with full OEM/ODM support and flexible MOQ from 1 module.

For pricing, samples, or OEM inquiries, contact TIANON ENERGY.
