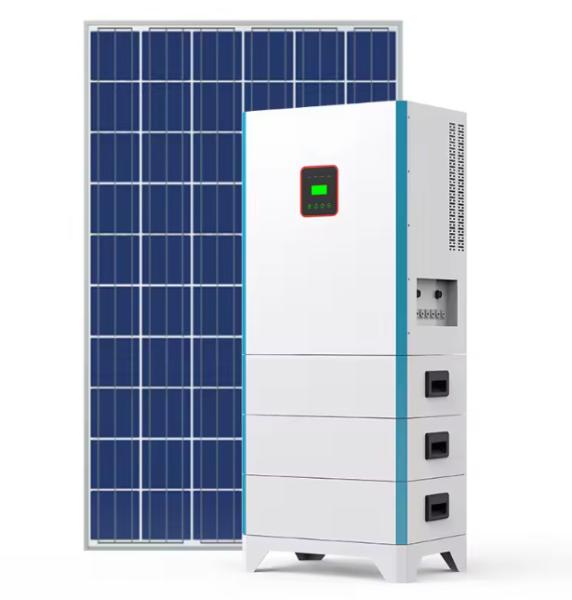

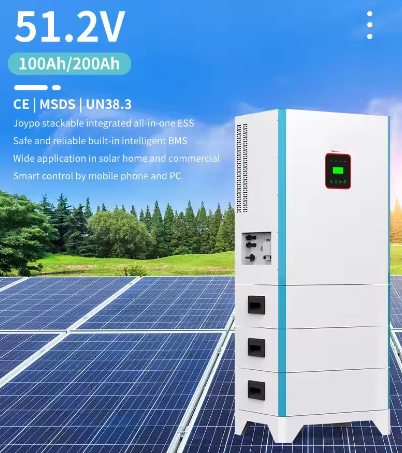

Energy Storage Split Type Liquid Cooling Charging System All In One For Industrial Energy Storage Battery
Energy Storage Split Type Liquid Cooling Charging System All In One For Industrial Energy Storage Battery
Energy Storage Split Type Liquid Cooling Charging System All In One For Industrial Energy Storage Battery
Energy Storage Split Type Liquid Cooling Charging System All In One For Industrial Energy Storage Battery
Energy Storage Split Type Liquid Cooling Charging System All In One For Industrial Energy Storage Battery
Energy Storage Split Type Liquid Cooling Charging System All In One For Industrial Energy Storage Battery
Specifications
Place of Origin :
Guangdong, China
MOQ :
negotiated
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
negotiated
Output Power Range :
20-50 kWh
Cycle life :
>6000times
Output Frequency :
50Hz/60Hz
Weight :
205kg
Battery Type :
Lithium Ion
Description

Energy Storage Split Type Liquid Cooling Charging System All In One For Industrial Energy Storage Battery​

Product parameters

Item Name
10KW Home Solar Energy Storage System
Model No.
JP-GY10-10
JP-GY10-15
JP-GY10-20
JP-GY10-25
Working Voltage
172.8V-233.6V
259.2V-350.4V
345.6V-467.2V
432V-584V
Max charge voltage
233.6V
350.4V
467.2V
584V
Module energy
5.12KWh
Module quantity
2
3
4
5
Energy
10.24kwh
15.36kwh
20.48kwh
25.6kwh
Size(mm)
630*420*1300
630*420*1500
630*420*1700
630*420*1900
Weight(kg)
205Kg
260Kg
315Kg
370Kg
Nominal output voltage
380V, 3W+N+PE
Max Continuous Charge and Discharge Current
40A
Max Charge Power
10KW
IP level
IP21
Communication
RS485/CAN/WIFI
Cycle life
≥6000 times
Warranty
5 Years
Supported Certifications
CE/RoHS/KC/BIS/MSDS/UN38.3 etc

Energy Storage Split Type Liquid Cooling Charging System All In One For Industrial Energy Storage Battery

FAQ

Question 1: Do you have your own factory for your company?

Answer 1: Yes, we are an energy system integrator with our factory to integrate different components and test the system stability & proformance.

Question 2: What is the lead time?
Answer 2:Normally 25 working days after advance payment.
Question 3: What is payment term?
Answer 3: TT, LC etc. are acceptable.
Question 4: Is sample available and free?
Answer 4: Sample will charge cost.
Question 5: Could you print our company LOGO on the nameplate and package?
Answer 5: Yes, we can.
Question 6: Do you have solar project engineer who can guide me to install system?
Answer 6: Yes, we have a professional engineer team. They can teach you how to install a solar system.
