Specifications
Place of Origin :
china
MOQ :
negotiated
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
negotiated
Cycle Life :
6000 Times
Type :
Lifepo4/Li-ion
Weight :
58Kg
Warranty :
5 Years
Nominal Voltage :
48V
Nominal Capacity :
100Ah/200Ah
Description

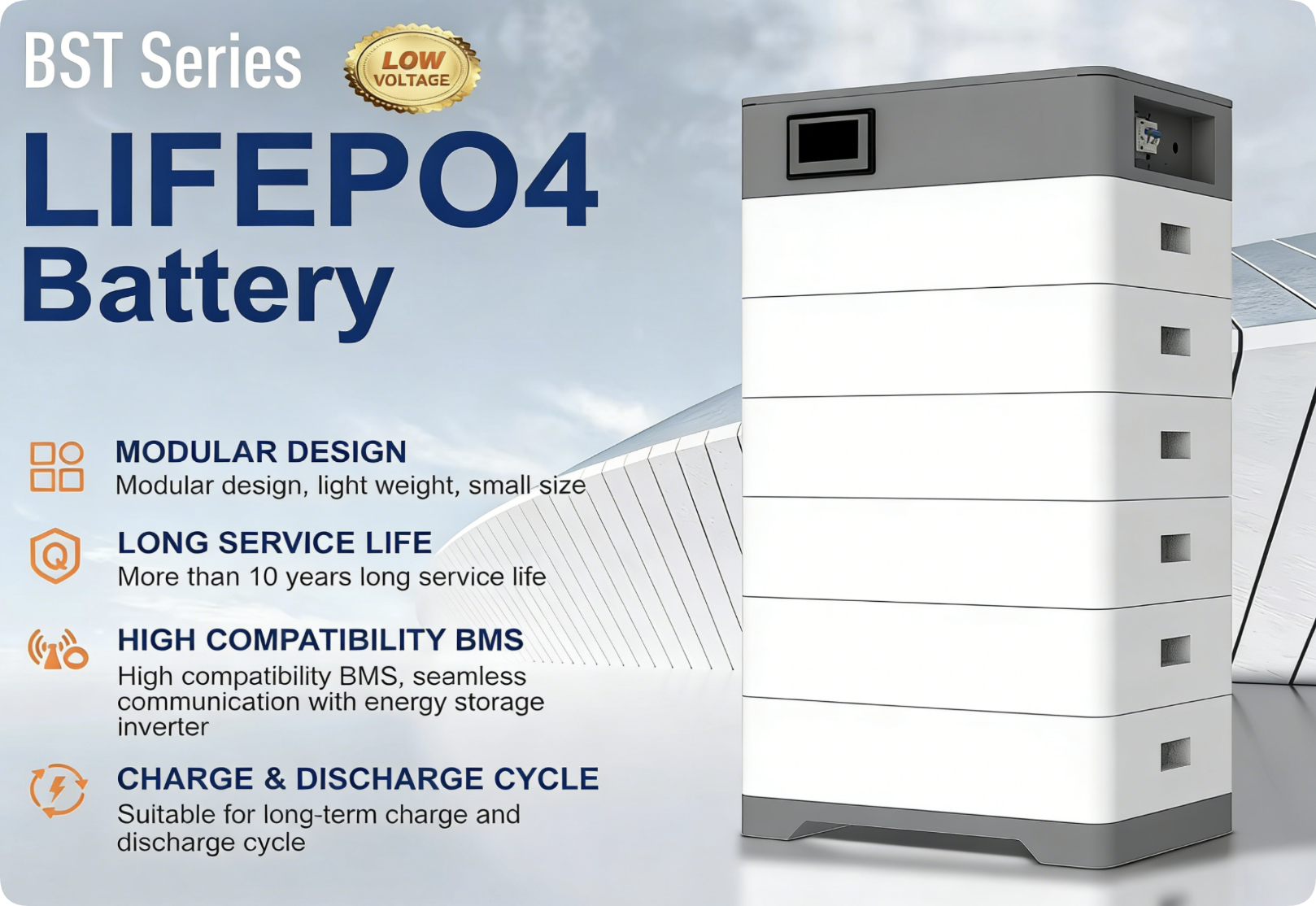

Lightweight Energy Storage Lithium Battery Pack 48 Volt Lifepo4 Solar Home System

Cell

Model

LFP50160119/3.2V/300Ah

Capacity

300Ah

Rated Voltage

3.2V

Internal Resistance

≤0.5mΩ

Combination Standard

A. Resistance()=0.3mΩ
B. Voltage=5mV

Combination Method

16S1P



Electrical
Characteristics

Nominal Voltage

51.2V

Nominal Capacity

300Ah

Energy

15kWh

Internal Resistance

≤20m Ω

Cycle Life

>8000 cycles

Months Self Discharge

<3%

Efficiency of Discharge

96~99% @150A



Standard
Charge

Charge Voltage

58.4V±0.2V

Charge Mode

0.5C to 58.4V,then 58.4V,
chargecurrent to 0.05C(CC/CV)

Charge Current

0.5C

Max. Charge Current

200A



Standard
Discharge

Continuous Current

200A

Max. Pulse Current

200A (MAX12S)

Discharge Cut-off Voltage

40V



Environmental

Charge Temperature

0 ℃ to 55 ℃ @60±25%
Relative Humidity

Discharge Temperature

-20 ℃ to 55 ℃ @60±25% Relative Humidity

Storage Temperature

0 ℃ to 40 ℃ @60±25% Relative Humidity

Water Dust Resistance

IP20



Mechanical

Plastic Case

metal

Dimensions( mm)

420*600*180mm

Weight(kg)

15 0 K G


Lightweight Energy Storage Lithium Battery 48V Lifepo4 Home Solar Battery System

Lithium Battery Energy Storage System - Advantages

1. High energy density, space-saving

2. Fast charging & discharging speed

3. Long cycle life, low replacement cost

4. High charge-discharge efficiency

5. Safe & stable operation performance

6. Low self-discharge rate, energy-saving

7. Environmentally friendly, zero pollution

8. Intelligent BMS, smart monitoring

Lithium Battery Energy Storage System - Application Scenarios

1. Residential household power backup

2. Commercial building energy management

3. Industrial peak regulation & energy saving

4. Grid frequency regulation & stabilization

5. Off-grid remote area power supply

6. Solar PV system energy storage

7. Wind power complementary storage

8. Emergency rescue power support

9. Data center uninterrupted power

FAQ

Q1: What is the Moa for the products?

Depending on the order details.Large quantity can get the discount.

Q2: Can samples be sent to customers?

Yes, samples are supported (some items for free sample)

Q3: Do you take orders for private labels?

Yes, we do. We can make your own private paper card/logo as your requirement.

Q4: Do you supply custom packaging and accept OEM?

Yes, we can make custom packaging for you. You just need to send the logo and your request, we will make the design.

Q5: How long does the producing and delivery time?

Around time depends on the amount of your order, info our service team to get more details please.

Q6: What are the shipping ways you can offer?

By air/sea according to customers'requirements.

Q7: Do your products come with warranty?

Yes, we promise 5-10 years warranty according different model.

Q8: Are you a factory? Shall we have a tour of your factory before we cooperate?

Yes, we are a leading supplier and manufacturer in Guangdong China,we have 10+ years industrial experience in telecommunications & energy products.
