OTV-S7 Autoclave Endoscopy Camera Head Endoscopy Camera Medical Camera Scope
OTV-S7 Autoclave Endoscopy Camera Head Endoscopy Camera Medical Camera Scope
OTV-S7 Autoclave Endoscopy Camera Head Endoscopy Camera Medical Camera Scope
OTV-S7 Autoclave Endoscopy Camera Head Endoscopy Camera Medical Camera Scope
Specifications
Material :
metal and plastic
MOQ :
1 piece
Price :
Negotiable
Packaging Details :
standard packaging
Delivery Time :
5-7 day
Payment Terms :
T/T etc.
Model Number :
OTV-S7
Camera Type :
Endoscopy
Product Name :
Endoscopy camera
Operating Temperature :
0-50℃
condition :
good
Focus :
Auto/Manual
Description
OTV-S7 Autoclave Endoscopy Camera Head Endoscopy Camera Medical Camera Scope
The OTV-S7 Autoclave Endoscopy Camera Head is a medical device used for capturing high-quality images and videos during endoscopic procedures. 2.Compatible with Olympus endoscopes.
Parameters Of OTV-S7 Autoclave Endoscopy Camera Head

  • Brand: Olympus

  • Model: OTV-S7

  • Endoscope Type: Endoscope

The endo camera is used together with the endoscope to build an image.

An endoscopy system for endo camera is an illuminated, usually fiber-optic flexible or rigid tubular instrument for visualizing the interior of a hollow organ or part of the body, whether human or animal, such as the bladder or esophagus. An endoscopy system is also used for diagnostic or therapeutic purposes and has one or more channels to enable the passage of instruments (such as forceps or scissors).

There are different kinds of endoscopy systems; one of them is the video endoscope. This is a flexible medical endoscope for sale that uses a professional endoscope camera located at the distal end to transmit an image via an electronic cable through a video processor and onto a monitor. These video endoscopes are available in a large variety of lengths and diameters and can be used for most endoscope procedures.

OTV-S7 Autoclave Endoscopy Camera Head Endoscopy Camera Medical Camera Scope

Product Overview

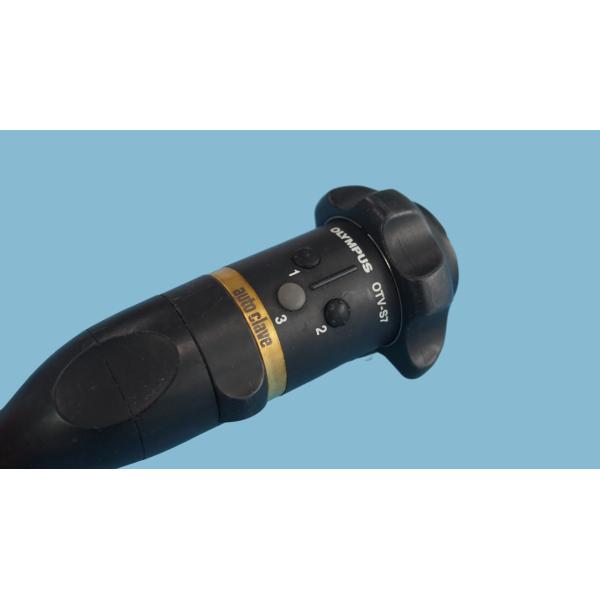

The Olympus OTV-S7 autoclavable camera head is the sterile-field end of a VISERA video chain: it mounts on the eyepiece of a rigid or flexible endoscope through a coupler, captures the image and passes it to the OTV-S7 camera control unit. The autoclavable version is fully sterilisable, so the surgeon holds a sterile device rather than a draped one — the practical benefit being a stable grip, no drape slippage and no risk of the drape catching on the light cable during a long case.

Typical Clinical Use
Laparoscopic and general surgical procedures where a sterile camera head is preferred over a draped camera.
Urology and gynaecology lists running an Olympus VISERA tower.
Replacement of a failed or damaged camera head without replacing the processor or CCU.
Technical Highlights
Fully autoclavable construction for sterile-field use.
Auto and manual focus, with white balance performed from the head or the CCU.
Operating temperature range 0-50°C, matched to the OTV-S7 camera control unit.
Metal and plastic housing designed to survive repeated steam sterilisation cycles.
Compatible with Olympus endoscopes and standard C-mount style couplers for the platform.
Care, Sterilisation and Quality Control

Always leak test the head before autoclaving — steam entering the housing destroys the CCD and is not repairable at reasonable cost. Use only the sterilisation cycle specified by the manufacturer, allow full cool-down before connecting to a warm CCU, and wipe the coupler thread and optics with a lens-safe cloth before every case. Cable strain relief should be checked at the connector; a bent connector pin causes intermittent image loss that is often misdiagnosed as a processor fault. Each head we supply is tested for image output on a matching CCU and inspected for cable and connector condition.

Ordering Notes
Is the coupler included?
Not by default. Tell us the endoscope eyepiece type and we will quote the correct coupler, standard or autoclavable.
Standard or autoclavable?
This listing is the autoclavable version. If you need the non-autoclavable head, ask us for the alternative.
Condition and delivery?
Condition is stated per unit; one piece minimum, dispatch normally within 5-7 working days, warranty quoted per order.
Product Specification Summary
ParameterValue
Model NumberOTV-S7
Materialmetal and plastic
Camera TypeEndoscopy
Operating Temperature0-50℃
Product NameEndoscopy camera
FocusAuto/Manual
conditiongood
