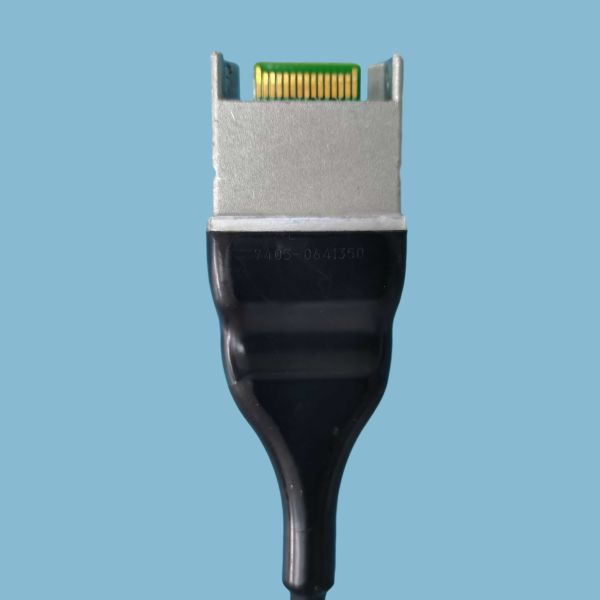

H3-ZA 222010020 Camera Head endoscope camera with light frame rate
H3-ZA 222010020 Camera Head endoscope camera with light frame rate
H3-ZA 222010020 Camera Head endoscope camera with light frame rate
H3-ZA 222010020 Camera Head endoscope camera with light frame rate
H3-ZA 222010020 Camera Head endoscope camera with light frame rate
H3-ZA 222010020 Camera Head endoscope camera with light frame rate
Specifications
Operating Temperature :
0-50℃
Product Name :
Endoscopy camera
condition :
good
Material :
metal and plastic
Focus :
Auto/Manual
MOQ :
1 piece
Price :
Negotiable
Packaging Details :
standard packaging
Delivery Time :
5-7 day
Payment Terms :
T/T etc.
Model Number :
H3-ZA 222010020
Camera Type :
Endoscopy
Description
H3-ZA 222010020 Camera Head Endoscope Camera With Light Frame Rate

Storz H3-ZA 222010020 camera head has good-working and cosmetic fuction,Full HD image resolution andHD quality technology

Parameters Of Storz H3-ZA 222010020 Camera Head

​

  • Frame rate: 50/60 Hz

  • Image sensor type: CCD

  • Number of image sensors: 3

  • Lens: parfocal zoom lens

  • Optical zoom: yes; optical

HK FY-MED

HK FY-MED, advocating the concept of environmental protection and saving, aims to improve the quality of endoscopic products and the service life of the products, thus helping customers to save costs. In addition, we are committed to developing endoscopic equipment and accessories for a long time so as to meet the needs of our customers. We believe that our long time working in the field of endoscopy will enable us to take our service in the field of endoscopy to the next level.

The endo camera is used together with the endoscope to build an image.

An endoscopy system for endo camera is an illuminated, usually fiber-optic flexible or rigid tubular instrument for visualizing the interior of a hollow organ or part of the body, whether human or animal, such as the bladder or esophagus. An endoscopy system is also used for diagnostic or therapeutic purposes and has one or more channels to enable the passage of instruments (such as forceps or scissors).

There are different kinds of endoscopy systems; one of them is the video endoscope. This is a flexible medical endoscope for sale that uses a professional endoscope camera located at the distal end to transmit an image via an electronic cable through a video processor and onto a monitor. These video endoscopes are available in a large variety of lengths and diameters and can be used for most endoscope procedures.

H3-ZA 222010020 Camera Head endoscope camera with light frame rate

Product Overview

The Storz H3-ZA (222010020) is a three-chip full-HD camera head with a parfocal zoom lens and optical zoom. Three CCD sensors separate the incoming light into red, green and blue channels, which is why this class of head renders mucosal colour and tissue differentiation more faithfully than a single-chip design. The parfocal zoom lens holds focus through the zoom range, so the surgeon can zoom in on a structure without losing the plane of focus at the moment it matters.

Typical Clinical Use
Laparoscopic and general surgical video where colour fidelity and zoom matter.
Storz towers using the H3 family of camera heads and IMAGE 1 control units.
Replacement of a damaged head while retaining the existing CCU, light source and monitors.
Technical Highlights
Three CCD sensors for accurate colour separation and full-HD resolution.
Parfocal zoom lens: focus is maintained through the zoom range.
Optical zoom (not digital interpolation) for detail without pixelation.
Frame rate 50/60 Hz for flicker-free imaging under theatre lighting.
Auto and manual focus; operating temperature 0-50°C.
Care, Sterilisation and Quality Control

Leak test before autoclaving where the head is autoclavable, cool fully before reconnection, and clean the coupler optics with lens-safe materials. Check the cable at the strain relief: a bent connector pin produces intermittent image loss that is often blamed on the CCU. Each head is checked for good working and cosmetic condition, tested for image output and inspected for cable and connector integrity before dispatch.

Ordering Notes
Is a coupler or light cable included?
No. Tell us your endoscope eyepiece and light cable type and we will quote the correct accessories.
Which control unit does it need?
The matching Storz IMAGE 1 generation control unit. Send us your model and we will confirm.
Condition and delivery?
Condition is stated per unit; one piece minimum, dispatch normally within 5-7 working days, warranty quoted per order.
Product Specification Summary
ParameterValue
Model NumberH3-ZA 222010020
Operating Temperature0-50℃
Product NameEndoscopy camera
conditiongood
Materialmetal and plastic
FocusAuto/Manual
Camera TypeEndoscopy
