OTV-S190 Endoscopy Processor CLV-S190 CH-S190-XZ-Q-E Camera Head
OTV-S190 Endoscopy Processor CLV-S190 CH-S190-XZ-Q-E Camera Head
Specifications
Condition :
New/Used
Weight :
Varies
condition :
good
Product Name :
Endoscopy Processor
MOQ :
1 piece
Price :
Negotiable
Packaging Details :
standard packaging
Delivery Time :
5-7 day
Payment Terms :
T/T etc.
Material :
Plastic and Metal
Type :
Medical Equipment
Model Number :
OTV-S190+CLV-S190+CH-S190-XZ-Q-E
Description
OTV-S190+CLV-S190+CH-S190-XZ-Q-E Image Processing Techniques Camera Head

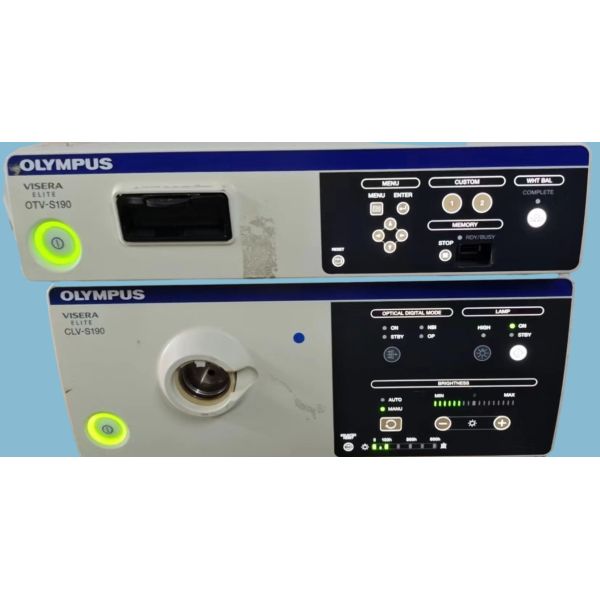

Olympus OTV-S190 Video Processor & CLV-S190 Light Source & CH-S190-XZ-E/Q HD Camera Head

The OTV-S190 and CLV-S190 systems feature advanced HDTV video processors and high-intensity 300-watt light sources to provide the clearest images for endoscopic surgery. It uses structure-enhanced image processing techniques to electronically emphasize detailed patterns and edges of the image to increase sharpness.

The CH-S190-XZ-E/Q is an HD Autoclavable Camera Head with an HD 3CCD that delivers high-definition image quality with high precision detail. Its most outstanding advantage is a 20% increase in NBI brightness, which greatly enhances the visualization of blood vessels and other tissues on the mucosal surface.

Parameters of OTV-S190+CLV-S190+CH-S190-XZ-Q-E

OTV-S190

Power Supply: Voltage 120 - 240V AC; +10%

Frequency: 50/60 Hz; +1 HZ

Consumption Electric Power: 150 VA

Size: Dimensions: (W x H x D) 370 x 85 x 455 mm

Weight: 8.8 kg

CLV-S190

Power Supply: Voltage 120-240V AC; +10%

Frequency: 50/60Hz; + 3HZ

Consumption Electric Power: 500 VA

Size Dimensions: (W x H x D) 370 x 150 x 474 mm (standard)

Weight: 14.9 kg

CH-S190-XZ-E/Q

Size (Camera Head Dimension W x H x D):

XZ-E Type: 50 x 63 x 142 mm

XZ-Q Type: 45 x 58 x 161 mm

Weight: 350 g

Observation:

Pickup System: 0.85 cm/0.33 inches solid-state image pickup

Magnification Ratio: Focal distance f = 15.8 – 31.3 mm

HK FY-MED

HK FY-MED, advocating the concept of environmental protection and saving, aims to improve the quality of endoscopic products and the service life of the products, thus helping customers to save costs. In addition, we are committed to developing endoscopic equipment and accessories for a long time so as to meet the needs of our customers. We believe that our long time working in the field of endoscopy will enable us to take our service in the field of endoscopy to the next level.

The processor has a signal processing circuit that is provided with a digital signal processor. The digital processor generates a coarse video signal that is indirectly displayable on a video screen from image signals generated by a charge coupled device sensor .An auxiliary circuit has a correction circuit that generates another coarse video signal that is directly displayable on the video screen included for the following: (a) video endoscope (b) a camera for an endoscope.

OTV-S190 Endoscopy Processor CLV-S190 CH-S190-XZ-Q-E Camera Head

Product Overview

This is a complete Olympus VISERA Elite imaging set: the OTV-S190 HDTV video processor, the CLV-S190 300 W light source and the CH-S190-XZ-E/Q autoclavable HD camera head with a 3CCD sensor. The three units are designed to work as one chain — the processor applies structure enhancement to emphasise fine patterns and edges, the 300 W light source provides the intensity needed for HDTV exposure, and the 3CCD head delivers the colour separation that makes the enhancement useful rather than merely sharp.

Typical Clinical Use
Laparoscopic and general surgical video on the VISERA Elite platform.
Departments upgrading to HDTV imaging while keeping existing endoscopes.
Replacement of a complete imaging chain where individual components have failed or are mismatched.
Technical Highlights
OTV-S190 HDTV video processor with structure-enhanced image processing.
CLV-S190 high-intensity 300 W light source.
CH-S190-XZ-E/Q autoclavable HD camera head with 3CCD sensor.
Electronic emphasis of detailed patterns and edges to increase apparent sharpness.
Matched Olympus ecosystem: one service route for the whole imaging chain.
Installation, Care and Quality Control

Keep the rear ventilation of both processor and light source clear, and clean the light source air filter at the manual's interval. The camera head is autoclavable but must be leak tested before every cycle. Xenon lamps require full cool-down before replacement and must never be touched with bare fingers. Run white balance with the scope attached and the light at working intensity. Each component is powered on and tested individually, then as a chain where a complete set is supplied.

Ordering Notes
Can I buy the units separately?
Yes — processor, light source and camera head can be quoted individually or as a set. Tell us which parts you already have.
Which scopes work with the OTV-S190?
VISERA Elite compatible Olympus endoscopes. Send us your scope models and we will confirm.
Condition and delivery?
Condition is stated per unit; one piece minimum, dispatch normally within 5-7 working days, warranty quoted per order.
Product Specification Summary
ParameterValue
Model NumberOTV-S190+CLV-S190+CH-S190-XZ-Q-E
ConditionNew/Used
WeightVaries
MaterialPlastic and Metal
Product NameEndoscopy Processor
TypeMedical Equipment
