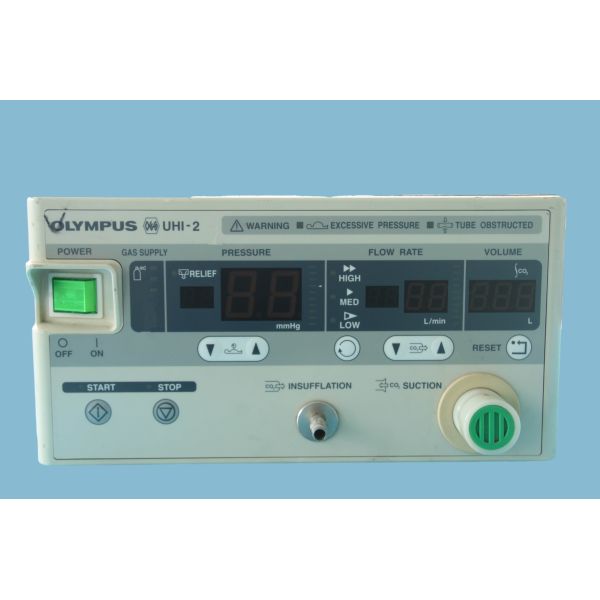

Parameters Of UHI-2 Endoscopic Insufflator

• Brand: Olympus

• Type: Endoscopy System

• Model: UHI-2

Dimensions of UHI-2 Endoscopic Insufflator:

• Height: 6.5 in (16.5 cm)

• Width: 11.6 in (29.5 cm)

• Depth: 13.2 in (33.5 cm)

• Weight: 22 lbs (10 kg)

Description of UHI-2 Endoscopic Insufflator:

The Olympus UHI-2 is a High-Flow insufflator with a built-in smoke evacuation system. It provides optimum abdominal conditions which allow for a more focused surgery. The UHI-2 has a large full panel display for quick status checks, a 3-step flow rate setting (Hi, Med, and Low) for fast setup, and an automatic overpressure release valve.

The Olympus UHI-2 is an endoscopic insufflator. Olympus insufflators are used to inflate a cavity within the body to give more workroom for the surgeons. Most insufflators use CO2 to inflate the cavity because it is non-flammable, colorless, and dissolves into the body. Insufflators can be used in radiological imaging as well as endoscopic procedures.

• Maximum flow rate of 20 L/Min

• Easy-to-Read displays

• Excellent visibility, even during electrosurgery

• 3 Main flow settings

• Built-in smoke evacuation

• Audible and visual pressure warnings

General of UHI-2 Endoscopic Insufflator:

• Maximum Flow Rate: 20 L/Min

• Bacterial Filter: Yes

• Type (Configuration): Electronic

• Display: Yes

• Low-Pressure Warning: Yes

• Flow Options:

  Low: 0.5 - 1.5 L/Min

  Medium: 1.5 - 9 L/Min

  High: 10 - 20 L/Min

• Alert Type: Audible and Visual

• Activation Press: Set Point + 5

• Time Delay (Breath Detector): 0

• Electronic Pressure Reduction: Yes

• Insufflation Volume Indicator: Yes

• Peritoneal Pressure Indicator: Yes

• Gas Used: CO2

• Other:

Smoke Evacuation

Built-in Footswitch
