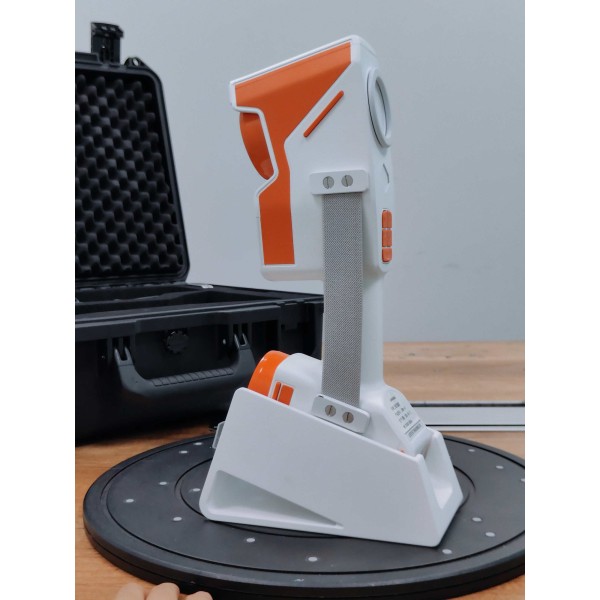

Phasight Max-Dual Twin-Head Handheld 3D Scanner 172 Blue Laser Lines Dual-Camera Synchronized 0.020mm
Phasight Max-Dual Twin-Head Handheld 3D Scanner 172 Blue Laser Lines Dual-Camera Synchronized 0.020mm
Phasight Max-Dual Twin-Head Handheld 3D Scanner 172 Blue Laser Lines Dual-Camera Synchronized 0.020mm
Phasight Max-Dual Twin-Head Handheld 3D Scanner 172 Blue Laser Lines Dual-Camera Synchronized 0.020mm
Phasight Max-Dual Twin-Head Handheld 3D Scanner 172 Blue Laser Lines Dual-Camera Synchronized 0.020mm
Phasight Max-Dual Twin-Head Handheld 3D Scanner 172 Blue Laser Lines Dual-Camera Synchronized 0.020mm
Phasight Max-Dual Twin-Head Handheld 3D Scanner 172 Blue Laser Lines Dual-Camera Synchronized 0.020mm
Phasight Max-Dual Twin-Head Handheld 3D Scanner 172 Blue Laser Lines Dual-Camera Synchronized 0.020mm
Specifications
Payment Terms :
T/T, L/C, Western Union
Standoff / DOF :
250mm (500mm fine) / 500mm
MOQ :
1 Set
Supply Ability :
8 Sets
Packaging Details :
AIWINGS branded industrial-grade flight case with custom foam insert, export-grade wooden crate
Laser Lines :
86 cross + 7 parallel +
Temp / Interface :
-20℃ ~ 40℃ / USB 3.0
Certification :
CE, FCC, RoHS, ISO 9001
Place of Origin :
Beijing, China
Volumetric Accuracy :
0.020mm + 0.040mm/m
Price :
USD 72,000 - 86,000 / Set
Max Resolution :
0.020mm
Brand Name :
AIWINGS
Output :
ASC / IGS / TXT /
Scan Rate :
8,600,000 points/sec
Delivery Time :
30-35 days
Laser Safety :
Class II (eye-safe)
Max Accuracy :
Up to 0.020mm
Scan Area :
800 × 700mm
Description

Phasight Max-Dual Twin-Head Handheld 3D Scanner 172 Blue Laser Lines Dual-Camera Synchronized 0.020mm

Built on the Phasight Max Series large-format platform — 86 laser lines with an expanded 800×700mm scan area for large-component metrology.

Key Features

  • 172 synchronized laser lines from dual scan heads capture both sides of a steel beam in a single pass — scan complete structural assemblies without repositioning
  • Virtual fit analysis: scan two mating structural sections, virtually assemble in software, verify bolted connection alignment, interface gap, and interference
  • Interference detection with 0.020mm accuracy: identify potential clash conditions between installed systems and the primary steel structure
  • Module assembly verification: scan completed modules, compute interface dimensions against integration plan, validate all module-to-module interfaces align within tolerance

Packing List

  • Steel structure assembly · Modular construction verification · Ship block integration · Offshore topside module QC · Heavy fabrication interface control
  • Manufactured by Beijing AIXUNFEI Technology Co., Ltd. (AIWINGS) — a recognized Specialized & Sophisticated enterprise and National High-Tech Enterprise. www.aiwings.cc | Independent R&D · Metrology-grade accuracy · Customized solutions available · Multiple invention patents and software copyrights. Value-added services: 48-hour on-site inspection service · Equipment rental (bare rental / with technical support / with training included).

Technical Specifications

Laser Lines86 cross + 7 parallel + 1 single-line deep-hole
Scan Rate8,600,000 points/sec
Max AccuracyUp to 0.020mm
Volumetric Accuracy0.020mm + 0.040mm/m
Max Resolution0.020mm
Scan Area800 × 700mm
Standoff / DOF250mm (500mm fine) / 500mm
Laser SafetyClass II (eye-safe)
OutputASC / IGS / TXT / UMK / STL / PLY / OBJ
Temp / Interface-20℃ ~ 40℃ / USB 3.0
