Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Specifications
Model Number :
T
Place of Origin :
Zhejiang, China
Brand Name :
careful
Certification :
ISO/ROHS/SGS
MOQ :
10 pieces
Price :
$0.19/pieces 10-4999 pieces
Type :
soft
Supplier Type :
factory
Application :
electronic and electrical equipment
Brand :
careful
Package Type :
carton
Operating Temperature :
<300℃
Tolerance :
20%
Package / Case :
as the customer required
Sample :
Free Charge
Material :
Many for selection
MOQ :
10 PCS
Packing :
Carton
Delivery Date :
25-30 Days
Packaging Details :
Standard exporting carton or as customer's request
Delivery Time :
7-20 Days
Description

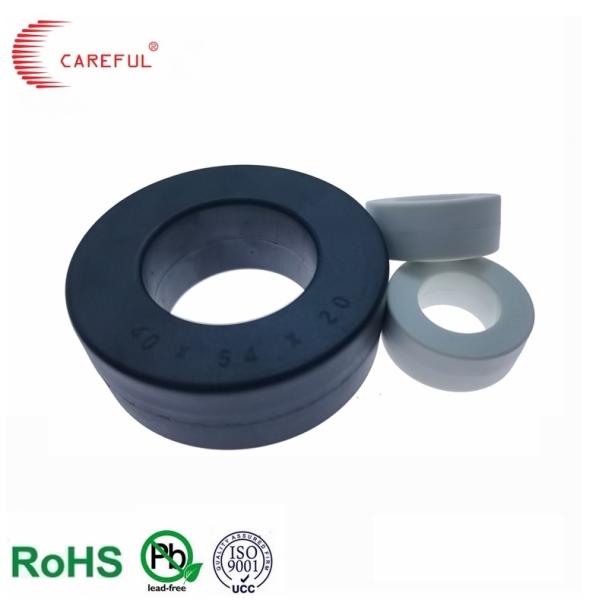

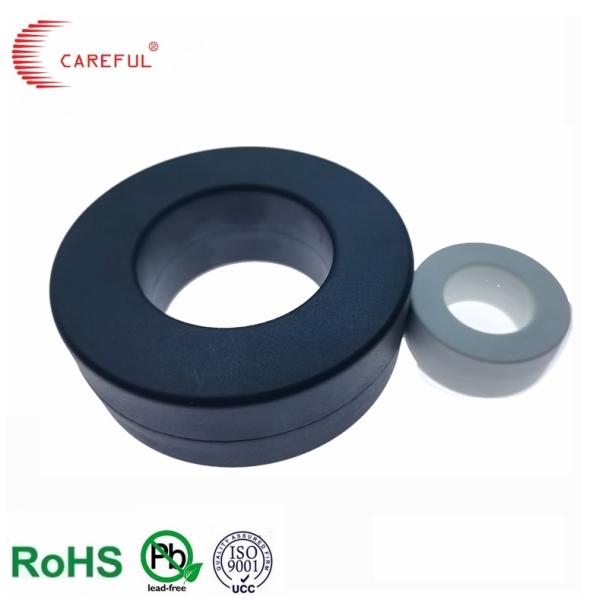

Ik107B Low losses amorphous nanocrystalline toroidal core for common-mode inductor Amorphous core

Products Description
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Item
Value
Place of Origin
China
Zhejiang
Brand Name
Careful
Model Number
T
Type
Soft
Composite
Amorphous
Shape
Coil
Application
Industrial Magnet
Tolerance
±10%
Certificates
ISO9001-2015
Permeability
>100000
Material
Amorphous&Nanocrystalline

RH Specifications Dimensions:mm
A B C
16×25×9 16±0.5 25±0.6 9±0.5
16×25.6×8 16±0.4 25.6±0.5 8±0.3
16×27×6.35 16±0.5 27±0.7 6.35±0.4
16×27×9 16±0.4 27±0.5 9±0.3
16×28×7 16±0.5 28±0.7 7±0.4
16×28×7.9 16±0.4 28±0.5 7.9±0.3
16×28×8 16±0.5 28±0.7 8±0.4
16×28×9 16±0.5 28±0.7 9±0.5
16×28×10 16±0.5 28±0.7 10±0.5
16×28×10.7 16±0.5 28±0.7 10.7±0.5
16×28.5×6.35 16±0.5 28.5±0.7 6.35±0.4
16×28.5×7 16±0.5 28.5±0.7 7±0.4
16×28.5×7.9 16±0.4 28.5±0.5 7.9±0.3
16×28.5×8 16±0.5 28.5±0.7 8±0.4
16×28.5×9.5 16±0.5 28.5±0.7 9.5±0.5
16×28.7×7.85 16±0.4 28.7±0.5 7.85±0.3
16×30×8 16±0.5 30±1 8±0.4
16×33.3×8.2 16±0.5 33.3±1 8.2±0.4
16×50.8×7.9 16±0.4 50.8±0.8 7.9±0.3
16×50.8×9 16±0.4 50.8±0.8 9±0.3
16.25×50.8×7.9 16.25±0.5 50.8±1 7.9±0.4
17.35×25.3×8.7 17.35±0.4 25.3±0.5 8.7±0.3
17.5×20×10 17.5±0.6 20±0.5 10±0.5
17.5×20×12.5 17.5±0.6 20±0.5 12.5±0.5
17.5×23×12.7 17.5±0.4 23±0.5 12.7±0.4
17.5×23.5×10 17.5±0.6 23.5±0.6 10±0.5
17.5×23.5×12.5 17.5±0.4 23±0.5 12.5±0.4
17.5×24×10.5 17.5±0.6 24±0.6 10.5±0.5
17.5×25×9.5 17.5±0.4 25±0.5 9.5±0.3
17.5×25×10.7 17.5±0.6 25±0.6 10.7±0.5
17.5×25.4×8.3 17.5±0.4 25.4±0.5 8.3±0.3
17.5×25.4×9.5 17.5±0.4 25.4±0.5 9.5±0.3
17.5×25.5×9 17.5±0.4 25.5±0.5 9±0.3
17.5×25.5×11 17.5±0.4 25.5±0.5 11±0.4
17.5×26.5×9.5 17.5±0.6 26.5±0.7 9.5±0.5
17.5×27×8 17.5±0.4 27±0.5 8±0.3
17.5×28.5×8.3 17.5±0.6 28.5±0.7 8.3±0.4
17.5×28.5×9 17.5±0.4 28.5±0.5 9±0.3
17.5×28.5×9.5 17.5±0.6 28.5±0.7 9.5±0.5
17.5×28.5×10 17.5±0.6 28.5±0.7 10±0.5
17.5×28.5×10.5 17.5±0.6 28.5±0.7 10.5±0.5
17.5×28.5×10.7 17.5±0.4 28.5±0.5 10.7±0.4
17.5×28.5×11.3 17.5±0.6 28.5±0.7 11.3±0.5
17.5×28.5×11.7 17.5±0.6 28.5±0.7 11.7±0.5
17.5×28.5×12 17.5±0.6 28.5±0.7 12±0.5
17.5×28.5×12.5 17.5±0.6 28.5±0.7 12.5±0.5
17.5×33×9.5 17.5±0.4 33±0.6 9.5±0.4
17.5×35×9.5 17.5±0.6 35±1 9.5±0.5
18×20×12 18±0.4 20±0.5 12±0.4
18×25.5×10 18±0.4 25.5±0.5 10±0.4
18×28×10 18±0.6 28±0.7 10±0.5
18×29×10 18±0.6 29±0.7 10±0.5
18×36.3×9.4 18±0.6 36.3±1 9.4±0.5
18.2×20×5.6 18.2±0.4 20±0.5 5.6±0.3
18.2×23.5×9.5 18.2±0.6 23.5±0.6 9.4±0.5
18.2×25.5×11 18.2±0.6 25.5±0.6 11±0.5
18.2×28.5×9.5 18.2±0.6 28.5±0.7 9.5±0.5
18.2×28.5×11 18.2±0.4 28.5±0.5 11±0.4
18.2×30×5.6 18.2±0.4 30±0.6 5.6±0.3
18.4×20.5×12.5 18.4±0.6 20.5±0.6 12.5±0.5
18.4×28.5×9.5 18.4±0.4 28.5±0.5 9.5±0.3
18.4×28.5×10.3 18.4±0.6 28.5±0.7 10.3±0.5
18.4×28.5×10.5 18.4±0.4 28.5±0.5 10.5±0.4
18.4×28.5×11 18.4±0.6 28.5±0.7 11±0.5
18.4×30×10.3 18.4±0.4 30±0.6 10.3±0.4
18.5×35×10.5 18.5±0.4 35±0.6 10.5±0.4
18.67×28.5×11.2 18.67±0.4 28.5±0.5 11.2±0.4
18.7×28.5×12.6 18.7±0.4 28.5±0.5 12.6±0.4
18.7×50.8×10 18.7±0.6 50.8±2.5 10±0.5
18.8×50.8×10.15 18.8±0.4 50.8±0.8 10.15±0.4
19×26×11 19±0.4 26±0.5 11±0.4
19×28×13 19±0.4 28±0.5 13±0.4
19×28.5×12.7 19±0.6 28.5±0.7 12.7±0.5
19×29×12 19±0.6 29±0.7 12±0.5
19×29×13 19±0.6 29±0.7 13±0.5
19×31.5×5.8 19±0.4 31.5±0.6 5.8±0.3
19×40×10.15 19±0.4 40±0.7 10.15±0.4
19×50.3×10 19±0.6 50.3±1 10±0.5
19×50.8×10.15 19±0.4 50.8±0.8 10.15±0.4
20×30×8 20±0.6 30±1 8±0.3
20.7×28×12 20.7±0.5 28±0.5 12±0.4
20.7×28.5×12 20.7±0.6 28.5±0.7 12±0.5
20.8×30×11.6 20.8±0.6 30±1 11.6±0.5
21×28.5×13 21±0.5 28.5±0.5 13±0.4
21×29×15 21±0.6 29±0.7 15±0.6
21×30×9 21±0.5 30±0.6 9±0.3
21×30×13 21±0.6 30±1 13±0.5
21×37×9 21±0.6 37±1 9±0.5
22.5×25×13.5 22.5±0.6 25±0.6 13.5±0.5
22.5×28×13.8 22.5±0.5 28±0.5 13.8±0.4
22.5×29×13.8 22.5±0.6 29±0.7 13.8±0.5
22.8×29×13.8 22.8±0.5 29±0.5 13.8±0.4
25×30×15 25±0.5 30±0.6 15±0.4
25.8×28.5×12.6 25.8±0.5 28.5±0.5 12.6±0.4
25.9×26.5×12.9 25.9±0.5 26.5±0.5 12.9±0.4
25.9×28.5×12.6 25.9±0.7 28.5±0.7 12.6±0.5
25.9×29×12.7 25.9±0.7 29±1 12.7±0.5
26×28×13 26±0.5 28±0.5 13±0.4
26×28×16 26±0.7 28±0.7 16±0.6
26×28.5×13 26±0.7 28.5±0.7 13±0.5
26×29×13 26±0.5 29±0.5 13±0.4
26×30×13 26±0.7 20±0.5 13±0.5
26×35×13 26±0.5 35±0.6 13±0.4
27.5×28.5×13.5 27.5±0.7 28.5±0.7 13.5±0.5
28×28.5×16 28±0.5 28.5±0.5 16±0.4
28×29×13.8 28±0.5 29±0.5 13.8±0.4
28×30×13.8 28±0.7 30±0.7 13.8±0.5
28×35×16 28±0.5 35±0.6 16±0.4
31×32×19 31±0.6 32±0.6 19±0.4
38×50×20 38±0.6 50±0.8 20±0.5
38×50×23 38±0.6 50±0.8 23±0.5
38×50×25 38±0.6 50±0.8 25±0.5

Product packaging
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Ik107B Low Losses Amorphous Nanocrystalline Toroidal Core For Common Mode Inductor Amorphous Core
Huzhou Careful Magnetism Co., Ltd. is a technically leading corporation, integrating production, management, research, development and service. Our company was established in 2001, Huzhou Careful Magnetism Co., Ltd - a key enterprise in Huzhou City. Our company was assessed as "High and New Technology Enterprise in Zhejiang Province". We have more than 20 years of experience in the field, as our boom development, now we own 3 factoies to service more and more clinets.
FAQ
1. Who are we?
We are based in Zhejiang, China, start from 2001,sell to Domestic Market(60.00%),Eastern Europe(10.00%),South Asia(5.00%),Eastern Asia(5.00%),North America(5.00%),Northern Europe(4.00%),South America(3.00%),Southern Europe(3.00%),Western Europe(2.00%),Oceania(1.00%),Central America(1.00%),Southeast Asia(1.00%). There are total about 1000+ people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.What can you buy from us?
Soft Ferrite Core,Amorphous core,Inductors,nizn ferite

4. Why should you buy from us not from other suppliers?
we are the biggest manufacture of ferrite core in China for more than 30 years, also with production line of Amorphous core, SMD core, inductors for years. We are already the supplier of Microsoft,GREE, Midea, SAMSUNG, ASUS, Panasonic, etc.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Escrow; Language Spoken: English, Chinese
