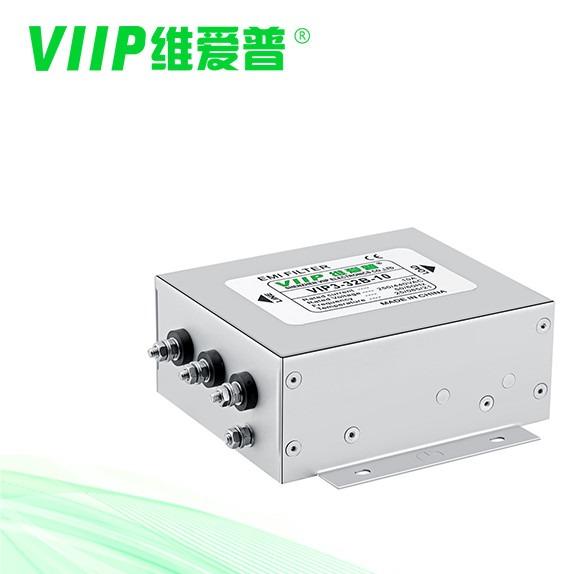

Information Protection 380V 440V 3 Phase EMI Filter With Screw
Information Protection 380V 440V 3 Phase EMI Filter With Screw
Specifications
Brand Name :
VIIP WeiAiPu
Model Number :
VIP3-32B-100
Certification :
CE TUV UL CQC
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2000 pcs within 10-15 days
Packaging Details :
33*33*18
Transfer function :
general purpose
Rated current :
100A
Case :
Metal
Product name :
Common mode EMI/RFI filter
Nominal center frequency :
50/60Hz
Temperature range :
25 / 085 / 21
Delivery Time :
5-10 Days for samples
Input Impedance :
500VDC/100MOHM MIN
Frequency Range :
150 kHz to 30 GHz
Storage Temperature :
-40℃~+85℃
Item :
EMI filter
Operating Frequency :
50/60HZ
Nominal Center Frequency :
50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)
Dimensions :
Varies depending on model
Port :
Shenzhen
Termination Style :
Solder Pins
Rated Current :
Different
Weight :
290g-1000g
Insulation Resistance :
≥100MΩ
Rohs Compliant :
Yes
Humidity :
≤95%RH
Description

380V 440V 3 Phase EMI Filter With Block Terminal for Information protection

Description:

suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specification

Item 3 phase emi Filter
Model VIP3-32B-100
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 100A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 2250VDC
Line to Ground 2700VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 1pcs
Applications Laser equipment
leading time 5~15 weekdays

More details:

Rated current: 0.5-2000A

Optional medical versions(H type)

Solder lug, stud or terminal block connection(over 250A it's copper bar)

Custom specific versions on request

Suitable for three-phase three-line power supply

VIP3-32B series are two-stage common mode high performance three­ phase three-line filters

VIP3-32C series are two-stage filters comprising one common mode and one differential mode with enhanced filtering effect of the differential mode interference

Excellent common and differential mode filtering effect for interferance from 10KHz to 30MHz

520VAC or 690VAC high voltage versions optional

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]		 Physical Dimensions Electrical Schematics Terminals Weight [g]
VIP3-32B-10 10A <4.0mA Fig 2 Fig 1 M4 1400
VIP3-32B-20 20A <4.0mA Fig 2 Fig 1 M4 1400
VIP3-32B-50 50A <6.0mA Fig 2 Fig 1 M6 1600
VIP3-32B-100 100A <6.0mA Fig 2 Fig 1 M8 3700
VIP3-32B-150 150A <6.0mA Fig 2 Fig 1 M10 7000
VIP3-32B-200 200A <6.0mA Fig 2 Fig 1 M10 7000
VIP3-32C-06 6A <4.0mA Fig 2 Fig 2 M4 650
VIP3-32C-10 10A <4.0mA Fig 1 Fig 2 M4 650
VIP3-32C-20 20A <10.0mA Fig 1 Fig 2 M4 1400
VIP3-32C-50 50A <10.0mA Fig 2 Fig 2 M6 3200

Electrical schematic:

Information Protection 380V 440V 3 Phase EMI Filter With Screw

Mechanical Dimension(Unit: mm)

Information Protection 380V 440V 3 Phase EMI Filter With Screw

　 　 A B C E F G H I J K L M N p Q
VIP3-32B 10A 120 100 50 130 153 60 115 Φ4.0 6 50 28 10 39 25 M4
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
20A 120 100 50 130 151 60 115 Φ4.0 6 50 28 10 3 25 M4
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
50A 150 105 60 135 190 90 120 Φ4.0 6 50 35 15 31 52 5 M6
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
100A 200 127 80 170 269 116 150 Φ6.0 9 70 50 20 9 46 MB
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
150A 260 170 100 220 324 172 196 Φ8.0 12 90 65 30 46 63 M10
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
200A 260 170 100 220 323 172 196 Φ8.0 12 90 65 30 42 63 M10
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
VIP3-32C 6A 96 80 42 105 131 50 95 Φ4.0 6 42 26 9 32 29 5 M4
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
10A 96 80 42 105 130 50 95 Φ4.0 6 42 26 9 42 29 5 M4
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
20A 120 100 50 130 151 60 115 Φ4.0 6 50 28 10 3 25 M4
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
50A 200 127 80 170 240 116 150 Φ6.0 9 70 50 20 31 46 M6
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
tolerance 土1 土1 土1 土1 ±1 土0 5 土0 5 土0 5 土0 5 土0 5 土0 5 土0 5 土0 5 土0 5 　

Applications:

Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc
