30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter
30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter
Specifications
Brand Name :
VIIP WeiAiPu
Model Number :
VIP3-31A-10
Certification :
CE ROHS Reach TUV
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2000 pcs within 10-15 days
Packaging Details :
33*33*18
Product name :
AC 3 PHASE EMI FILTERS
Rated current :
10A
Rated voltage :
110/250VAC
Type :
EMC Filter
Samples :
on stock
Delivery Time :
5-10 Days for samples
Input Impedance :
500VDC/100MOHM MIN
Frequency Range :
150 kHz to 30 GHz
Storage Temperature :
-40℃~+85℃
Item :
EMI filter
Operating Frequency :
50/60HZ
Nominal Center Frequency :
50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)
Dimensions :
Varies depending on model
Port :
Shenzhen
Termination Style :
Solder Pins
Rated Current :
Different
Weight :
290g-1000g
Insulation Resistance :
≥100MΩ
Rohs Compliant :
Yes
Humidity :
≤95%RH
Description

Industry Air Conditioner 3 Phase EMI Filter Low Pass Noise EMC Filter

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS, TUV

Specification:

Item 3 Phase EMI Filter
Model 3 Phase EMI Filter - VIP3 Series
Original of country China
Package Type Surface Mount
Nominal working Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 380V/440V
Current 10A
Working Temperature 40°C
Temperature 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 2250VDC
Line to Ground 2700VDC
110VAC/60HZ 1.4mA
MOQ 5pcs
Port Shenzhen
Leading Time 3~15 days

Physical Dimensions

30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter

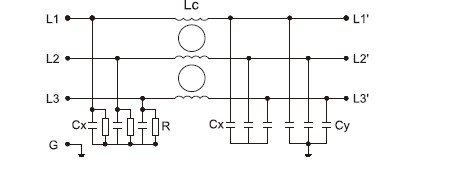

Electrical Schematic

30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter

Insertion loss table(In 50ohm system according to IEC/CISPR No.17)

30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter

Specifications:

30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter

30MHz 3 Phase EMI Filter Surface Mount Low Pass EMC Noise Filter

Applications:

such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment

Our Company

We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality

We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.

Free EMC rectification technical support and provide free test sample

Automation technology, scale production, excellent price

Good service, fast delivery!

Cooperate with the top scientific research laboratory

We have a professional R&D team
