Specifications
Brand Name :
Sihovision
Model Number :
SM117
Certification :
CE, FCC, RoHS
Place of Origin :
China(Mainland)
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram,Paypal
Delivery Time :
5
Packaging Details :
Packing size 28*25*15cm
Product name :
Box PC
CPU :
Intel i7-1255U
Operation System :
Windows 11
Memory :
8G DDR4
Storage :
128G SSD
Material :
Aluminum Alloy
Working voltage :
DC 12-24V
Warranty :
12months
Description

High Performance Industrial Box PC PCIe PCI Intel i7-1255U 6 x COM

Processing & Memory:

  • The Intel i7-1255U is a 12th gen mobile processor with hybrid architecture (P-cores and E-cores), providing good performance while being power-efficient
  • 16GB DDR4 is solid for most industrial applications

Connectivity & Expansion:

  • The mix of PCIe x8 and legacy PCI slot offers flexibility for various expansion cards
  • Multiple COM ports with RS-485 support are ideal for industrial communication protocols
  • Mini PCIe slots support cellular (4G) and Wi-Fi modules for remote connectivity

Industrial Features:

  • Wide voltage input (12-24V DC) is typical for industrial environments
  • Isolated GPIOs are crucial for interfacing with sensors and control systems safely
  • Windows 10/11 and Linux compatibility provides software flexibility



Specification

Model: SM117
PC
CPU Intel N97 (4 cores, 4 threads, 6MB cache, turbo frequency up to 3.6 GHz), Fanless
Intel i5-1035G1 (4 cores, 8 threads, 6MB cache, turbo frequency up to 3.6 GHz), Fanless
Intel i5-1235U (10 cores, 12 threads, 12MB cache, turbo frequency up to 4.4 GHz), Fanless
Intel i7-1255U (10 cores, 12 threads, 12MB cache, turbo frequency up to 4.7 GHz), Fanless
Memory Support 1*DDR4 3200 SODIMM, max 32GB
Display chip Integrated Intel® UHD Graphics /Intel® Iris® Xe Graphics eligible core graphics card
Display 1x VGA, 1 HDMI (Support synchronous and asynchronous dual display)
Storage 1x M.2 slot (SATA protocol), 1x 2.5-inch hard drive expansion slot
Display 1x VGA, 1 HDMI built-in header
Network N97: 2x Intel i210AT Gigabit Ethernet ports
1035G1/1235U/1255U: 1x Intel i210-AT, 1x i219-V Gigabit Ethernet port

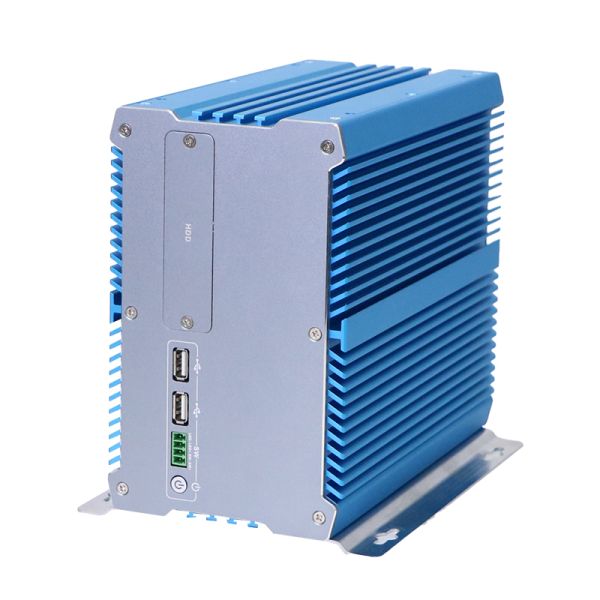

Front I/O 2x USB2.0, 1x power switch, 4P Phoenix terminal (remote switch), 1x 2.5-inch drawer-type hard drive expansion slot

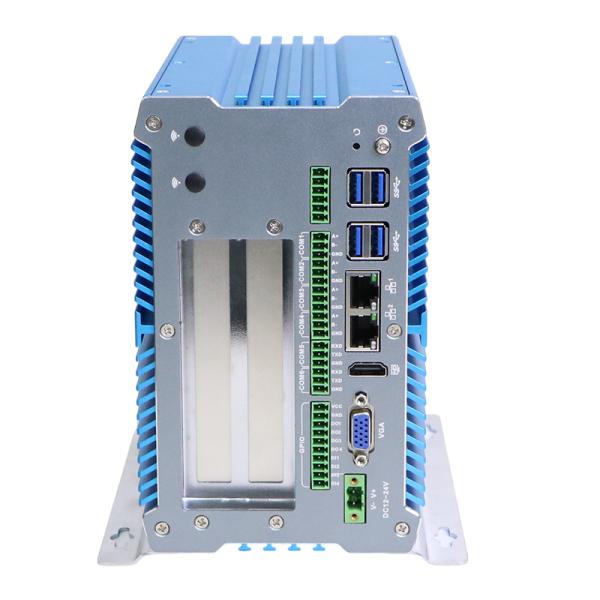

Rear I/O 4x USB 3.0 (3 on the N97, 1 USB 2.0), 2x LAN, 1x VGA, 1x HDMI, 1x 2-pin Phoenix power connector, 1x clear COM button, 6x COM ports (COM1 to COM4 is 485 mode, COM5 to COM6 is 232 mode), 10-pin Phoenix connector with 4 input and 4 output GPIO (with optocoupler isolation, supports 9-24V wide voltage range), 6-pin Phoenix connector (customizable pins)
Expansion port Supports 1x M.2 2280 M-key slot (SATA protocol)
Supports 1x Mini PCIE slot (supports 3G/4G, Core (supports PCIE and USB signals, N97 only USB signals), with a SIM card holder
Supports 1x Mini PCIE slot (supports Wi-Fi/Bluetooth, supports PCIE and USB signals)
Optional interfaces (not included in standard shipment): audio jack, expandable 4-input 4-output GPIO
Expansion slots 1 PCIE X8 slot (N97 1X, 1035G1/1235U/1255U 4X) + 1 PCI slot (32-bit)
BIOS AMI EFI BIOS
WDT Support hardware reset (256 level, 0-255 sec)
Operation System Support Windows 10/11, Linux, Ubuntu, Debian etc.
Other Power on, scheduled startup, network wake-up, PXE boot, watchdog (0-255 levels)
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12-24V
Power consumption ≤30W
Enclosure
Material Aluminum Alloy
Color Blue, color can be customized for bulk orders.
Operating Environment
Temperature Range operating: -10 to 50°C, storage: -10 to 60°C
Relative humidity 0%~95% , non-condensing
Packing Details
Net weight 4kg
Gross weight 5kg
Product Dimension 216 * 185 * 115 mm
Packing size 28*25*15cm
Accessories Power adapter, Power plug, Wall mount bracket, user manual, warranty card
Other
Mounting (options) Embedded mount
wall mounting brackets (optional)
Warranty 3 years warranty


Package


Certifications


OEM & ODM



About Shinho Electronic

Application


Typical Applications:


Industrial automation and control systems

Edge computing applications

Digital signage and kiosk systems

Transportation systems

Manufacturing equipment integration
