Intel I7-7500U Dual Core Industrial Micro PC 6 USB 2 Ethernet Port 2 COM RS232
Intel I7-7500U Dual Core Industrial Micro PC 6 USB 2 Ethernet Port 2 COM RS232
Intel I7-7500U Dual Core Industrial Micro PC 6 USB 2 Ethernet Port 2 COM RS232
Intel I7-7500U Dual Core Industrial Micro PC 6 USB 2 Ethernet Port 2 COM RS232
Intel I7-7500U Dual Core Industrial Micro PC 6 USB 2 Ethernet Port 2 COM RS232
Intel I7-7500U Dual Core Industrial Micro PC 6 USB 2 Ethernet Port 2 COM RS232
Specifications
Brand Name :
Shinho
Model Number :
SM180
Certification :
CE, ROHS, FCC
Place of Origin :
Shenzhen , China
MOQ :
1 Piece
Price :
negotiable
Payment Terms :
T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram
Name :
Mini industrial PC
CPU :
Intel i7-7500u Dual Core 2.7Ghz
RAM :
4GB DDR4
Hard disk :
64GB SSD
Material :
Aluminum
Front I/O :
4x USB, 2x COM RS232
Rear I/O :
2x USB, 2x Ethernet port,1xHDMI, 1xDP, 1xDC, 1xAudio
OS :
Win7/10, Linux
Description

Intel I7-7500U Dual Core Mini Industrial PC 6 USB 2 Ethernet Port 2 COM RS232

Features

  • CPU option: i3-6100U, i5-6200U, i7-7500U

  • RAM 4GB, hard disk 64GB (can upgrade)

  • Support MAX DDR4 1866/2133 16GB

  • Support WIFI/3G/4G

  • Support 4*USB 3.0.

  • Compatible Windows 7/8/10, Linux.

  • Full Aluminum alloy enclosure, fanless design

Specification

Model: SM180

PC

CPU

Intel® Core i7-7500U, dual core, 2.7GHz.

CPU optional

Intel® Core i5-6200U, dual core, 2.3GHz.

CPU optional

Intel® Core i3-6100U, dual core, 2.3GHz.

RAM

4GB DDR4 (8GB, 16GB optional)

Hard Drive Capacity

64GB SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Display Chip

Integrated Intel HD Graphics 520 card

Audio

Integrated Realtek ALC662 6 sound channel

I/O Interface

4×USB 3.0, 2x USB 2.0, 1x HDMI, 1xDP, 1x Power switch, 1x 2 in 1 Audio, 1x DC 12V port

2x COM, 1x Audio, 2x RJ45 1000M Lan

Network

2x Realtek 8111E 10/100/1000M

BIOS

64Mb SPI FALSH

WDT

Support hardware reset (256 level, 0-255 sec)

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian etc.

Power Supply

External Power Supply

AC 100 - 240V

Working voltage

DC 12V

Power consumption

≤40W

Enclosure

Material

Aluminum Alloy

Color

Black, color can be customized for bulk orders.

Operating Environment

Temperature Range

operating: -10 to 50°C, storage: -10 to 60°C

Relative humidity

0%~95% , non-condensing

Packing Details

Net weight

1.4kg

Gross weight

2.5kg

Product Dimension

17.89*12.66*5.55cm

Packing size

28*25*8cm

Accessories

Power adapter, open frame kits, user manual, warranty card

Other

Mounting (options)

open frame

wall mounting brackets (optional)

Warranty

1 year warranty

Applications

Self-service kiosk

telecomommunication

Industrial automation equipment

Factory automation

machine control

Food processing control

CNC cutting machine

vending machine

To replace traditional office computer

Pictures

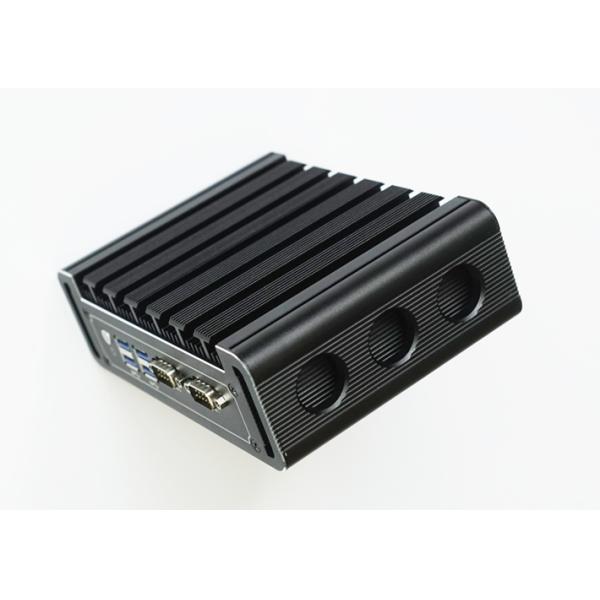

Intel I7-7500U Dual Core Industrial Micro PC 6 USB 2 Ethernet Port 2 COM RS232

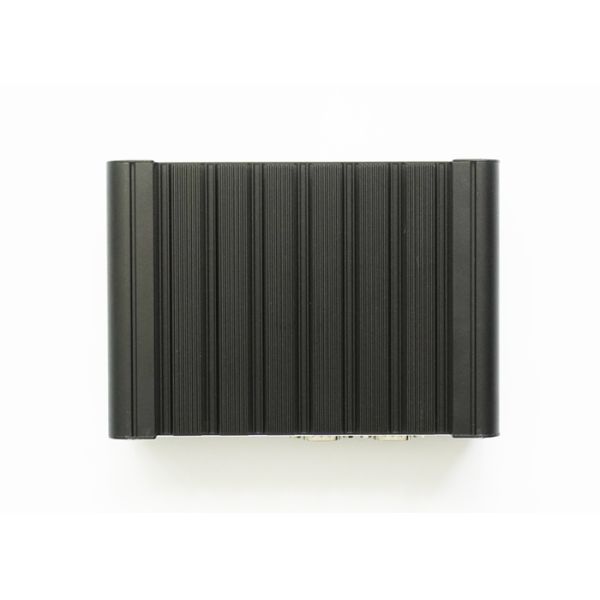

Intel I7-7500U Dual Core Industrial Micro PC 6 USB 2 Ethernet Port 2 COM RS232
