PCIE Fanless Industrial Mini Pc Intel I5 I7 GPIO LPT 6 COM 2 Lans 8 USB Box
PCIE Fanless Industrial Mini Pc Intel I5 I7 GPIO LPT 6 COM 2 Lans 8 USB Box
PCIE Fanless Industrial Mini Pc Intel I5 I7 GPIO LPT 6 COM 2 Lans 8 USB Box
PCIE Fanless Industrial Mini Pc Intel I5 I7 GPIO LPT 6 COM 2 Lans 8 USB Box
PCIE Fanless Industrial Mini Pc Intel I5 I7 GPIO LPT 6 COM 2 Lans 8 USB Box
PCIE Fanless Industrial Mini Pc Intel I5 I7 GPIO LPT 6 COM 2 Lans 8 USB Box
PCIE Fanless Industrial Mini Pc Intel I5 I7 GPIO LPT 6 COM 2 Lans 8 USB Box
PCIE Fanless Industrial Mini Pc Intel I5 I7 GPIO LPT 6 COM 2 Lans 8 USB Box
Specifications
Brand Name :
Sihovision
Model Number :
SMC1
Certification :
CE, FCC, RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 Piece
Price :
negotiable
Payment Terms :
T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram
Name :
Industrial Mini Pc
CPU :
Intel i3-6157U
BIOS :
American Megatrends Inc. 5.6.5
Memory Capacity :
2 x SO-DIMM DDR4
Storage :
1*MSATA/M.2, 1*SATA3.0
Dispaly Port :
1*VGA, 1*HDMI
Expand :
2*mini PCIE
Functions :
Watchdog, AWAL, RTC, WOL(ATX mode)
Description

Fanless Industrial Mini Pc Intel i5 i7 GPIO LPT 6 COM 2 Lans 8 USB Box Pc

Quick Details


1. Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect.
2. Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others.
3. Entertainment: support blu ray 1080P and 4k video play, XBMC and others.


Feature


Auto Power On for building scheduled tasks and events on the Mini PC.
PXE for assembling software on the Mini PC from a network.
WOL for awakening the Mini PC remotely from a LAN port.
RTC(Real Time Clock) provides an accurate date and time, in addition toallowing a computer to regulate the timing and speed of all its functions.


Operating


LPT Interface: The Rugged Mini PC is with a LPT(Line Print Terminal) for a parallelport connection to printers, scanners, video cameras, or other devices.

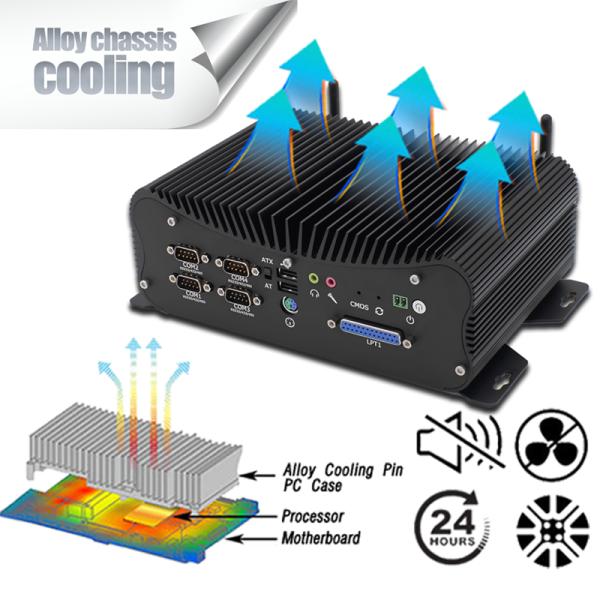

9-36V Wide Voltage Input: Zero maintenance requirements,7*24 hour working, strong alloy case,9 to 36vwide voltage power input functions make the fanless PC most suitable for dustyand industrial environments.


Specification
Model: SMC1
PC
CPU Intel i3-6157U

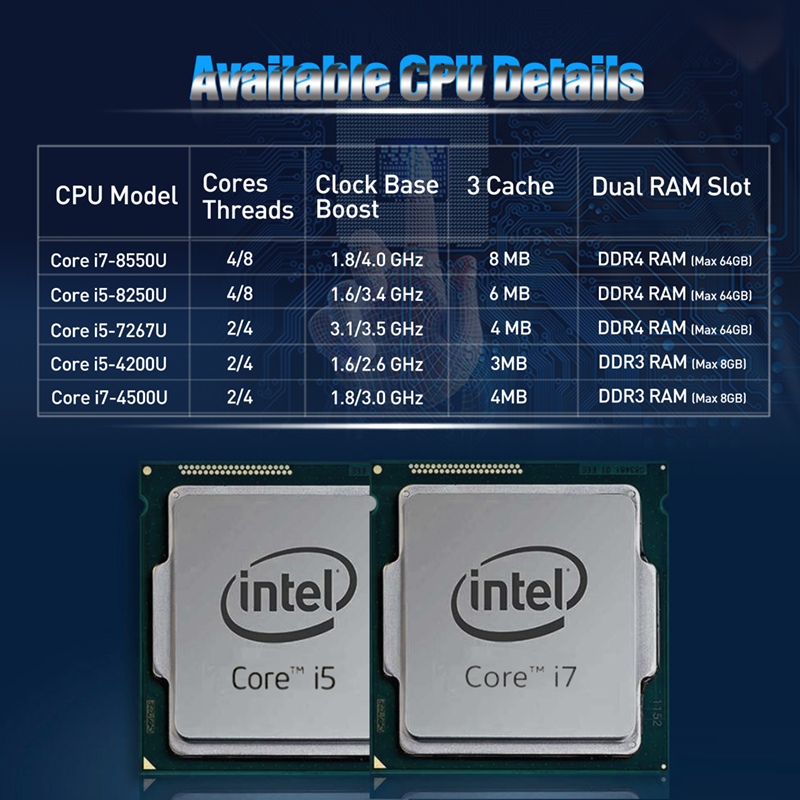

Optional Intel i3-7167U, i5-6360U, i5-7267U, i5-7287U, i5-8250U, i5-8365U, i7-7500U, i7-8559U
Memory 2*SO-DIMM DDR4 Slot, 4GB DDR4 (8G 16GB 32GB Optional)
Storage 1*MSATA/M.2, 1*SATA3.0 slot, 64GB SSD (128G 256G 512G Optional)
BIOS American Megatrends Inc. 5.6.5
Operation System Windows 8/10, WES 10, LINUX
PXE YES
Network Support Intel i210/i211 Gigabit Network Connection
Video Intel HD Graphics
Audio Realtek ALC662 @ Intel Bay Trail SoC - HD Audio Controller
Mini PCIE 1*mini PCIE-half port, 1*mini PCIE-full port
Antenna 2*inner RF cables and 2*external antennas
Functions Watchdog, AWAL, RTC, WOL(ATX mode)

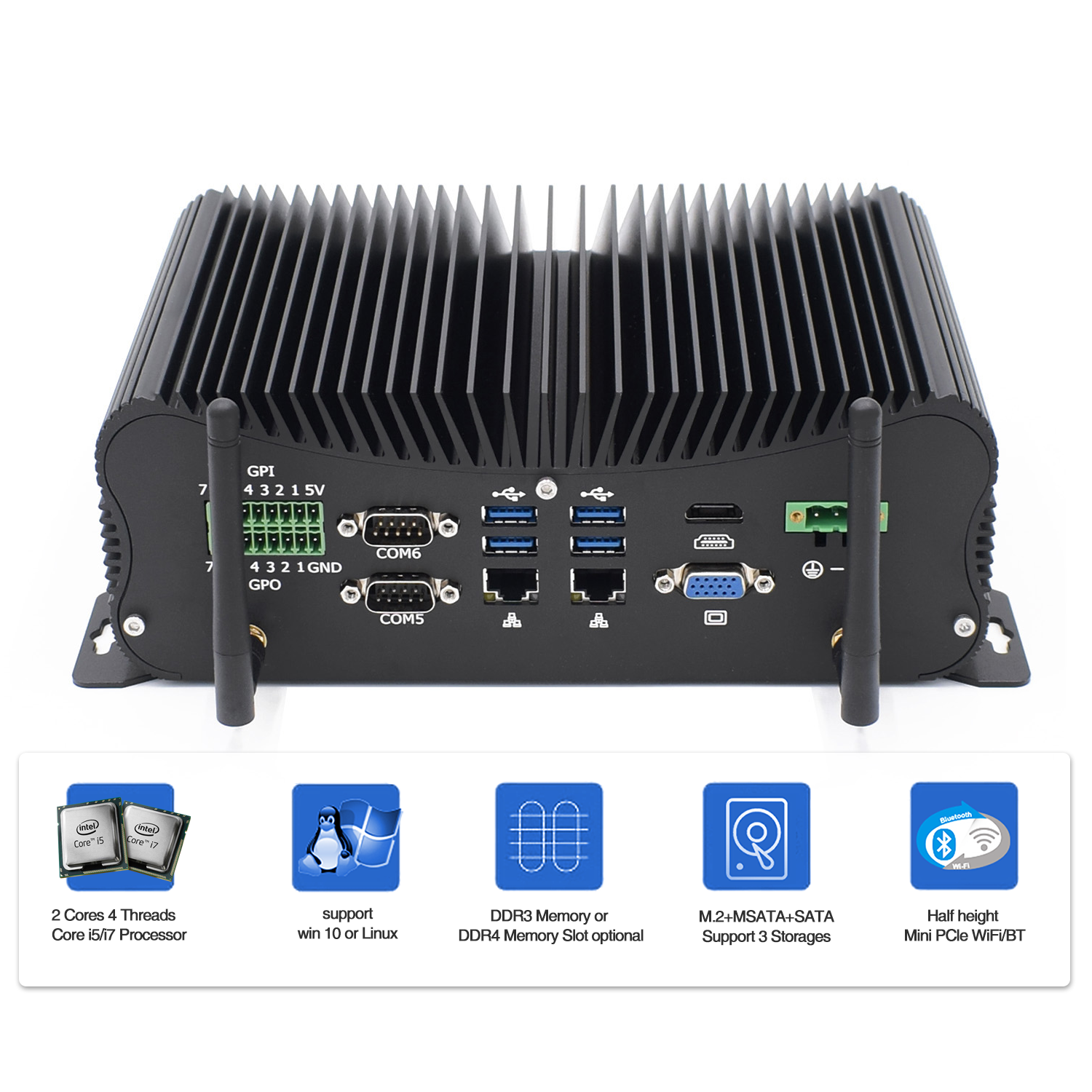

I/O Interfaces
Switch 1*Power On/Off Switch
Power 1*3pin phoenix terminal power block DC In
Button 1*ATX/AT quick switch
USB 4*USB3.0, 4*USB2.0 (2xUSB2.0 inside)
PS/2 1*PS/2
Display 1*VGA, 1*HDMI
LAN 2*RJ45 GBE LAN
COM 6*DB9 COM, COM1~4 can change to RS232/422/485 from BIOS
SIM 1*embedded SIM card slot onboard
GPIO 1*GPIO
LPT 1*LPT
Audio 1*MIC, 1*SPK
Others 1*Reset, 1*CMOS clear button, 1*2Pin phoenix terminal power supply input
Power Supply
External Power Supply AC 100 - 240V 50-60Hz
Working voltage DC +9V to +36V DC wide voltage
Power consumption 15W/28W
Enclosure
Material Aluminum alloy
Color Black, Silver, others Optional
Operating Environment
Working temperature -20°C to 60°C
Storage temperature -30°C to 70°C
Relative humidity 10-90% (npn-condensing)
Packing Details
Net weight 1.3 kg
Gross weight 3.5 kg
Product dimension 150*83*224mm
Other
Mounting 4 mounting holes on case
Warranty 1 year warranty

Pictures
PCIE Fanless Industrial Mini Pc Intel I5 I7 GPIO LPT 6 COM 2 Lans 8 USB Box

PCIE Fanless Industrial Mini Pc Intel I5 I7 GPIO LPT 6 COM 2 Lans 8 USB Box

PCIE Fanless Industrial Mini Pc Intel I5 I7 GPIO LPT 6 COM 2 Lans 8 USB Box

FAQ

Q: Can I get some samples?
A: We are honored to offer you samples for quality check, MOQ is 1 set, welcome to order via the link directly.We also provide free OEM service for your sample order, just feel free to contact our Sales here.

Q: How does your factory do related quality control?
A: Quality is top priority. We attach great importance to quality control from the very begining of manufacturing and 1 Years Wareanty.

Q: How to solve the product problem?
A: Welcome to contact our Sales about any problems, they will provide nice service to each customer directly.
