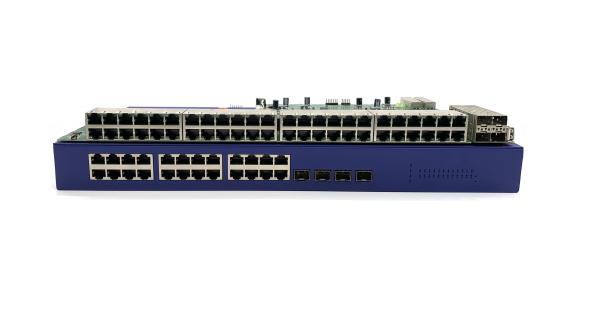

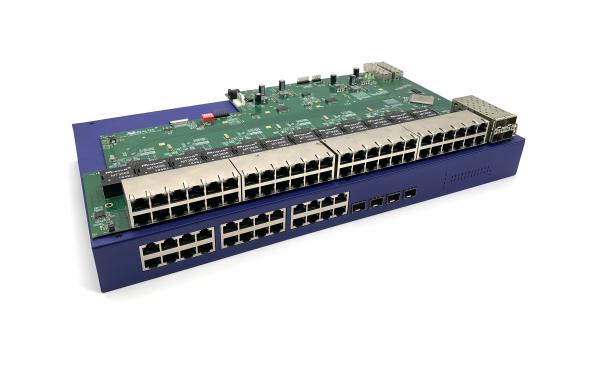

96W 206Gbps Management Ethernet Switch SFP+ L3 MSG9448 CLI
96W 206Gbps Management Ethernet Switch SFP+ L3 MSG9448 CLI
96W 206Gbps Management Ethernet Switch SFP+ L3 MSG9448 CLI
96W 206Gbps Management Ethernet Switch SFP+ L3 MSG9448 CLI
96W 206Gbps Management Ethernet Switch SFP+ L3 MSG9448 CLI
96W 206Gbps Management Ethernet Switch SFP+ L3 MSG9448 CLI
Specifications
Brand Name :
MESTECHS
Model Number :
MSG9448
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200sets/week
Delivery Time :
45 work days
Packaging Details :
Common package
Power :
48x 2.5Gigabit Ethernet
Optical Port :
6x10G Port
Power-Input :
1*AC 100~240V 50/ 60Hz
Power-Consumption :
30W
Description

MSG9448:48 BaseTX 4 SFP+L3 Management Ethernet Switch

Our MSG9448 is an industrial Layer 3 network management switch, with maximium of 48 gigiabit Ethernet ports and 4 10 gigabit SFP+ optical ports and optional to XGT Ethernet ports. It supports Layer 3 static routing. The total switching capacity is as higher as 206Gbps, can handle a large number of data forwarding.

Product Highlight :

  • Flexible Port Configuration :
  • 48 GE with 4 XGT/SFP+ Combo
  • Support L3 Management
  • Standard 19” 1U rack mount design
  • Support CLI and Web Management
  • Add-on Features :
  • POE/PSE, Fan Control, GPIO
  • Tailor-made or Turnkey solution available

High Density Design

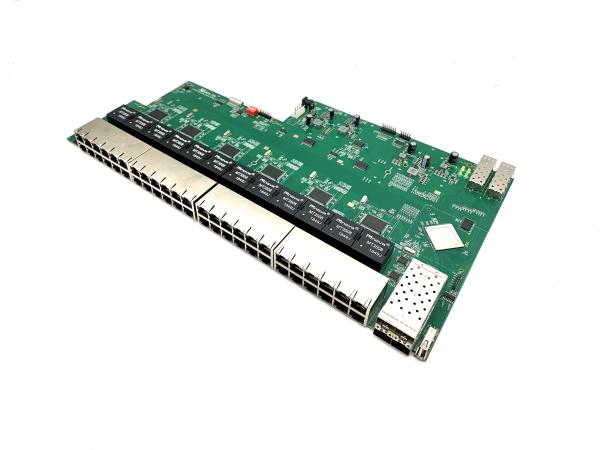

The use of Realtek RTL9311 gigabit Ethernet switch chipset allows higher integration and more flexible port configuration design. It supports total 52 ports in a 19” 1U rack mount design.

User Friendly Web Management

The MSG9448 provides an user friendly web management system. The L3 management features can be easy accessed and configured through an Ethernet port.

Data Input and Output of Alarm System

There are two sets of data output, which can be set to alarm the output of switch power loss, port loss and port POE loss. There are two sets of data input, which can be used to detect the alarm signals of external alarms such as infrared detectors. Data inputs and outputs can be set on the web administration page.

Excellent Protection Ability, Able to Adapt to Harsh Environment

The use of industrial grade chipset and components allow the device working at temperature -40℃ to 75℃ without data loss. Lightning protection and electrostatic protection designs to meet the EMI and EMS international standards.

Hardware Specifications

Item Detail
Ethernet Port 48 x 1000 Base-T RJ45
Optical Port

4 x SFP+

(can be modified to 4 x 10G Base-X RJ45 or combo)
Control Port 1 x RJ45-R232 Serial Port (115200,8,N,1)
OOB Port 1 x 10/100 Base-TX RJ45 (only to web management)
Init Key

Press to Restart

Press and Hold >5s to Default Recovery
Power AC 100~240V 50/60Hz
Power Consumption 96W

Data (Alarm)

Input / Output

2 x Digital Input for exteral alarm

2 x Digital Output for

the switch power failure

cable link down & PoE link off

Signal Type : normal-open or normal-closed from relay
Standard

IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3Z,

IEEE802.3X,IEEE802.1Q,IEEE802.1p,

IEEE802.3ad,IEEE802.1D,IEEE802.1X
Exchange Capacity 206Gbps / non-blocking
Package Conversion Rate 128.4 Mpps@64bytes
Exchange Mode Store-and-Forward
Package Data Cache 16Mbit
MAC Address List 32k
Rectangular Layout 12k bytes
EMI FCC Part 15, CISPR(EN55022) Class A
EMS

Surge level-4 execute : IEC61000-4-5

ESD level-4 execute : IEC61000-4-2

RS level-4 execute :IEC61000-4-3

EFT level-4 execute : IEC61000-4-4

CS level-3 execute : IEC61000-4-6

M/S level-5 execute: IEC61000-4-8
Operating Temperature -40-75℃
Storage Temperature -40-85℃
Size (L×W×H) 440mm × 227mm × 45mm
Weight 4.5kg
Identification CE ,FCC,ROHS

Software specifications

  • Support 802.1p COS/DSCP/TOS priority
  • Support IGMP Snooping
  • Support MLD-snooping
  • Multicast VLAN Registration(MVR)
  • Supports IP , MAC, port, VLAN binding combinations
  • Support IPV4 static route setup
  • Support static ARP Add,delete,burn-in time sutup/check
  • Support group-brocasting PIM,IGMPV1/V2/V3, MLD(IPV4)
  • Support DHCP client
  • Support relay reperter , DHCP snooping
  • Support duplex trandfer check mechanism

Product Dimensions

96W 206Gbps Management Ethernet Switch SFP+ L3 MSG9448 CLI

96W 206Gbps Management Ethernet Switch SFP+ L3 MSG9448 CLI

Production Packaging

Item Detail
Switch 1 pcs
Suspension Loop 2 pcs
AC Power Line 1 pcs
Package Size 520*320*125mm

Order Information

Product Description Order Code

48 + 4 SFP+ L3 management Ethernet switch MSG9448

48 ports L3 management Ethernet switch MSG9048
