Specifications
Brand Name :
MESTECHS
Place of Origin :
CHINA
Model Number :
RTL9301
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200sets/week
Delivery Time :
150-180 work days
Packaging Details :
Common package
Material :
copper Fiber
networking :
Gigbit base-T 10G SFP+
Ports :
28 or 54 port
management :
3 layer managed routing
service :
hardware and software,layout
key :
turn-key
Description

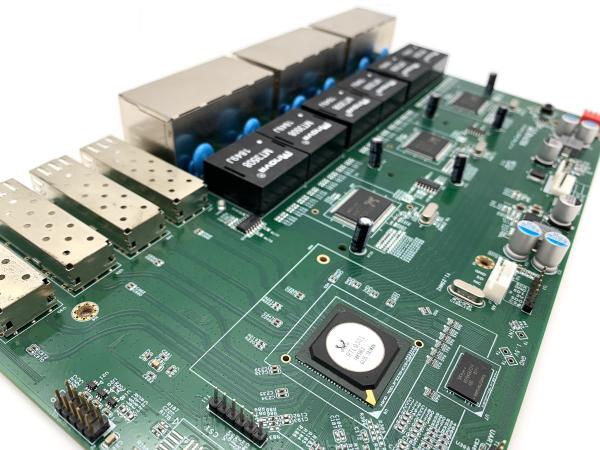

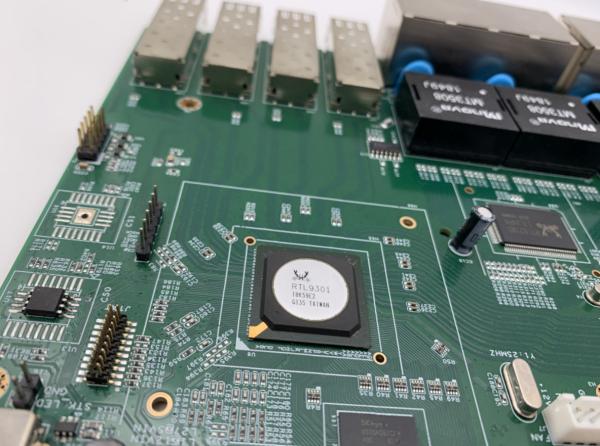

RTL9301 RTL9311 L3 Management 10G Ethernet switch

24+4 SFP+/48+6 SFP+ L3 Management 10G Ethernet switch Turn-key custom services

Qualified as the sole agency of IDH to the well-known semiconductor Realtek Ethernet switch, providing RTL93xx series products customization development services,Providing CKD and SKD services to 2.5G/5G/10G L3 managed Ethernet switch；

8-12 port 2.5G,4-12 port 10G Combo Base-R and SPF+

P/N RTL9301 RTL9311
MAC 24 port Gig+4 port 10G 48 port Gig+6 port 10G
Switch capacity 128Gbps 216Gbps
10G ports 4 6
2.5G Base-T No No
Typical product form 24 Gig Base-T+4 10G SFP+ 48 Gig Base-T +6 10G SFP+
CPU 800Mhz MIPS 1Ghz MIPS
size BGA533,23x23(mm) BGA673 ,27x27(mm)
competitor BCM53346 2xBCM56150
DEMO MSG9424P MSG9448P

Advantage compare to Broadcom and Marvell:

* Flexible port configration from 1G to 10G；

* Lower power consumption and Lower cost in the same grade；

* Lite L3 to full managed；

RTL9301 compare to BCM53346

RTL9301 BCM53346
MAC chip number 1 1
Blocking non-blocking non-blocking
Port 24+4*10G 24+4*10G
CPU 800Mhz MIPS 400Mhz ARM
MAC 16K 16K
buffer 12Mb 12Mb
L3 Yes(6K) Yes(512)
ACL 2K 1K
Qos SP+WFQ+WRR SP+DRR+WRR
VLAN 4K 4k
l2 multicast 1k 512
multicast routing 512 64

RTL9311 compare to BCM56150

RTL9311 2xBCM56150
MAC chip number 1 2
Blocking non-blocking blocking
Port 48+4*10G 48+4*10G
CPU Dual 1Ghz MIPS 1Ghz ARM
MAC 32K 16K
buffer 16Mb 12Mb
L3 Yes(12K) Yes(1K)
ACL 4K 2K
Qos SP+WFQ+WRR SP+DRR+WRR
VLAN 4K 4k
l2 multicast 4k 1k
multicast routing 2k 512
SDN 32K No support

Layer 3 10G switch current Customized service

Hardware Develop

Standard 24+4 /48+4/48+6/BASE-R 10G/BASE-R 2.5G/SFP+ 10G
General Peripherals management POE(PSE),Fan control,Managed SFP+,DI/DO
Specific function Cascading stack,special customize

Software Develop

 Basic function Function list (below list)
OEM customize logo/web color/model name etc
s/w customize DHCP server/stacking / clustering/RIP/OSPF/POE watch-dog
Advance s/w develop Dynamic Routing Protocol


Basic Function list

MAC Address Table
Jumbo Frame
Flow Control
Spanning Tree
Links Converge
VLAN
Voice VLABN
VLAN Stack
GVRP
L2 Multicast
IGMP Snooping
MLD Snooping
DHCP Client, DHCP snooping,
QOS
Grade of Service(CoS mapping, based on Ports/vlan Priority/DSCP/ToS)
Speed Control(Based on port access direction)
ACL
Authentication Function
Safety Protection(Port Security/Port Isolation/Storm Suppression)
Attack Defense(CPU Defend/DOS Defend/DHCP Snooping/IP Bonding)
Ipv6 Manage Connection
System Management
LLDP
System Diagnostic Maintenance
(Port Mirroring/Log Record/System Utilization/SFP(1G/10G) DDM)
ERPS
Static Routing
Active Ethernet(PoE), PoE Power Supply Management, PoE Device Watch-Dog
Flexible Customization Service

L3 Management 10G Ethernet Switch Turn Key Custom Services 28 / 54 Port

Special Turn-key Service
Turn-key service Original design file SCH file(DSN/PDF), customized board PCB file
Technical support

Hardware and software function introduce

Demo user manual

Full Chip-level engineer support
Prototypes and L/T During 60 days and offer 3pcs prototype samples
Custom Design file SCH/PCB/Gerber/BOM/Program bin file
Production support chip supply,Software burning,Demo testing
