Specifications
Brand Name :
HONPHO
Model Number :
TS130C
Certification :
ISO9001:2015/GB/T 19001-2016
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Packaging Details :
Plastic box
Product name :
Electro Optical Camera
Dimension :
≤Φ130mm×180.8mm
Weight :
≤1.3Kg
Power consumption :
Average:≤18W, Peak: ≤45W
Working temperature :
-20℃～60℃
Voltage :
12V
Description

TS130C Three Axis Payload EO Infrared Thermal Imaging Laser Rangefinder Drone UAV Camera HD 1080p



TS130C is three- axis gyro stabilized gimbal platform, support 360° continuous rotation, Built
in 30X HD zoom camera and longwave infrared module(LWIR uncooled) and laser rangefinder,
mainly used in airborne imaging detection, recognition, tracking and ranging and positioning. etc,
meet the needs of mapping, surveillance, reconnaissance and other application scenarios.
TS130C with light weight, mature and reliable technology, and can be assembled in various
types of UAV and other aviation carriers, it can also be assembled on ships and vehicles to meet
the needs of sea and air.


Functions


a) Provide the HD visible and long wave infrared video and image for detection area

b) High precision visual axis stabilization function

c) With the capability of detection and recognition for ground target

d) Support search, tracking, lock, guiding, etc working ways

e) With character overlay, custom and display functions;

f) With target positioning functions

g) With laser ranging function

h) With self - check and fault diagnosis function

i) UDP control and video (UDP/RTSP) transmission by Ethernet

j) IR Pseudo-color temperature measurement

k) Built in video and image storage


Specifications


EO sensor Wavelength 0.4μm～0.9μm
Resolution 1920x1080
Focal length 5.1mm～153mm(30X)
FOV 55.3°～2.6°
Video output HD-SDI(1080P 30Hz)
Distance

PEOPLE:Detection 6.6km;Recognition 1.6km

VEHICLE:Detection 15.2km;Recognition 9.9km
IR sensor IR Type LWIR(un-cooled)
Wavelength 8～14μm
Resolution 640x512
Pixel 12um
NETD 50mk
Focus length 35mm/F1.0
FOV 12.5º×10º
Distance PEOPLE:Detection 1km; Recognition 0.5km
VEHICLE:Detection 6km; Recognition 2.9km
LRF Wavelength 1535nm

Ranging Range

 50m~3km

Range Accuracy

±1m

Ranging Frequency

5Hz
Servo System Rotating limits 360º continuous Pan, Pitch: -110° ~+10 º
Angular accuracy: ≤2mrad
Stablization accuracy ≤100μrad(1σ)(2°/1Hz,1°/2Hz Swing)
Max.angular speed ≥50°/s
Max. angular acceleration: ≥90°/S²
Tracking Functions Motion speed: 30pixel/frame
Target imaging contrast: 8%
Target imaging pixel(Mini) 4x3 pixels
Support Anti -occlusion without loss of function

In the case of roll, rapid reduction or amplification of the target image, it keeps tracking ability without slip and without loss

It has the ability to automatically recapture the target after the short-time occlusion is removed in cloud and ground scenes.
Interface Communication
interface		 RS422 x1
Video output HD-SDI x1

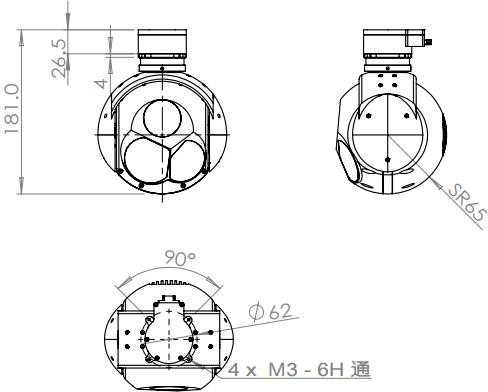

Mechanical Drawing
