Anti-Vibration Longrange Electro Optical Targeting System 1.25Kg
Anti-Vibration Longrange Electro Optical Targeting System 1.25Kg
Specifications
Brand Name :
HONPHO
Model Number :
TS01D
Certification :
ISO9001:2015/GB/T 19001-2016
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Supply Ability :
200pcs per Month
Packaging Details :
Air packing case
Product name :
Electro Optical Targeting System
Dimension :
≤Φ135mm×194mm
Weight :
≤1.15Kg
Voltage :
12V
Power consumption :
Average:≤15W, Peak: ≤30W
Working temperature :
-20~55°
Description

High Stabilization Accuracy Anti-Vibration Longrange Electro Optical Targeting System



TS01D supply anto scanning,Support target laser ranging,provide the real-time angular of line of light,angular speed and range information to the mission system,Support tracking, geographic tracking, automatic tracking and search tracking of the target


Functions


1. Provide the visible video and image for detection area

2. High precision visual axis stabilization function

3. With the capability of detection and recognition for ground target

4. Support search, tracking, lock, guiding, etc working ways

5. With character overlay, custom and display functions;

6. With self - check and fault diagnosis function


Specifications


EO sensor Wavelength 0.4μm～0.9μm
Resolution 1920x1080
Focal length 5.1mm～153mm(30X)
FOV 55.3°～2.6°
Video output HD-SDI(1080P 30Hz)
Distance PEOPLE:Detection 6.6km;Recognition 1.6km VEHICLE:Detection 15.2km;Recognition 9.9km
IR sensor IR Type LWIR(un-cooled)
Wavelength 8～14μm
Resolution 640x512
Pixel 12um
NETD 50mk
Focus length 35mm/F1.0
FOV 12.5º×10º
Distance PEOPLE:Detection 0.8km; Recognition 0.7km
VEHICLE:Detection 5km; Recognition 4.2km
Servo System Rotating limits 360º continuous Pan, Pitch: -110° ~+10 º
Angular accuracy: ≤2mrad
Stablization accuracy ≤100μrad(1σ)(2°/1Hz,1°/2Hz Swing)
Max.angular speed ≥50°/s
Max. angular acceleration: ≥90°/S
Laser rangefinder Wavelength 905nm/1535nm
Ranging Range 1.5km/3km
Range Accuracy 50~3m
Ranging Frequency 1Hz
Tracking Functions Motion speed: 30pixel/frame
Target imaging contrast: 8%
Target imaging pixel(Mini) 4x3 pixels
Support Anti -occlusion without loss of function
Interface Communication
interface		 RS422 x1(TTL Optional)
Video output HD-SDI x1

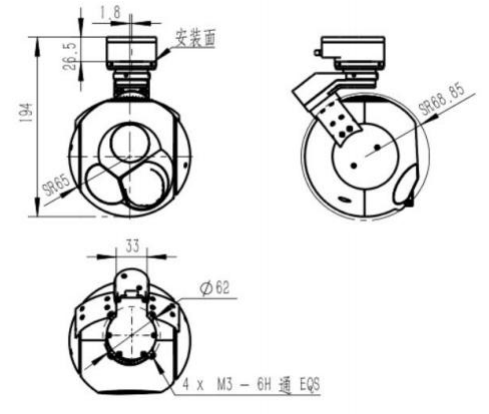

Mechanical Drawing



Company Profile


Chengdu HONPHO Technology Co., Ltd. was established in March 2018. It is a national high-tech enterprise focusing on R&D, intelligent manufacturing and service of high-end photoelectric system. HONPHO main product is spherical photoelectric payload systems, this payload wildly deployed in UAV,unmanned ships, umanned vehicle,helicopter and low speed fixed wing aricrafy. especially for reconnaissance and strike UAV and armed helicopter. HONPHO has nearly 5,000 square meters of space to meet the needs of R&D, production, operation and office. More than 100 employees, include 2 national senior experts, 3 doctors, 21 masters, 10 technical experts with senior titles and 4researchers are joined HONPHO. HONPHO won more than 10 prizes of national and national defense science and technology progress , and have over 20 intellectual property rights. We are committed to building HONPHO into a world-renowned photoelectric system high-tech enterprise



Certificate of HONPHO
