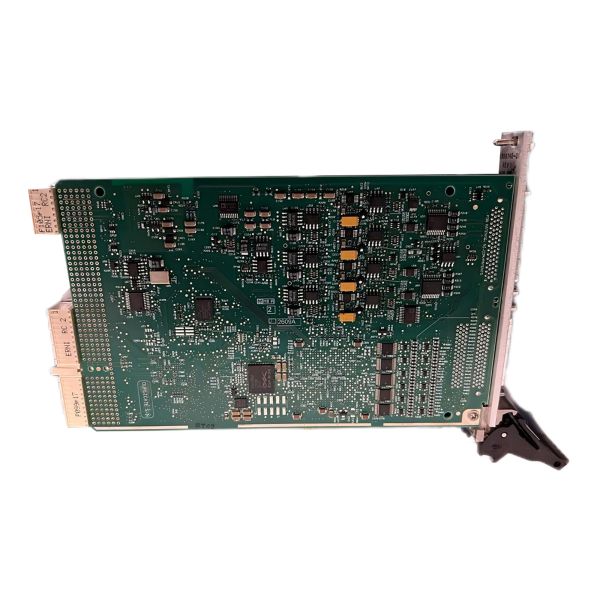

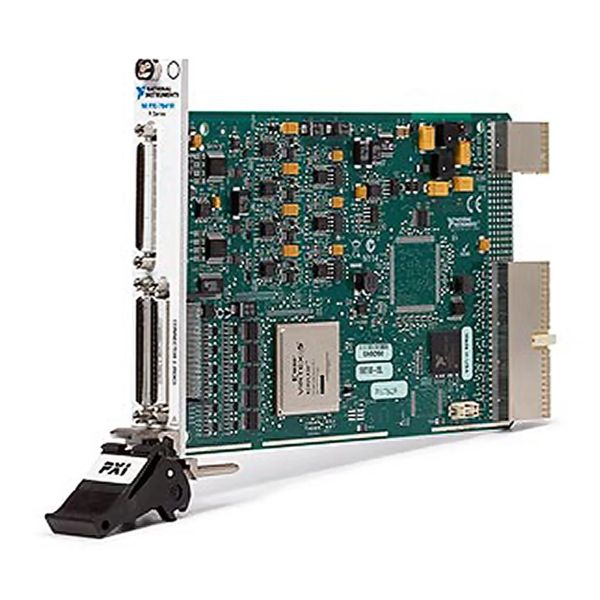

National Instruments PXI-7841 Multifunction Reconfigurable I/O Module with 8 Analog Input and 8 Analog Output Channels and 200 kS/s Sampling Rate
National Instruments PXI-7841 Multifunction Reconfigurable I/O Module with 8 Analog Input and 8 Analog Output Channels and 200 kS/s Sampling Rate
National Instruments PXI-7841 Multifunction Reconfigurable I/O Module with 8 Analog Input and 8 Analog Output Channels and 200 kS/s Sampling Rate
National Instruments PXI-7841 Multifunction Reconfigurable I/O Module with 8 Analog Input and 8 Analog Output Channels and 200 kS/s Sampling Rate
Specifications
Price :
$10,000/sets >=1 sets
Place of Origin :
China
MOQ :
one
Packaging Details :
standard packaging
Delivery Time :
Delivery time for minimum order quantity ≤ 30 days
Payment Terms :
T/T ‌L/C
Supply Ability :
100 units/day
Brand Name :
National Instruments
Model Number :
PXI-7841
warranty :
3 months
customized support :
OEM
place of origin :
American
brand name :
National Instruments
model number :
PXI-7841
Description

国家仪器 PXI-7841 PXI 多功能可配置 I/O 模块

PXI-7841(部件编号:780337-01)多功能可配置I/O模块由National Instruments制造.该设备配备了一个内置的Virtex-5 LX30 FPGA模块,增强了系统的性能和灵活性.该设备有8个模拟输入通道和8个模拟输出通道.每个通道最大可以以200 kS/s的速度运行.该设备使用DIFF,RSE和NRSE作为输入模式.每种模式都可以通过软件选择,并适用于所有通道.所有输入和输出通道都有16位的分辨率.该设备的转换时间为约4μs.NI PXI-7841的输入阻抗约为10 GΩ.这个等级与100pF并联.该型号进行直流耦合,最大工作电压在±12 V内.这适用于单模式和共模.

国家仪器PXI-7841多功能可重新配置I/O模块具有1 MHz的小信号带宽.对于大信号,带宽可增加至500 kHz.该设备有96个数字I/O线.该设备有三个68针的母I/O连接器.连接器是高密度VHDCI类型.

NI PXI 7841 多功能可重新配置 I/O 模块在通道之间具有 ±24 V 的最大工作电压.NI PXI-7841 满足电磁兼容标准.这些标准对于实验室使用,控制和测量至关重要.需要注意的一个重要事实是,该模块可以用非金属软刷轻松清洁.此外,该模块仅建议在室内使用.

参数 规格
最大采样率 200 kS/秒
总线连接器 PXI 混合
最大时钟速率 40 兆赫
双向数字通道 96
数字输入/输出逻辑电平 3.3 V,5 V
动态随机存取存储器 (DRAM) 0 MB
现场可编程门阵列 Virtex-5 LX30
模拟输入电压范围 -10 V 到 10 V
点对点数据流支持 不
模拟输入通道 8
模拟输出通道 8
