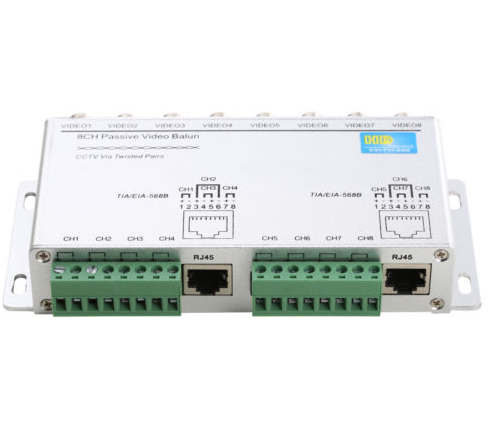

HD CVI AHD TVI Compatible 8CH Passive Video Balun Receiver Transmitter for CCTV Camera
HD CVI AHD TVI Compatible 8CH Passive Video Balun Receiver Transmitter for CCTV Camera
HD CVI AHD TVI Compatible 8CH Passive Video Balun Receiver Transmitter for CCTV Camera
HD CVI AHD TVI Compatible 8CH Passive Video Balun Receiver Transmitter for CCTV Camera
HD CVI AHD TVI Compatible 8CH Passive Video Balun Receiver Transmitter for CCTV Camera
HD CVI AHD TVI Compatible 8CH Passive Video Balun Receiver Transmitter for CCTV Camera
Specifications
Place of Origin :
Guangdong, China
Brand Name :
C-Power
Model Number :
CP-V1208D
Product Name :
CCTV Camera Video Balun
Application :
CCTV System
Type :
Video Transmission
Color :
Gray
Function :
Signal Transmission
Brand :
C-Power
Compatible Format :
HD CVI AHD TVI
Material :
ABS Engineering Plastic Housing
Packaging Details :
Standard
Port :
Shenzhen
Supply Ability :
888888 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$10.50/pieces 10-499 pieces
Description
Product Description

Introduction:

  • HD Video balun is to convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 8-core Cat-5 twisted pair wire.
  • It can simplify the wiring project and save wire use quantity.

Features:

  • Compatible with all HD-CVI,HD-TVI,HD-AHD
  • Up to 450m for 720P CVI Cameras
  • Up to 250m for 1080P CVI Cameras
  • Up to 250m for 720P/1080P TVI Cameras
  • Up to 320m for 720P AHD Cameras
  • Up to 250m for 1080P AHD Cameras
  • NTSC,PAL,and SECAM video formats
  • No power required
  • 60dB cross talk and noise immunity
  • Built-in transient suppression protection

Technical Specifications:

  • Frequency response: DC to 60Mhz
  • Attenuation: 0.5dB type
  • CMRR: 60dB
  • Surge protection: 4KV
  • ESD: 8KV
  • Impedance: BNC: 75ohms, RJ45: 100ohms
  • Working Temperature: -10℃ to +70℃
  • Storage Temperature: -30℃ to +70℃
  • Humidity: 0-95%
  • External dimension: 157mm*65mm*29mm / 6.18'' x 2.56'' x 1.14'' (excluding connectors)
  • Weight: 340g
  • Type of the required wire:
    • Unshielded Cat-5 or above twisted pair wire(please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.)
    • Characteristic impedance: 100Ω±20Ω
    • DC loop resistance: 18Ω/100m
    • Differential capacitance:62pf (Maximum)

    Connection method:
    • Clamp modular plugs for a Cat-5 unshield twisted pair wire according to the connection order of TIA-EIA-568B, connect the clamped modular plugs to the RJ45 socket,connect the coax to the BNC.
    • HD CVI AHD TVI Compatible 8CH Passive Video Balun Receiver Transmitter for CCTV Camera
Packaging & Shipping

HD CVI AHD TVI Compatible 8CH Passive Video Balun Receiver Transmitter for CCTV Camera

Our Services

HD CVI AHD TVI Compatible 8CH Passive Video Balun Receiver Transmitter for CCTV Camera

1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation 4,High manufacturing capacity

5.OEM/ODM
