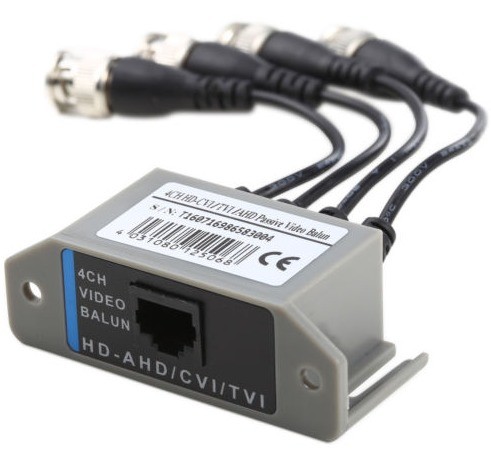

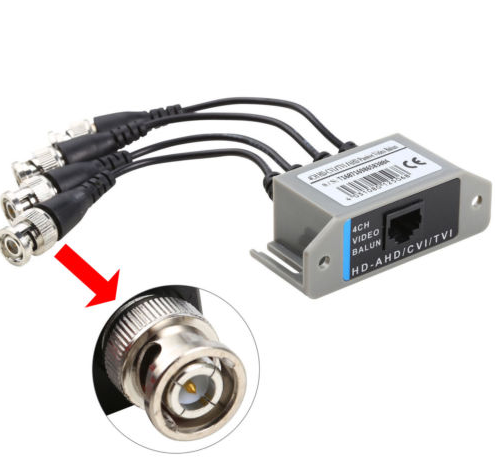

- 4CH HD Passive Video Balun Transceiver BNC To UTP RJ45 CCTV Via Twisted Pairs
- 4CH HD Passive Video Balun Transceiver BNC To UTP RJ45 CCTV Via Twisted Pairs
- 4CH HD Passive Video Balun Transceiver BNC To UTP RJ45 CCTV Via Twisted Pairs
- 4CH HD Passive Video Balun Transceiver BNC To UTP RJ45 CCTV Via Twisted Pairs
- 4CH HD Passive Video Balun Transceiver BNC To UTP RJ45 CCTV Via Twisted Pairs
- 4CH HD Passive Video Balun Transceiver BNC To UTP RJ45 CCTV Via Twisted Pairs
Specifications
Place of Origin :
Guangdong, China
Brand Name :
C-Power
Model Number :
CP-V400
Color :
Grey
Material :
Copper
Condition :
Brand-new
Application :
CCTV camera
Description :
4CH HD Passive Video Balun Transceiver
Packaging Details :
standard package
Port :
Shenzhen
Supply Ability :
8888888 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$5.00/pieces 10-499 pieces
Description
Product Description

Introduction:

  • HD Video balun is to convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 8-core Cat-5 twisted pair wire.
  • It can simplify the wiring project and save wire use quantity.

Features:

  • Compatible with all HD-CVI,HD-TVI,HD-AHD
  • Up to 450m for 720P CVI cameras
  • Up to 250m for 1080P CVI cameras
  • Up to 250m for 720P/1080P TVI cameras
  • Up to 320m for 720P AHD camera
  • Up to 250m for 1080P AHD camera
  • NTSC,PAL,and SECAM video formats
  • No power required
  • 60dB cross talk and noise immunity
  • Built-in transient suppression protection
Technical specifications:
  • Frequency response: DC to 60MHZ
  • Attenuation: 0.5dB type
  • CMRR (Common Mode Rejection Ratio): 60dB
  • Surge protection: 4KV
  • ESD: 8KV
  • Impedance: BNC: 75Ω; RJ45: 100Ω
  • Working temperature: -10 degree-70 degree
  • Storage temperature: -30 degree-70 degree
  • Applicable to NTSC, PAL, SECAM
  • External dimension: 75x35x5mm / 2.95'' x 1.38'' x 0.98'' (excluding BNC)
  • Weight: 140g

  • Type of the required wire:

    • Unshielded Cat-5 or above twisted pair wire (Please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.)
    • Characteristic impedance: 100Ω± 20Ω
    • DC loop resistance: 18Ω/100m
    • Differential capacitance: 62pf/m (Maximum)
  • - 4CH HD Passive Video Balun Transceiver BNC To UTP RJ45 CCTV Via Twisted Pairs
Packaging & Shipping

- 4CH HD Passive Video Balun Transceiver BNC To UTP RJ45 CCTV Via Twisted Pairs

Our Services

- 4CH HD Passive Video Balun Transceiver BNC To UTP RJ45 CCTV Via Twisted Pairs

1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation 4,High manufacturing capacity

5.OEM/ODM

Company Information

- 4CH HD Passive Video Balun Transceiver BNC To UTP RJ45 CCTV Via Twisted Pairs- 4CH HD Passive Video Balun Transceiver BNC To UTP RJ45 CCTV Via Twisted Pairs
