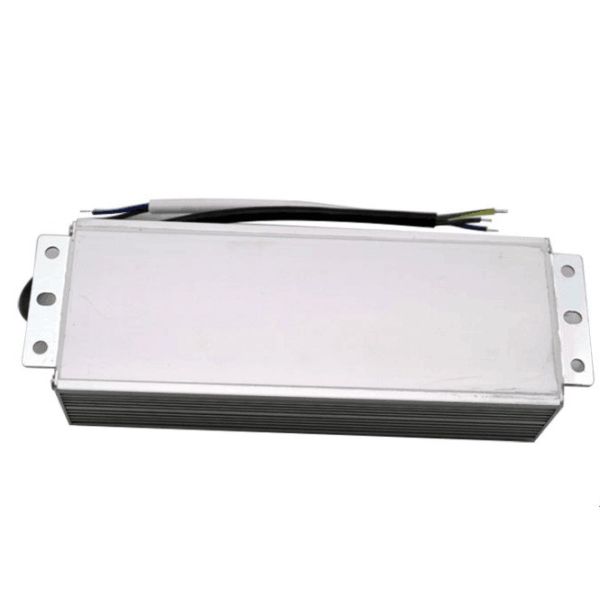

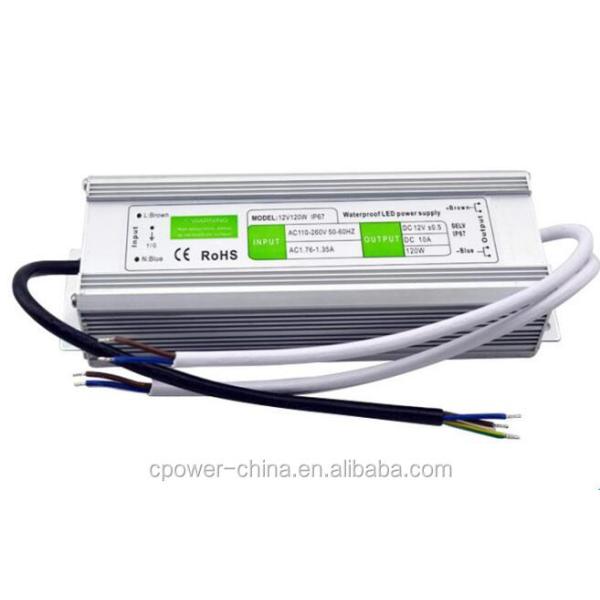

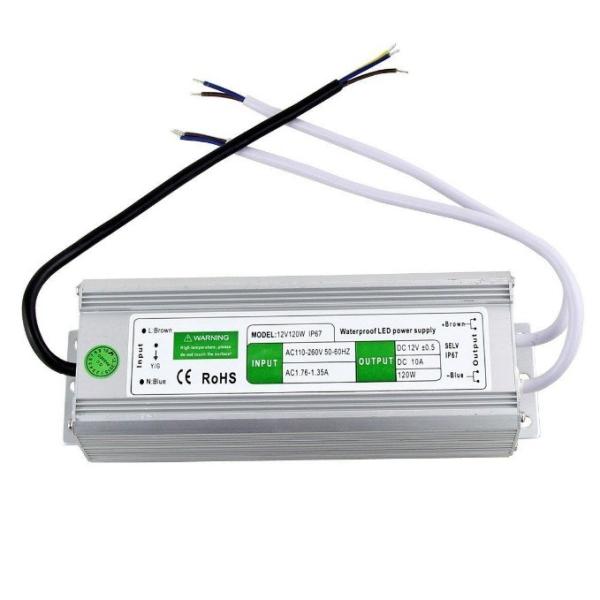

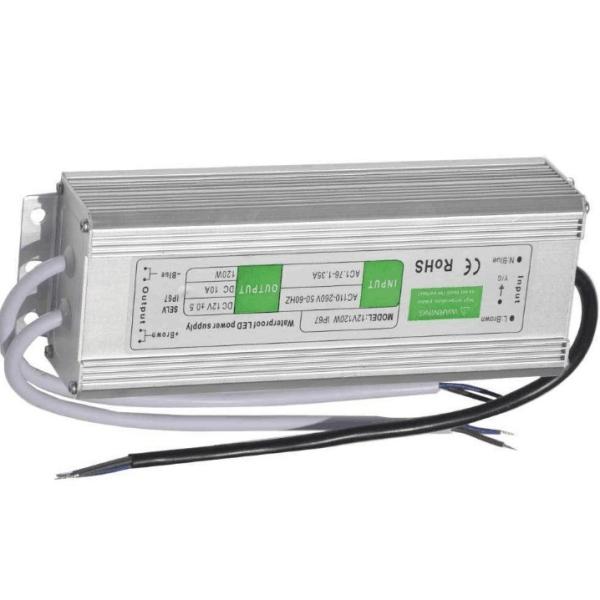

IP67 Outdoor Transformer Power Supply Adapter 120W 150W for LED Driver AC/DC12V 110-260V
IP67 Outdoor Transformer Power Supply Adapter 120W 150W for LED Driver AC/DC12V 110-260V
IP67 Outdoor Transformer Power Supply Adapter 120W 150W for LED Driver AC/DC12V 110-260V
IP67 Outdoor Transformer Power Supply Adapter 120W 150W for LED Driver AC/DC12V 110-260V
IP67 Outdoor Transformer Power Supply Adapter 120W 150W for LED Driver AC/DC12V 110-260V
IP67 Outdoor Transformer Power Supply Adapter 120W 150W for LED Driver AC/DC12V 110-260V
IP67 Outdoor Transformer Power Supply Adapter 120W 150W for LED Driver AC/DC12V 110-260V
IP67 Outdoor Transformer Power Supply Adapter 120W 150W for LED Driver AC/DC12V 110-260V
Specifications
Place of Origin :
Guangdong, China
Output Type :
Single
Input Voltage :
110v/220v
Output Voltage :
12V
Application :
LED Lighting
Certification :
CE ROHS
Warranty :
3 Years
Product Name :
Waterproof LED power supply
Type :
Constant Voltage
Protection :
Short Circuit
Power :
120w
Efficiency :
86%
Brand :
C-Power
MOQ :
10 pieces
Price :
$10.90/pieces 10-499 pieces
Description
Product Description

Output Voltage: DC 12V,DC 24V

Material: Aluminum

IP Grade: IP67 Waterproof

Working Temperature:-45 to 49degree

Output

DC Voltage

12V

24V

Rated Current

10A

5A

Current Range

0~10A

0~5A

Rated Power

120W

120W

Ripple&Noise

120Vp-p

150Vp-p

Set up,Rise time

500ms, 20ms / 230VAC

Input

Voltage Range

170~265VAC 47~62Hz

Efficiency

84%

85%

Ac Current

0.5A/230VAC

Leakage Current

0.25mA / 240VAC

Inrush Current

Cold Start <40A at 230VAC

Protection

Over Current

110~140% rated output power

Protection Type

Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

Hiccup mode, recovers automatically after fault condition is removed

Environment

Working Temp&Humidity

-30-60°C 20-90% RH

Storage Temp&Humidity

-40-80°C 10-90%RH

Safety&EMC

Safety Standards

IP67 Approved ,Design Refer to: EN60950

Withstand Voltage

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P:>100M Ohms / 500VDC

EMC Emission

Compliance to EN55022 (CISPR22) Class B,EN61000-3-2 Class A, EN61000-3-3

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, Criteria A

IP67 Outdoor Transformer Power Supply Adapter 120W 150W for LED Driver AC/DC12V 110-260V

Special Note
This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws.
Professional Installation of qualified electrician is highly recommended.
Note:
1.This is a DC12V or DC 24V (your choose)Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc.
2.Safety design with shortage protection, overload protection and auto voltage switching.
3.Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting 3.without flickering light & ensue the life span of your LED.
4.Full range of current output is possible for LED lighting with dimmable function.
About Calculate Method:
If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max led Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m,
So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m
Special Note:
This Power Supply Unit "DOES NOT" come with installation instruction, on/off switch, or screws.
Professional Installation of qualified electrician is highly recommended.
