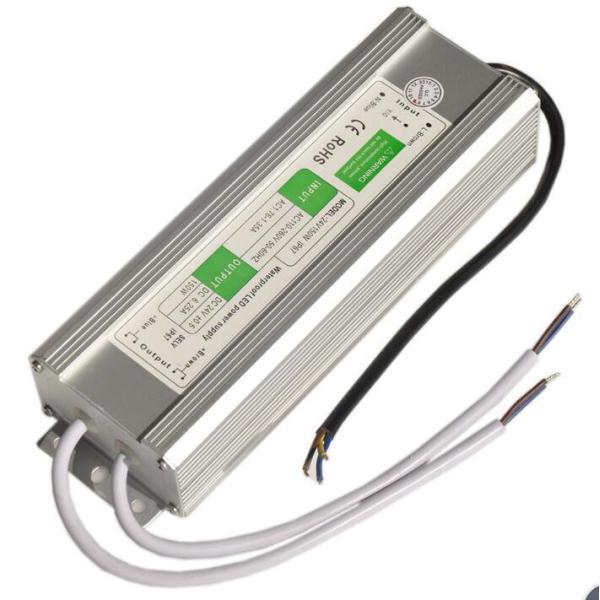

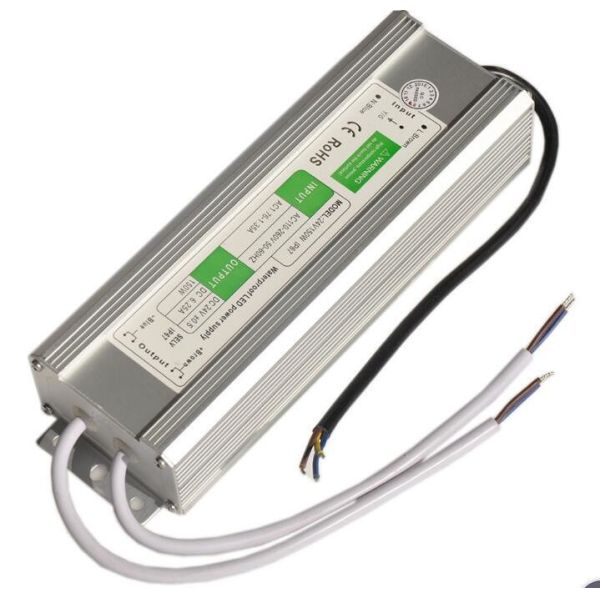

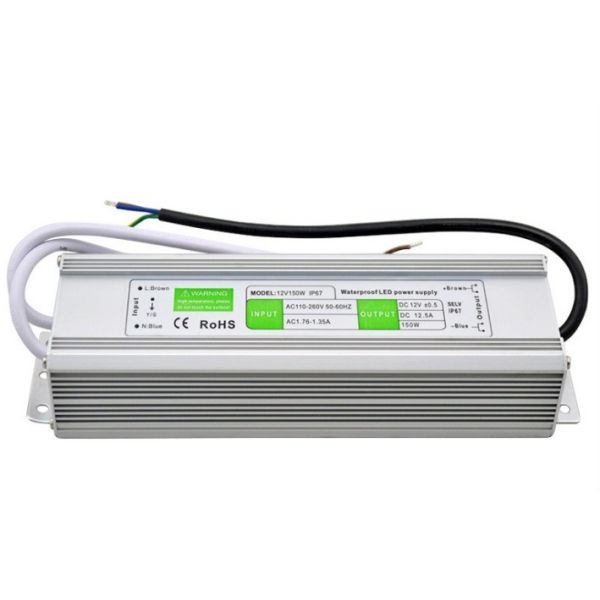

DC 12V 24V Waterproof IP67 65 66 LED Driver Power Supply Transformer 15w-150w for LED lamp light
DC 12V 24V Waterproof IP67 65 66 LED Driver Power Supply Transformer 15w-150w for LED lamp light
DC 12V 24V Waterproof IP67 65 66 LED Driver Power Supply Transformer 15w-150w for LED lamp light
DC 12V 24V Waterproof IP67 65 66 LED Driver Power Supply Transformer 15w-150w for LED lamp light
DC 12V 24V Waterproof IP67 65 66 LED Driver Power Supply Transformer 15w-150w for LED lamp light
DC 12V 24V Waterproof IP67 65 66 LED Driver Power Supply Transformer 15w-150w for LED lamp light
Specifications
Place of Origin :
Guangdong, China
Brand Name :
C-Power
Output Type :
Single
Input Voltage :
100~240v
Output Voltage :
12V
Output Frequency :
50/60hz
Output Current :
12a
Application :
LED Lighting
Certification :
CE
Warranty :
3 Years
Product Name :
Led Drive
Protection :
Over-voltage
Power :
150w
Efficiency :
86%
Type :
Constant Voltage
Name :
Waterproof LED Power supply 150w
Output voltage :
24vdc
MOQ :
10 pieces
Price :
$12.20/pieces 10-499 pieces
Description
Product Description

Specification:
Output Voltage: DC 12V,DC 24V
Material: Aluminum
IP Grade: IP67 Waterproof
Working Temperature:-45 to 49degree

Output Voltage: DC 12V,DC 24V

Material: Aluminum

IP Grade: IP67 Waterproof

Working Temperature:-45 to 49degree

Output

DC Voltage

12V

24V

Rated Current

12.5A

6.25A

Current Range

0~12A

0~6A

Rated Power

150W

150W

Ripple&Noise

120Vp-p

150Vp-p

Set up,Rise time

500ms, 20ms / 230VAC

Input

Voltage Range

170~265VAC 47~62Hz

Efficiency

84%

85%

Ac Current

0.5A/230VAC

Leakage Current

0.25mA / 240VAC

Inrush Current

Cold Start <40A at 230VAC

Protection

Over Current

110~140% rated output power

Protection Type

Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

Hiccup mode, recovers automatically after fault condition is removed

Environment

Working Temp&Humidity

-30-60°C 20-90% RH

Storage Temp&Humidity

-40-80°C 10-90%RH

Safety&EMC

Safety Standards

IP67 Approved ,Design Refer to: EN60950

Withstand Voltage

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P:>100M Ohms / 500VDC

EMC Emission

Compliance to EN55022 (CISPR22) Class B,EN61000-3-2 Class A, EN61000-3-3

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, Criteria A
DC 12V 24V Waterproof IP67 65 66 LED Driver Power Supply Transformer 15w-150w for LED lamp light
Special Note
This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws.
Professional Installation of qualified electrician is highly recommended.
Note:
1.This is a DC12V or DC 24V (your choose)Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc.
2.Safety design with shortage protection, overload protection and auto voltage switching.
3.Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting 3.without flickering light & ensue the life span of your LED.
4.Full range of current output is possible for LED lighting with dimmable function.
About Calculate Method:
If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max led Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m,
So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m
Special Note:
This Power Supply Unit "DOES NOT" come with installation instruction, on/off switch, or screws.
Professional Installation of qualified electrician is highly recommended.
