Industrial Grade 360W 32V DC 12 Volt Power Supply with 30A Output Current by C-Power
Industrial Grade 360W 32V DC 12 Volt Power Supply with 30A Output Current by C-Power
Industrial Grade 360W 32V DC 12 Volt Power Supply with 30A Output Current by C-Power
Industrial Grade 360W 32V DC 12 Volt Power Supply with 30A Output Current by C-Power
Industrial Grade 360W 32V DC 12 Volt Power Supply with 30A Output Current by C-Power
Industrial Grade 360W 32V DC 12 Volt Power Supply with 30A Output Current by C-Power
Specifications
Place of Origin :
Guangdong, China
Brand Name :
C-Power
Model Number :
CP-36012S
Output Power :
301 - 400W
Output Type :
Single
Input Voltage :
220V
Output Voltage :
12V
Output Frequency :
50/60Hz
Output Current :
30A
Application :
LED Lighting
Certification :
CE
Warranty :
3 Years
Product Name :
32v dc power supply 12v dc power supply
Type :
Constant Voltage
Protection :
Over-voltage
Efficiency :
82%
Name :
12 volt 30 amp power supply
Brand :
C-Power
Power :
360W
Packaging Details :
Selling Units: Multiple of 30
Package size per batch: 51X25X42 cm
Gross weight per batch: 28.0 KG
Package Type: standard paper carton 30pcs/ctn
Port :
Shenzhen
Supply Ability :
888888 Piece/Pieces per Month
Price :
$7.80 - $8.50/pieces
Description

12 volt 30 amp power supply

Feature

1.Universal AC input / full range
2.Input Frequency 47-63Hz
3.low products cost, high quality level
4.100% aging test
5.AC input Voltage range: 110/220VAC±20%, Selected by switch
6. Short circuit / Overload Protection
7. Soft-start current , reduce the AC input Inrush
8. Installed with EMI filter, minimun wave
9. Small size, light weight, long life , high efficiency

Model

CP-360-12

Output

DC output voltage

12V

Output voltage tolerance

±1%

Rated output current

30A

Output current

0~30A

Output power

360W

Ripple and noise

80mVp-p

DC adjustable range

±10%

Setup rise hold up time

50ms

Input

Input voltage range

85~132VAC 170~264VAC 47~63Hz, 240~370VDC

AC input current

6.5A/115V 4A/230V

Efficiency

82%

AC inrush current

Cold start current 25A/115V 50A/230V

Leakage current

<3.5mA/240VAC

Protection characteristic

Over load protection

105%~135%rated output power start the over load protection

Protection mode : cut off the output,auto-recovery

Over-voltage protection

115%-135% cut off the output,auto-recovery

Over-temp protection

Rectifier≥80°Ccut off the output ,auto-recovery

Fan ON/OFF control

≥55°C Fan start ,≤45°CFan off

Environment

Working temperature

-10°C~+60°C;20%~90%RH(please refer to the Load deduction curve)

Security

Withstand voltage

Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC

Insulation resistance

Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC

Industrial Grade 360W 32V DC 12 Volt Power Supply with 30A Output Current by C-PowerIndustrial Grade 360W 32V DC 12 Volt Power Supply with 30A Output Current by C-PowerIndustrial Grade 360W 32V DC 12 Volt Power Supply with 30A Output Current by C-PowerIndustrial Grade 360W 32V DC 12 Volt Power Supply with 30A Output Current by C-Power

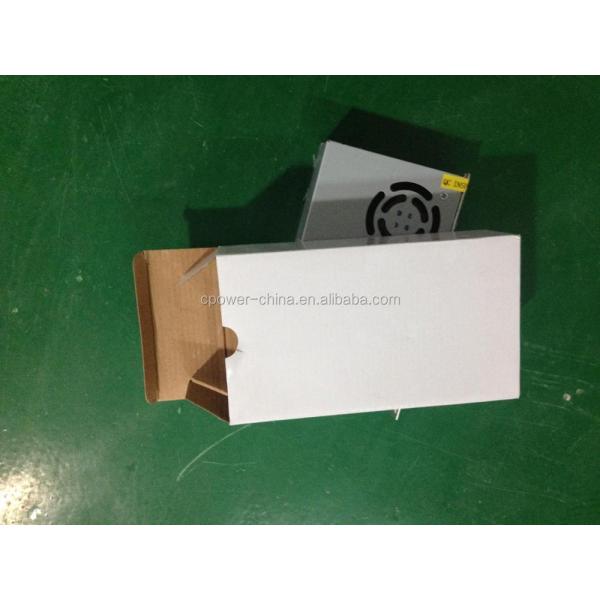

Packaging & Shipping

Industrial Grade 360W 32V DC 12 Volt Power Supply with 30A Output Current by C-Power

Our Services

Industrial Grade 360W 32V DC 12 Volt Power Supply with 30A Output Current by C-Power

1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation 4,High manufacturing capacity

5.OEM/ODM
