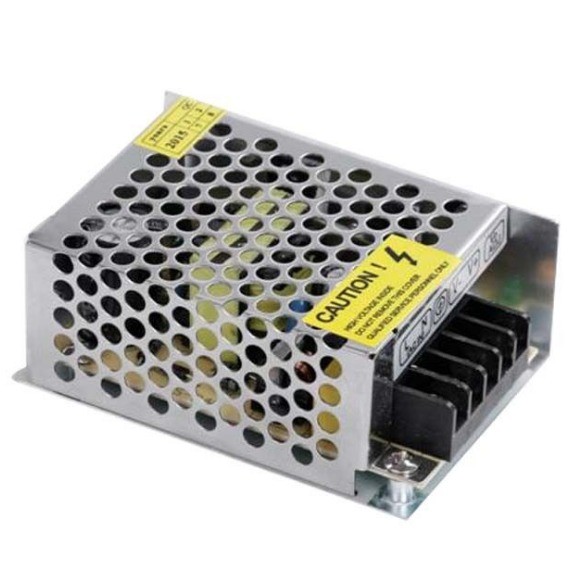

2.1amp Current Constant Voltage 12V DC LED Power Supply for Switching Applications
2.1amp Current Constant Voltage 12V DC LED Power Supply for Switching Applications
2.1amp Current Constant Voltage 12V DC LED Power Supply for Switching Applications
2.1amp Current Constant Voltage 12V DC LED Power Supply for Switching Applications
2.1amp Current Constant Voltage 12V DC LED Power Supply for Switching Applications
2.1amp Current Constant Voltage 12V DC LED Power Supply for Switching Applications
Specifications
Place of Origin :
China
Brand Name :
C-Power
Model Number :
CP-24-12
Output Type :
Single
Input Voltage :
110v/220v, 220V
Output Voltage :
12V
Output Frequency :
50/60Hz
Output Current :
2.1a
Application :
CCTV Camera LED
Certification :
CE
Efficiency :
82%
Product Name :
12VDC Cctv Power supply
Current :
2.1amp
Type :
Constant Voltage
Warranty :
3 Years
Size :
84*58*38mm
color :
silver
MOQ :
5 pieces
Price :
$2.00/pieces 5-499 pieces
Description
Product Description

Feature

1.Universal AC input / full range
2.Input Frequency 47-63Hz
3.low products cost, high quality level
4.100% aging test
5.AC input Voltage range: 110/220VAC±20%, Selected by switch
6. Short circuit / Overload Protection
7. Soft-start current , reduce the AC input Inrush
8. Installed with EMI filter, minimun wave
9. Small size, light weight, long life , high efficiency

Model

S-24-12

Output

DC output voltage

12V

Output voltage tolerance

±1%

Rated output current

2A

Output current

0~2A

Output power

24W

Ripple and noise

80mVp-p

DC adjustable range

±10%

Setup rise hold up time

50ms

Input

Input voltage range

85~132VAC 170~264VAC 47~63Hz, 240~370VDC

AC input current

6.5A/115V 4A/230V

Efficiency

82%

AC inrush current

Cold start current 25A/115V 50A/230V

Leakage current

<3.5mA/240VAC

Protection characteristic

Over load protection

105%~135%rated output power start the over load protection

Protection mode : cut off the output,auto-recovery

Over-voltage protection

115%-135% cut off the output,auto-recovery

Over-temp protection

Rectifier≥80°Ccut off the output ,auto-recovery

Fan ON/OFF control

≥55°C Fan start ,≤45°CFan off

Environment

Working temperature

-10°C~+60°C;20%~90%RH(please refer to the Load deduction curve)

Security

Withstand voltage

Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC

Insulation resistance

Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC
