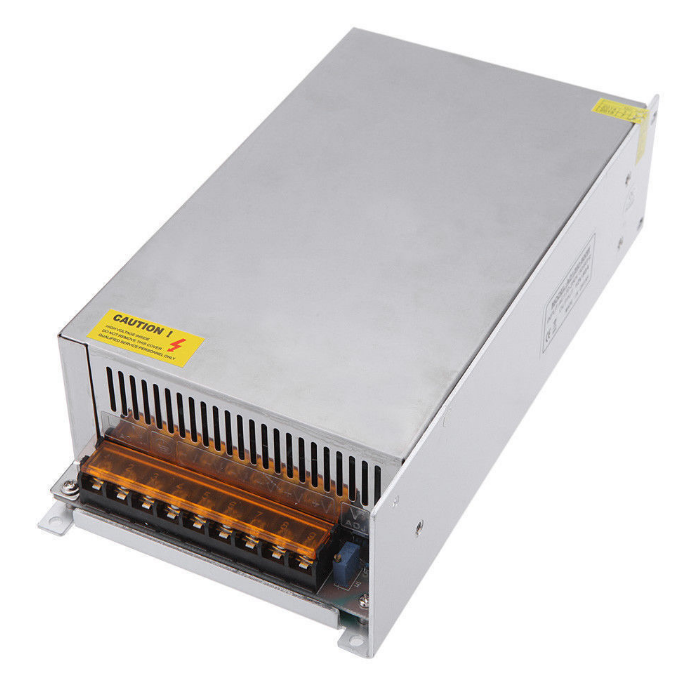

48V 1000W LED PSU Universal Regulated Switching Power Supply Output Frequency 50/60HZ
48V 1000W LED PSU Universal Regulated Switching Power Supply Output Frequency 50/60HZ
48V 1000W LED PSU Universal Regulated Switching Power Supply Output Frequency 50/60HZ
48V 1000W LED PSU Universal Regulated Switching Power Supply Output Frequency 50/60HZ
48V 1000W LED PSU Universal Regulated Switching Power Supply Output Frequency 50/60HZ
48V 1000W LED PSU Universal Regulated Switching Power Supply Output Frequency 50/60HZ
Specifications
Place of Origin :
Guangdong, China
Brand Name :
C-Power
Model Number :
CP-S48020D
Output Type :
Single
Input Voltage :
110V/220V
Output Voltage :
48V DC
Output Frequency :
50/60HZ
Output Current :
20A
Product Name :
48V DC Power supply
Certification :
CE
Application :
Electrical Appliances
Warranty :
3 Years
Protections :
Shortcuit Overtemp Overload Overtemp
Efficiency :
82%
Color :
Silver
Output :
48V DC 20A
Input :
110/220VAC
Brand :
C-Power
Packaging Details :
Standard package within retail box
MOQ :
5 pieces
Price :
$34.50/pieces 5-999 pieces
Description
Product Description

Features:

♦Universal AC input/Full range(up to 264VAC)

♦Protection: Short circuit/Overload/Over voltage/Over temperature

♦Built in PFC function, PF>0.95

♦Cooling by free air convection

♦Suitable for all kinds of LED lightings, and moving sign applications.

♦Built-in constant current limiting circuit (C.C.+C.V.mode);

♦Compliance to worldwide safety regulations for LED lightings

Product Specifications:

Input voltage

110V/220V AC

Input voltage Frequency

50/60Hz

Output voltage

48v

Output current

20a

Output power

1000W

Power Factor

typical 0.95

THD

<10%

Power Efficiency

90%

Operation temp

-40-70°C(refer to output derating curve)

Storage temp

-40-85°C

Humidity

10-90%RH.

48V 1000W LED PSU Universal Regulated Switching Power Supply Output Frequency 50/60HZ48V 1000W LED PSU Universal Regulated Switching Power Supply Output Frequency 50/60HZ48V 1000W LED PSU Universal Regulated Switching Power Supply Output Frequency 50/60HZ

Safety Specifications :

over voltage protection: 120%min

over current protection: 120%min

over protection

Short-circuit protection: automatic recovery ­

Load regulation: ±5%

Green Circuit Design

High Efficiency

Environmental:

1. Adopts integrated device design, low temperature rise, low calorific value.

2. High stability, drive stable work, output current constant, no drift.

3. High security, suitable for high humidity, high dust, strong vibration environment of use;

Chip inside integrated over-voltage, over-current, overheat protective circuit.

4. Has the maximum output power limiting function, to avoid the impact of the LED.

5. Long use life design, normal life in 60,000 hours.

6. Pass through the corresponding temperature testing, aging test, efficacy test and short

circuit testing.

7.May be based on customer demand of custom-made related size and function driver module
