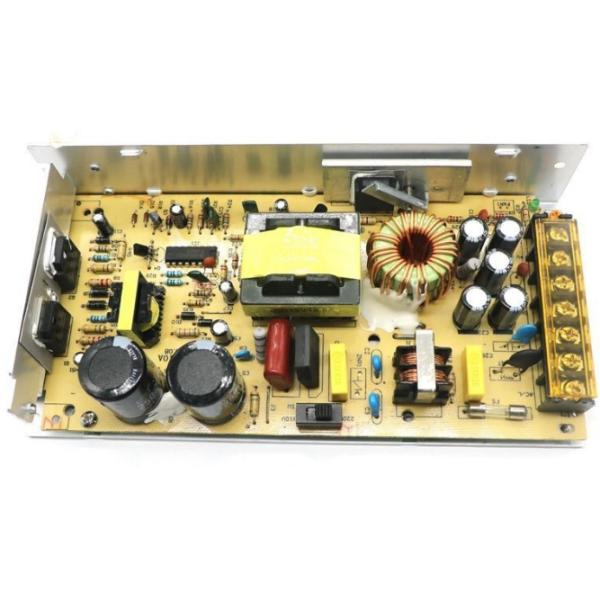

Tough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% Efficiency
Tough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% Efficiency
Tough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% Efficiency
Tough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% Efficiency
Tough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% Efficiency
Tough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% Efficiency
Specifications
Place of Origin :
Guangdong, China
Brand Name :
C-Power
Model Number :
CP-24D200W
Output Type :
Single
Input Voltage :
110V/220V AC
Output Voltage :
12V
Output Frequency :
50/60HZ
Output Current :
16A
Color :
Silver, Silver
Product Name :
Swtiching Power Supply
Warranty :
3 Years
Certification :
CE
Efficiency :
82%
Application :
Electrical Appliances
Protections :
Short Circuit Overload Overvolt
Material :
Aluminum Housing
Power :
200W
Output :
12V 16A
MOQ :
5 pieces
Price :
$6.70/pieces 5-499 pieces
Description
Product Description

♦Universal AC input/Full range(up to 264VAC)

♦Protection: Short circuit/Overload/Over voltage/Over temperature

♦Built in PFC function, PF>0.95

♦Cooling by free air convection

♦Suitable for all kinds of LED lightings, and moving sign applications.

♦Built-in constant current limiting circuit (C.C.+C.V.mode);

♦Compliance to worldwide safety regulations for LED lightings

Product Specifications:

Input voltage

110V/220V AC

Input voltage Frequency

50/60Hz

Output voltage

12v

Output current

15a

Output power

180W

Power Factor

typical 0.95

THD

<10%

Power Efficiency

90%

Operation temp

-40-70°C(refer to output derating curve)

Storage temp

-40-85°C

Humidity

10-90%RH.

Tough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% Efficiency

Tough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% EfficiencyTough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% Efficiency

Safety Specifications :

over voltage protection: 120%min

over current protection: 120%min

over protection

Short-circuit protection: automatic recovery ­

Load regulation: ±5%

Green Circuit Design

High Efficiency

Environmental:

1. Adopts integrated device design, low temperature rise, low calorific value.

2. High stability, drive stable work, output current constant, no drift.

3. High security, suitable for high humidity, high dust, strong vibration environment of use;

Chip inside integrated over-voltage, over-current, overheat protective circuit.

4. Has the maximum output power limiting function, to avoid the impact of the LED.

5. Long use life design, normal life in 60,000 hours.

6. Pass through the corresponding temperature testing, aging test, efficacy test and short

circuit testing.

7.May be based on customer demand of custom-made related size and function driver module

Packaging & Shipping

Tough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% Efficiency

Our Services

Tough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% Efficiency

1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation 4,High manufacturing capacity

5.OEM/ODM

Company Information

Tough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% EfficiencyTough Aluminum Housing 200w 12v 24v DC Power Supply Circuit Board with 82% Efficiency

Any other question?Please contact us by:

Skype:tingcctv1

Mobile:15012822472

Wechat:cpowerchina
