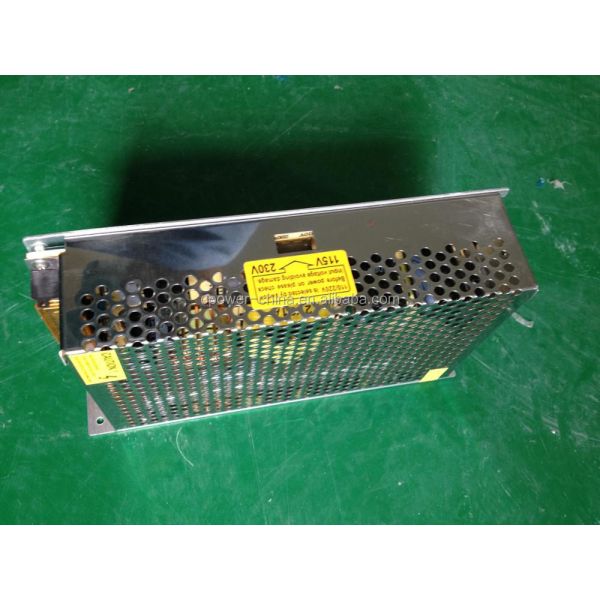

24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power
24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power
24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power
24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power
24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power
24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power
Specifications
Place of Origin :
Guangdong, China
Brand Name :
C-Power
Model Number :
CP-24024A
Output Type :
Single
Input Voltage :
110v/220v, 220V
Output Voltage :
24V
Output Frequency :
50/60Hz
Output Current :
10A
Color :
Silver, Silver
Application :
LED Lighting Electronics
Certification :
CE
Warranty :
3 Years
Product Name :
power supply 24v
Efficiency :
86%
Size :
200*111*49mm
Name :
24v 10a power supply
Brand :
C-Power
Packaging Details :
Selling Units: Multiple of 30
Package size per batch: 51X25X42 cm
Gross weight per batch: 24.0 KG
Package Type: standard paper carton 30pcs/carton
MOQ :
5 pieces
Price :
$5.00/pieces 5-499 pieces
Description
Product Description

AC DC Power supply 24v 10A

Feature

1.Universal AC input / full range
2.Input Frequency 47-63Hz
3.low products cost, high quality level
4.100% aging test
5.AC input Voltage range: 110/220VAC±20%, Selected by switch
6. Short circuit / Overload Protection
7. Soft-start current , reduce the AC input Inrush
8. Installed with EMI filter, minimun wave
9. Small size, light weight, long life , high efficiency

Model

CP-240-24c

Output

DC output voltage

24V

Output voltage tolerance

±1%

Rated output current

10A

Output current

0~10A

Output power

240W

Ripple and noise

80mVp-p

DC adjustable range

±10%

Setup rise hold up time

50ms

Input

Input voltage range

85~132VAC 170~264VAC 47~63Hz, 240~370VDC

AC input current

6.5A/115V 4A/230V

Efficiency

82%

AC inrush current

Cold start current 25A/115V 50A/230V

Leakage current

<3.5mA/240VAC

Protection characteristic

Over load protection

105%~135%rated output power start the over load protection

Protection mode : cut off the output,auto-recovery

Over-voltage protection

115%-135% cut off the output,auto-recovery

Over-temp protection

Rectifier≥80°Ccut off the output ,auto-recovery

Fan ON/OFF control

≥55°C Fan start ,≤45°CFan off

Environment

Working temperature

-10°C~+60°C;20%~90%RH(please refer to the Load deduction curve)

Security

Withstand voltage

Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC

Insulation resistance

Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC

24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power

Packaging & Shipping

24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power

Company Information

24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power

Our Services

24v Output Voltage Silver Led AC DC Power Supply for Customer Requirements by C-Power

1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation 4,High manufacturing capacity

5.OEM/ODM
