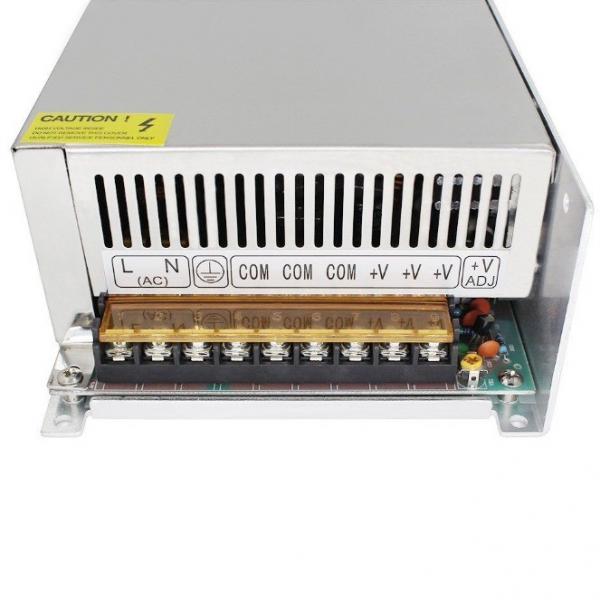

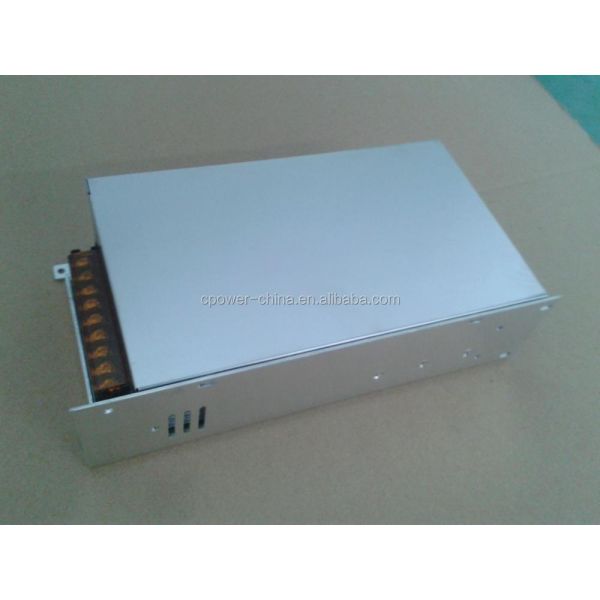

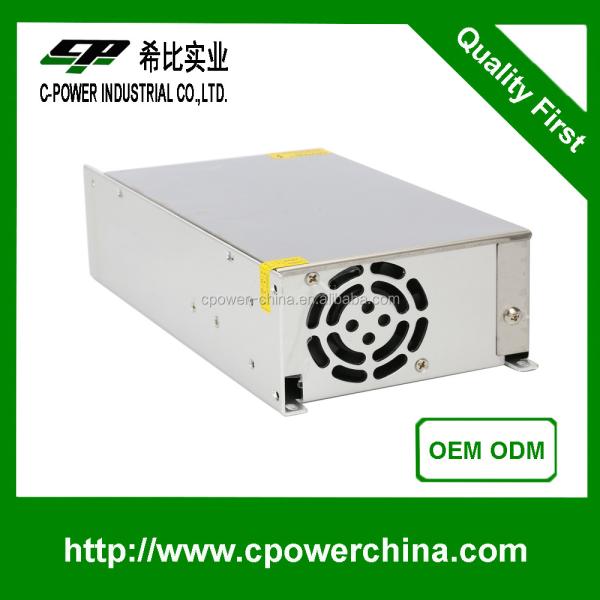

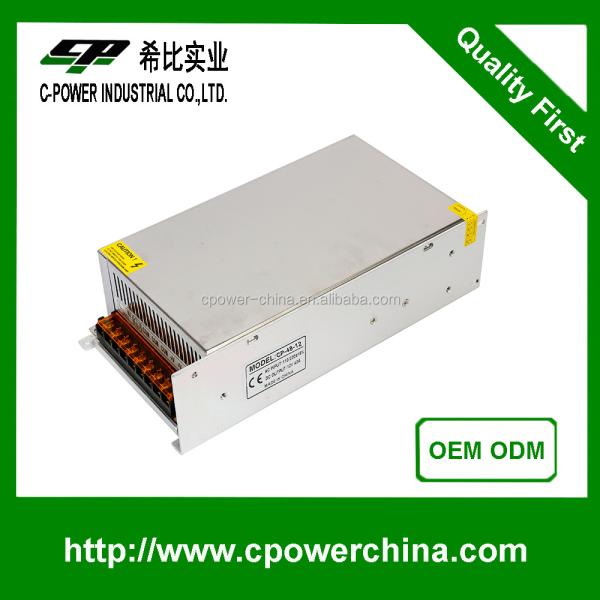

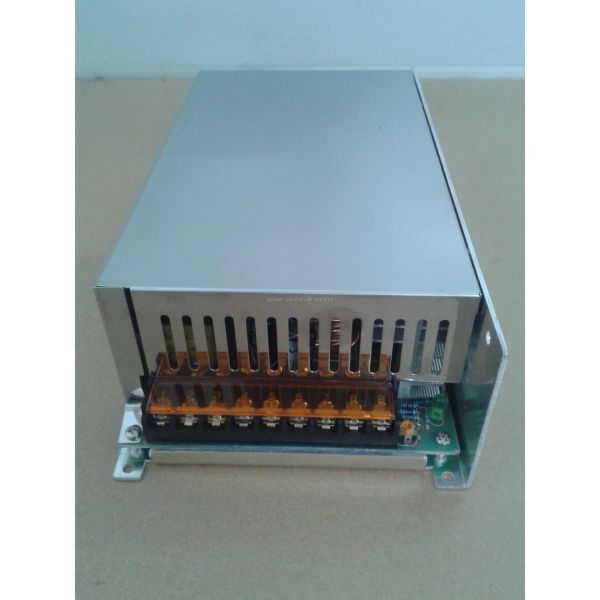

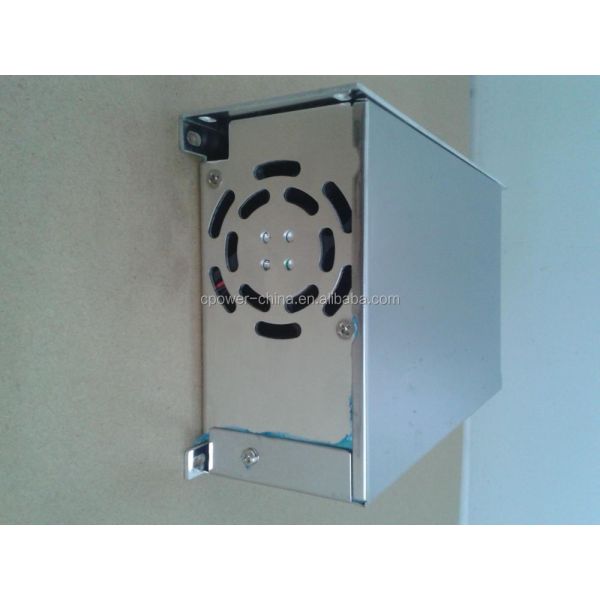

Top-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60Hz
Top-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60Hz
Top-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60Hz
Top-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60Hz
Top-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60Hz
Top-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60Hz
Specifications
Place of Origin :
Guangdong, China
Brand Name :
C-Power
Model Number :
cp-60048
Output Type :
Single
Input Voltage :
110v/220v, 220V
Output Voltage :
48V
Output Frequency :
50/60Hz
Output Current :
13A
Application :
LED Lighting
Warranty :
3 Years
Certification :
CE
Product Name :
high voltage power supply
Efficiency :
88%
Size :
240*125*65mm
Input voltage :
220v ac
Output voltage :
48v dc
Brand :
C-Power
MOQ :
5 pieces
Price :
$23.70/pieces 5-499 pieces
Description
Product Description

Feature

1.Universal AC input / full range
2.Input Frequency 47-63Hz
3.low products cost, high quality level
4.100% aging test
5.AC input Voltage range: 110/220VAC±20%, Selected by switch
6. Short circuit / Overload Protection
7. Soft-start current , reduce the AC input Inrush
8. Installed with EMI filter, minimun wave
9. Small size, light weight, long life , high efficiency

Model

CP-600-48

Output

DC output voltage

48V

Output voltage tolerance

±1%

Rated output current

13A

Output current

0~13A

Output power

600W

Ripple and noise

80mVp-p

DC adjustable range

±10%

Setup rise hold up time

50ms

Input

Input voltage range

85~132VAC 170~264VAC 47~63Hz, 240~370VDC

AC input current

6.5A/115V 4A/230V

Efficiency

82%

AC inrush current

Cold start current 25A/115V 50A/230V

Leakage current

<3.5mA/240VAC

Protection characteristic

Over load protection

105%~135%rated output power start the over load protection

Protection mode : cut off the output,auto-recovery

Over-voltage protection

115%-135% cut off the output,auto-recovery

Over-temp protection

Rectifier≥80°Ccut off the output ,auto-recovery

Fan ON/OFF control

≥55°C Fan start ,≤45°CFan off

Environment

Working temperature

-10°C~+60°C;20%~90%RH(please refer to the Load deduction curve)

Security

Withstand voltage

Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC

Insulation resistance

Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC

Top-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60HzTop-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60HzTop-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60HzTop-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60Hz

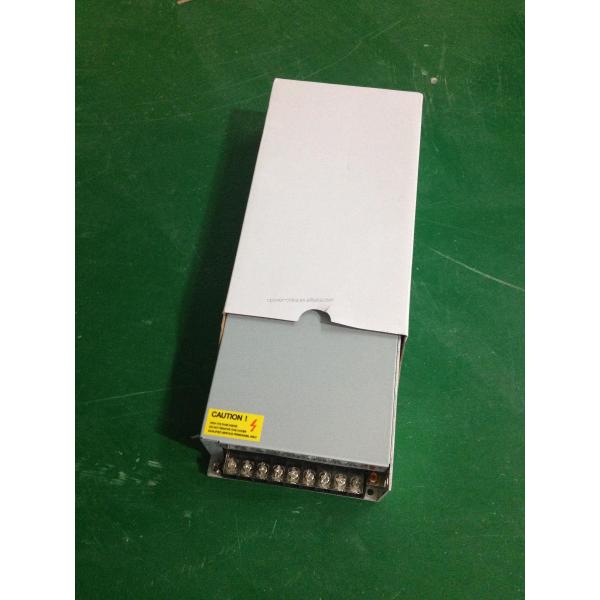

Packaging & Shipping

Top-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60Hz

Our Services

Top-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60Hz

1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation 4,High manufacturing capacity

5.OEM/ODM

Company Information

Top-10 AC DC 24V 36V 48V 600W High Voltage Power Supply with Output Frequency 50/60Hz
