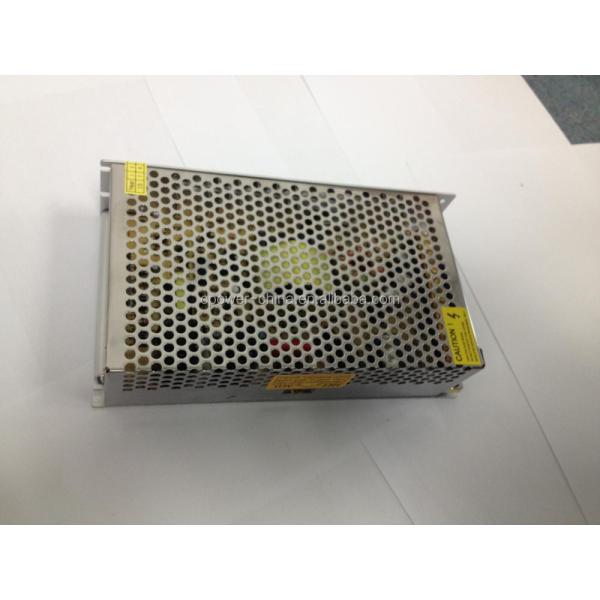

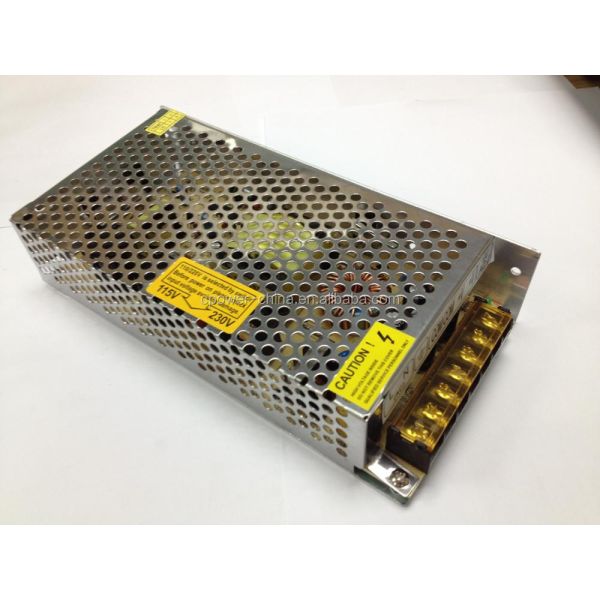

Usual Switching Power Supply 12V Output Voltage 20A Output Current 220V AC to 12V DC
Usual Switching Power Supply 12V Output Voltage 20A Output Current 220V AC to 12V DC
Usual Switching Power Supply 12V Output Voltage 20A Output Current 220V AC to 12V DC
Usual Switching Power Supply 12V Output Voltage 20A Output Current 220V AC to 12V DC
Usual Switching Power Supply 12V Output Voltage 20A Output Current 220V AC to 12V DC
Usual Switching Power Supply 12V Output Voltage 20A Output Current 220V AC to 12V DC
Specifications
Place of Origin :
Guangdong, China
Brand Name :
C-Power
Model Number :
CP-24012
Output Type :
Single
Input Voltage :
110/220v, 220V
Output Voltage :
12V
Output Frequency :
50/60Hz
Output Current :
20A
Application :
LED CCTV
Warranty :
3 YEARS
Product Name :
220v ac 12v dc power supply
Efficiency :
82%
Color :
Silver
Certification :
CE
Size :
200*111*49mm
Input :
220vac
Brand :
C-Power
Packaging Details :
White retail box+brown hard paper carton
MOQ :
5 pieces
Price :
$6.20/pieces 5-499 pieces
Description
Product Description

220v ac 12v dc power supply

Feature

1.Universal AC input / full range
2.Input Frequency 47-63Hz
3.low products cost, high quality level
4.100% aging test
5.AC input Voltage range: 110/220VAC±20%, Selected by switch
6. Short circuit / Overload Protection
7. Soft-start current , reduce the AC input Inrush
8. Installed with EMI filter, minimun wave
9. Small size, light weight, long life , high efficiency

Model

CP-240-12

Output

DC output voltage

12V

Output voltage tolerance

±1%

Rated output current

20A

Output current

0~3A

Output power

240W

Ripple and noise

80mVp-p

DC adjustable range

±10%

Setup rise hold up time

50ms

Input

Input voltage range

85~132VAC 170~264VAC 47~63Hz, 240~370VDC

AC input current

6.5A/115V 4A/230V

Efficiency

82%

AC inrush current

Cold start current 25A/115V 50A/230V

Leakage current

<3.5mA/240VAC

Protection characteristic

Over load protection

105%~135%rated output power start the over load protection

Protection mode : cut off the output,auto-recovery

Over-voltage protection

115%-135% cut off the output,auto-recovery

Over-temp protection

Rectifier≥80°Ccut off the output ,auto-recovery

Fan ON/OFF control

≥55°C Fan start ,≤45°CFan off

Environment

Working temperature

-10°C~+60°C;20%~90%RH(please refer to the Load deduction curve)

Security

Withstand voltage

Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC

Insulation resistance

Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC

Usual Switching Power Supply 12V Output Voltage 20A Output Current 220V AC to 12V DCUsual Switching Power Supply 12V Output Voltage 20A Output Current 220V AC to 12V DCUsual Switching Power Supply 12V Output Voltage 20A Output Current 220V AC to 12V DCUsual Switching Power Supply 12V Output Voltage 20A Output Current 220V AC to 12V DC

Packaging & Shipping

Usual Switching Power Supply 12V Output Voltage 20A Output Current 220V AC to 12V DC

Our Services

Usual Switching Power Supply 12V Output Voltage 20A Output Current 220V AC to 12V DC

1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation 4,High manufacturing capacity

5.OEM/ODM
